SRM-300 AE - Echo String Trimmer Shield, Gear Case, Tools Parts Diagram

String Trimmer

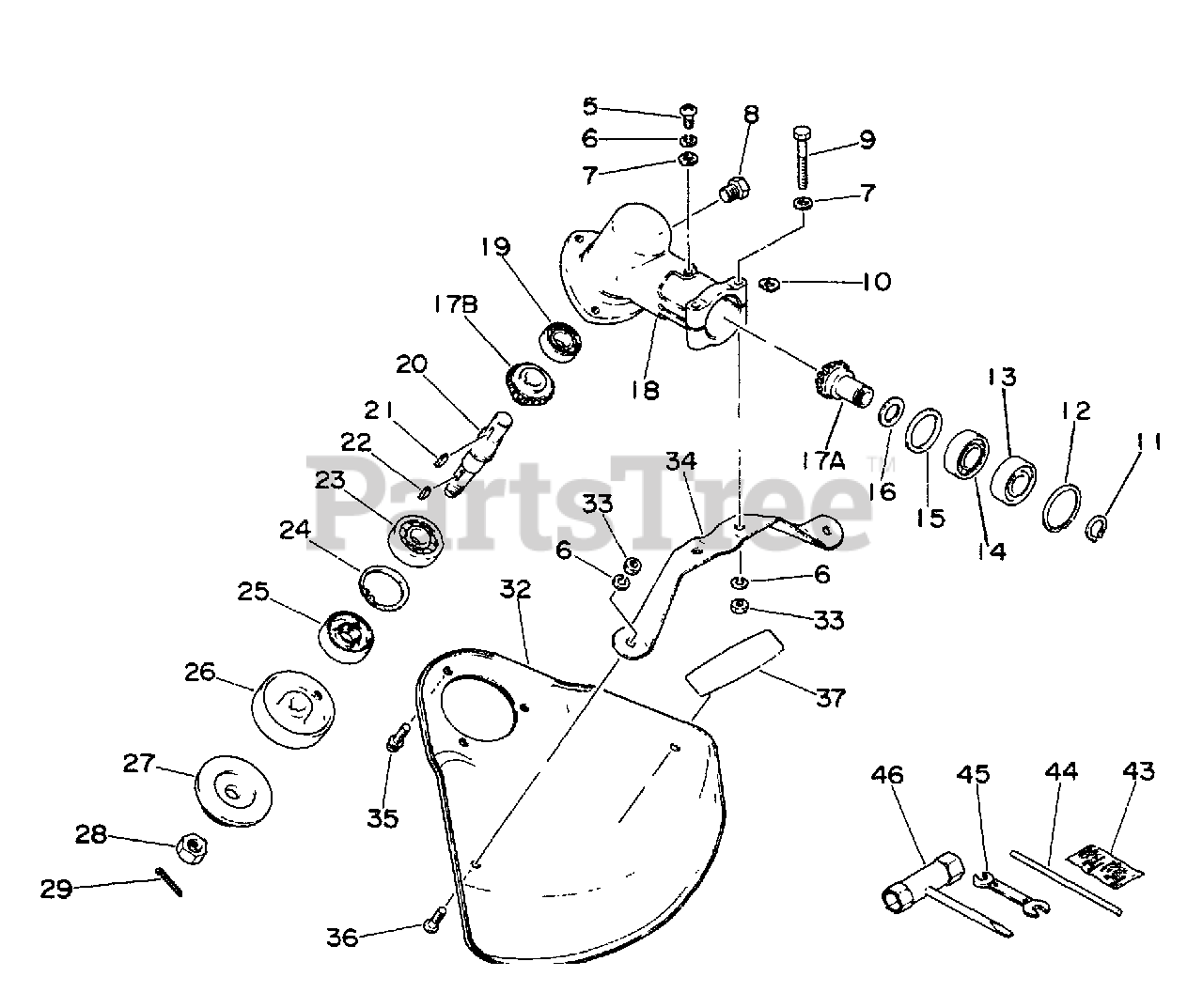

Shield, Gear Case, Tools Parts Diagram

  • Title

Echo 61040007530

GEAR CASE ASSY
(Superseded to Discontinued)

Note: Consist of 5 thru 29 and 33

$

$

Not available

5

Echo 90022005010

SCREW 5×10

$0.99

$

In Stock, Qty 7

0

6

Echo 900605-00005

WASHER, SPRING 5

$0.99

$

In Stock, Qty 9

0

7

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

8

Echo 90010008008

BOLT 8×8 SP

$0.99

$

In Stock, Qty 10

0

9

Echo 90010005040

BOLT 5×40

$0.99

$

Usually ships in 2-4 days

0

10

Echo 610239-04130

D-WASHER

$0.99

$

In Stock, Qty 20+

0

11

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 20+

0

12

Echo 90070200028

RING, SNAP 28

$1.99

$

In Stock, Qty 20+

0

13

Echo 90080106001

BEARING, BALL 6001
(Superseded to 90080206001)

$11.99

$

In Stock, only 2 left!

0

14

Echo 90080006001

BEARING, BALL 6001
(Superseded to 90080036001)

$11.99

$

In Stock, Qty 9

0

15

Echo 61031604130

WASHER

$0.99

$

Usually ships in 2-4 days

0

16

Echo 61031705330

WASHER

$0.99

$

Usually ships in 2-4 days

0

18

Echo 61041007530

CASE, GEAR
(Superseded to Discontinued)

$

$

Not available

19

Echo 90080006000

BEARING, BALL 6000

$13.99

$

In Stock, only 2 left!

0

20

Echo 61031005330

DRIVESHAFT
(Superseded to Discontinued)

$

$

Not available

21

Echo 10013101620

KEY

$3.49

$

Usually ships in 2-4 days

0

22

Echo 61032502730

KEY

$1.99

$

In Stock, only 2 left!

0

23

Echo 9403536201

BEARING, BALL - 6201 C3

$9.99

$

In Stock, only 3 left!

0

24

Echo 90070200032

RING, SNAP Ø32

$2.49

$

In Stock, only 2 left!

0

25

Echo 61041305330

SEAL, OIL
(Superseded to Discontinued)

$

$

Not available

26

Echo 61031304130

PLATE, ADAPTER - UPPER
(Superseded to Discontinued)

$

$

Not available

27

Echo C535000150

PLATE, ADAPTOR - LOWER

$10.99

$

In Stock, Qty 8

0

28

Echo 900511-00010

NUT 10

$1.99

$

In Stock, Qty 20+

0

29

Echo 900300-20022

PIN, COTTER 2×22

Note: BULK OPTION: 89850201130 - 10 PACK

$0.99

$

In Stock, Qty 14

0

32

Echo 69900007531

SHIELD
(Superseded to Discontinued)

Note: Includes items 6 and 33 thru 36

$

$

Not available

33

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

34

Echo 69901507532

BRACKET, SHIELD
(Superseded to 69901523532)

$8.49

$

Usually ships in 2-4 days

0

35

Echo 900242-05010

SCREW 5×10

$0.99

$

In Stock, Qty 20+

0

36

Echo 90022005008

SCREW 5×8

$0.99

$

In Stock, only 3 left!

0

37

Echo 89013824030

LABEL - ECHO
(Superseded to 89013844330)

$0.99

$

In Stock, Qty 5

0

43

Echo 898502-01130

PIN, COTTER 2×22 (PKG. OF 10)

$1.99

$

In Stock, only 3 left!

0

44

Echo 897518-01131

TOOL, LOCKING 5×120 MM

$

$

Not available

45

Echo 895112-00330

SPANNER 8×10

$0.99

$

In Stock, Qty 6

0

46

Echo 89541007930

T-WRENCH

$12.99

$

Usually ships in 2-4 days

0

Echo 69500121430

BLADE, 25 MM ID - 10"

Note: OPTIONAL

$

$

Currently unavailable

Echo 69600121430

BLADE, 25 MM ID - 8 TOOTH -- 8"

Note: OPTIONAL

$

$

Not available
