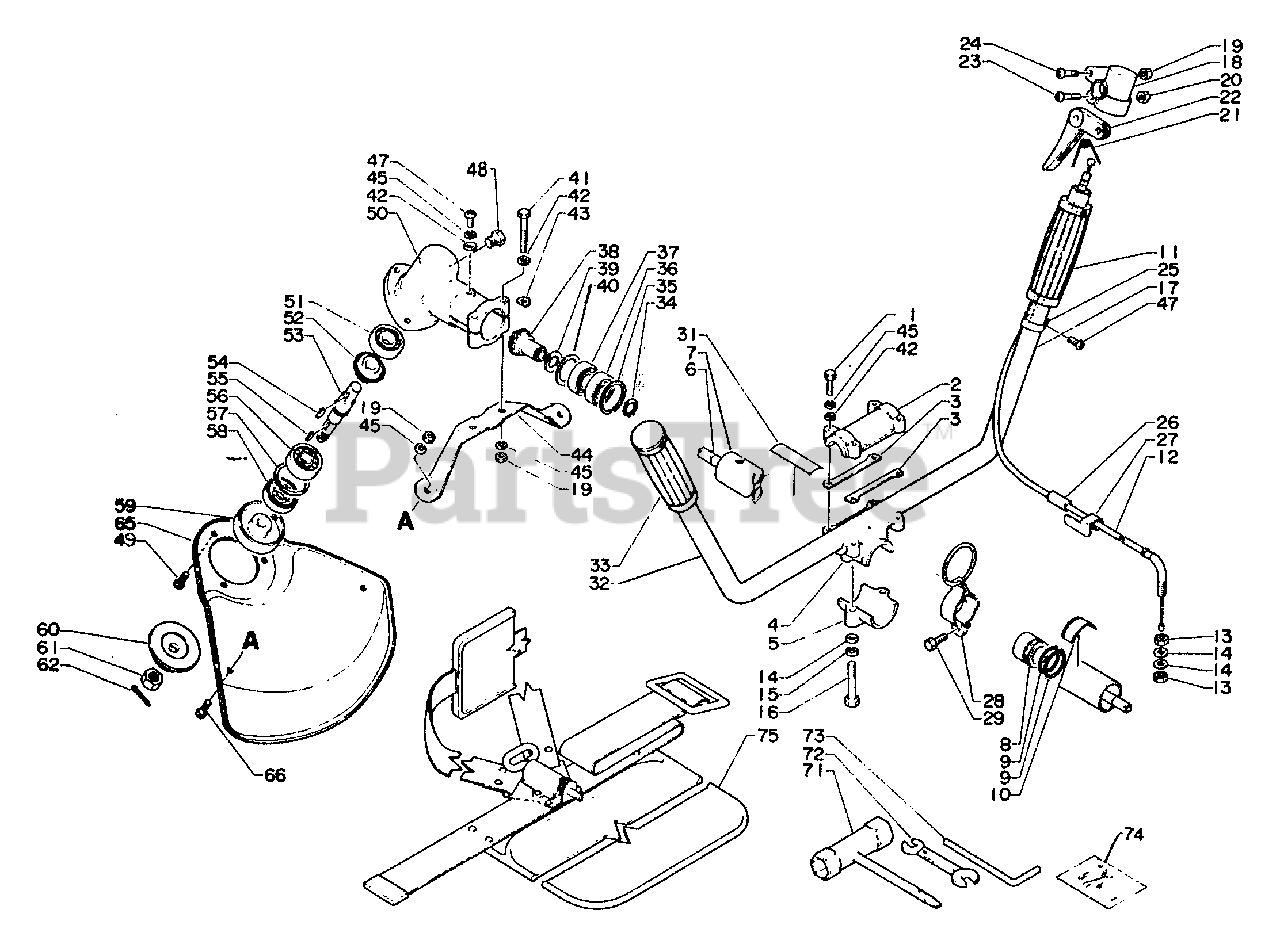

SRM-300 E - Echo String Trimmer Driveshaft, Gear Case, Handles, Harness, Shield, Throttle, Tools Parts Diagram

String Trimmer

Driveshaft, Gear Case, Handles, Harness, Shield, Throttle, Tools Parts Diagram

  • Title

Echo 35130104130

BRACKET ASSY, HANDLE

Note: Consists of 1 thru 5, 14 thru 16 and 42, 45

$37.99

$

Usually ships in 2-4 days

0

1

Echo 90010005025

BOLT - 5×25

$3.49

$

Usually ships in 2-4 days

0

2

UNKNOWN

$

$

Not available

3

Echo 35131904130

WASHER

$0.99

$

Usually ships in 2-4 days

0

4

UNKNOWN

$

$

Not available

5

UNKNOWN

$

$

Not available

6

Echo 61001104130

DRIVESHAFT
(Superseded to Discontinued)

$

$

Not available

7

Echo 61020606630

MAIN PIPE ASSY
(Superseded to 61020609130)

Note: Includes 8 and 9

$

$

Not available

8

Echo 61010504130

STOPPER
(Superseded to Discontinued)

$

$

Not available

9

Echo 90072000022

O-RING 22

$2.49

$

Usually ships in 2-4 days

0

10

Echo 890152-04930

LABEL - ALIGNMENT

$0.99

$

In Stock, Qty 11

0

11

Echo 35131504230

GRIP, HANDLE
(Superseded to 35131527930)

$6.49

$

In Stock, only 2 left!

0

12

Echo 17800209130

CABLE, THROTTLE
(Superseded to 17800209131)

$

$

Not available

13

Echo 900502-00006

NUT M6

$0.99

$

In Stock, Qty 12

0

14

Echo 90060000006

WASHER 6.5×11.5×0.8

$0.99

$

In Stock, Qty 20+

0

15

Echo 90060500006

WASHER, SPRING 6

$0.99

$

In Stock, Qty 15

0

16

Echo 90010006030

BOLT - 6×30
(Superseded to Discontinued)

$

$

Not available

17

Echo 35101005530

HANDLE

$33.99

$

Usually ships in 2-4 days

0

18

Echo 17802406130

BRACKET, TRIGGER

$6.49

$

Usually ships in 2-4 days

0

19

Echo 433020-00830

LOCKNUT - 5
(Superseded to 90056000005)

$1.49

$

In Stock, Qty 14

0

20

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

21

Echo 17804305230

SPRING

$0.99

$

In Stock, only 3 left!

0

22

Echo 17801005330

TRIGGER, THROTTLE
(Superseded to Discontinued)

$

$

Not available

23

Echo 90022005025

SCREW 5×25

$0.99

$

In Stock, Qty 19

0

24

Echo 17811005330

SCREW

$0.99

$

In Stock, Qty 11

0

25

Echo 17810605330

CLAMP

$5.99

$

Usually ships in 2-4 days

0

26

Echo 17812704930

TUBE
(Superseded to Discontinued)

$

$

Not available

27

Echo 17811104930

BRACKET

$1.99

$

Usually ships in 2-4 days

0

28

Echo 30120005230

HANGER KIT
(Superseded to P021012660)

$6.99

$

In Stock, only 3 left!

0

29

Echo 90010005012

BOLT 5×12

$0.99

$

Usually ships in 2-4 days

0

31

Echo 89016007530

LABEL
(Superseded to Discontinued)

$

$

Not available

32

Echo 351210-05530

HANDLE, LEFT

$

$

Not available

33

Echo 351311-02330

GRIP, HANDLE

$7.49

$

In Stock, only 1 left!

0

34

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 20+

0

35

Echo 90070200028

RING, SNAP 28

$1.99

$

In Stock, Qty 20+

0

36

Echo 90080106001

BEARING, BALL 6001
(Superseded to 90080206001)

$11.99

$

In Stock, only 2 left!

0

37

Echo 90080006001

BEARING, BALL 6001
(Superseded to 90080036001)

$11.99

$

In Stock, Qty 9

0

38

Echo 61030005730

GEAR SET
(Superseded to 61030005331)

$

$

Not available

52

Echo 61030005730

GEAR SET
(Superseded to 61030005331)

$

$

Not available

39

Echo 61031705330

WASHER

$0.99

$

Usually ships in 2-4 days

0

40

Echo 61031604130

WASHER

$0.99

$

Usually ships in 2-4 days

0

41

Echo 90010005040

BOLT 5×40

$0.99

$

In Stock, only 2 left!

0

42

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

43

Echo 610239-04130

D-WASHER

$0.99

$

In Stock, Qty 20+

0

44

Echo 69901507532

BRACKET, SHIELD
(Superseded to 69901523532)

$8.49

$

Usually ships in 2-4 days

0

45

Echo 900605-00005

WASHER, SPRING 5

$0.99

$

In Stock, Qty 9

0

47

Echo 90022005010

SCREW 5×10

$0.99

$

In Stock, Qty 7

0

48

Echo 90010008008

BOLT 8×8 SP

$0.99

$

In Stock, Qty 10

0

49

Echo 900242-05010

SCREW 5×10

$0.99

$

In Stock, Qty 20+

0

50

Echo 61041007530

CASE, GEAR
(Superseded to Discontinued)

$

$

Not available

51

Echo 90080036000

BEARING, BALL 6000

$14.99

$

Usually ships in 2-4 days

0

53

Echo 61031005330

DRIVESHAFT
(Superseded to Discontinued)

$

$

Not available

54

Echo 10013101620

KEY

$3.49

$

Usually ships in 2-4 days

0

55

Echo 61032502730

KEY

$1.99

$

In Stock, only 2 left!

0

56

Echo 9403536201

BEARING, BALL - 6201 C3

$9.99

$

In Stock, only 3 left!

0

57

Echo 90070200032

RING, SNAP Ø32

$2.49

$

In Stock, only 2 left!

0

58

Echo 61041305330

SEAL, OIL
(Superseded to Discontinued)

$

$

Not available

59

Echo 61031304130

PLATE, ADAPTER - UPPER
(Superseded to Discontinued)

$

$

Not available

60

Echo C535000150

PLATE, ADAPTOR - LOWER

$10.99

$

In Stock, Qty 8

0

61

Echo 900511-00010

NUT 10

$1.99

$

In Stock, Qty 20+

0

62

Echo 900300-20022

PIN, COTTER 2×22

Note: BULK OPTION: 89850201130 - 10 PACK

$0.99

$

In Stock, Qty 14

0

65

Echo 69901008930

SHIELD
(Superseded to 69901009130)

$17.99

$

In Stock, only 1 left!

0

66

Echo 90022005008

SCREW 5×8

$0.99

$

In Stock, only 3 left!

0

71

Echo 89541007930

T-WRENCH

$12.99

$

Usually ships in 2-4 days

0

72

Echo 895112-00330

SPANNER 8×10

$0.99

$

In Stock, Qty 6

0

73

Echo 897518-01131

TOOL, LOCKING 5×120 MM

$

$

Not available

74

Echo 898502-01130

PIN, COTTER 2×22 (PKG. OF 10)

$1.99

$

In Stock, only 3 left!

0

75

Echo 30100105330

SHOULDER STRAP ASSY
(Superseded to 30100048930)

$25.99

$

In Stock, only 2 left!

0
