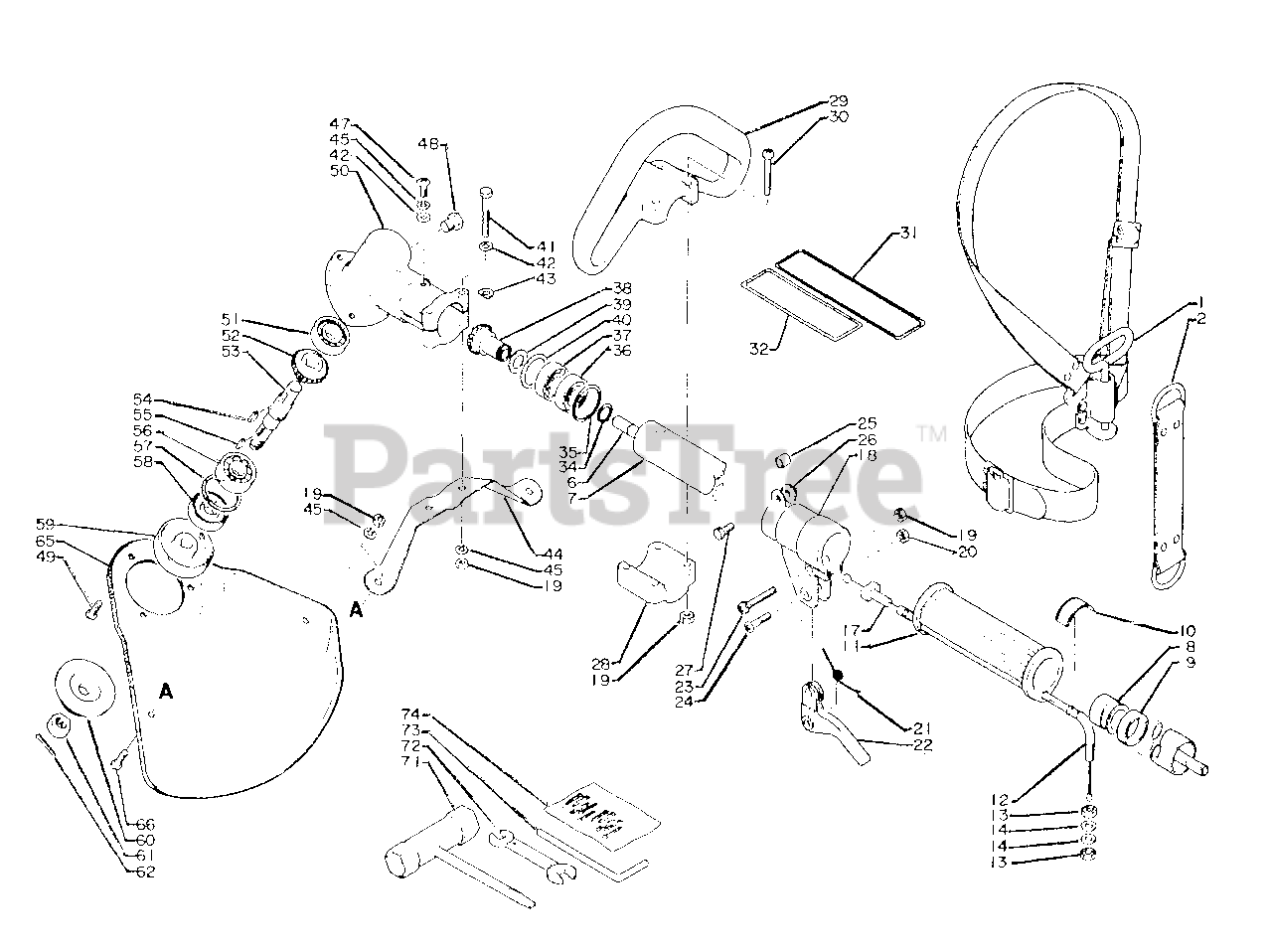

SRM-300 E1 - Echo String Trimmer Driveshaft, Gear Case, Handles, Harness, Shield, Throttle, Tools Parts Diagram

String Trimmer

Driveshaft, Gear Case, Handles, Harness, Shield, Throttle, Tools Parts Diagram

  • Title

1

Echo 30100007530

SHOULDER STRAP ASSY
(Superseded to 30100024330)

Note: Includes items 2

$82.99

$

Usually ships in 2-4 days

0

2

Echo 30130507530

STRAP
(Superseded to Discontinued)

$

$

Not available

6

Echo 61001104130

DRIVESHAFT
(Superseded to Discontinued)

$

$

Not available

7

Echo 61020609130

MAIN PIPE ASSY
(Superseded to Discontinued)

Note: Includes items 8 & 9

$

$

Not available

8

Echo 61010504930

STOPPER

$27.99

$

Usually ships in 2-4 days

0

9

Echo 61011204930

O-RING

$3.99

$

Usually ships in 2-4 days

0

10

Echo 89015204930

LABEL - ALIGNMENT

$0.99

$

In Stock, Qty 9

0

11

Echo 35101205630

GRIP
(Superseded to Discontinued)

$

$

Not available

12

Echo 17800109130

CABLE, THROTTLE
(Superseded to Discontinued)

$

$

Not available

13

Echo 90050000006

LOCKNUT - 6

$0.99

$

In Stock, Qty 20+

0

14

Echo 90060000006

WASHER - 6

$0.99

$

In Stock, Qty 20+

0

17

Echo 17804805630

GUIDE, CABLE

$1.99

$

In Stock, Qty 20+

0

18

Echo 17802406830

BRACKET, TRIGGER
(Superseded to Discontinued)

$

$

Not available

19

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

20

Echo 43302000830

LOCKNUT - 5
(Superseded to 90056000005)

$1.49

$

In Stock, Qty 20+

0

21

Echo 17804306930

SPRING, TRIGGER

$0.99

$

In Stock, Qty 20+

0

22

Echo 17801005630

TRIGGER, THROTTLE
(Superseded to 17801005631)

$1.49

$

In Stock, Qty 20+

0

23

Echo 90024205030

SCREW - 5X30

$0.99

$

In Stock, only 3 left!

0

24

Echo 17811005330

SCREW - 5X30

$0.99

$

In Stock, Qty 16

0

25

Echo 69901203330

SPACER

$1.49

$

In Stock, Qty 16

0

26

Echo 30120707530

HOOK

$5.99

$

Usually ships in 2-4 days

0

27

Echo 90010005018

BOLT - 5X18

$0.99

$

In Stock, Qty 11

0

28

Echo 35122506930

BRACKET, HANDLE

$6.49

$

In Stock, only 2 left!

0

29

Echo 35120106930

LOOP HANDLE ASSY
(Superseded to Discontinued)

Note: Includes items 19, 28 and 30

$

$

Not available

30

Echo 90024205035

SCREW - 5X35

$0.99

$

In Stock, Qty 20+

0

31

Echo 89016020330

LABEL - CAUTION
(Superseded to 89016024230)

$3.99

$

Usually ships in 2-4 days

0

32

Echo 89017709130

LABEL - CAUTION

$1.49

$

Usually ships in 2-4 days

0

34

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 15

0

35

Echo 90070200028

RING, RETAINING - 28

$1.49

$

In Stock, Qty 18

0

36

Echo 90080106001

BEARING, BALL - 6001
(Superseded to 90080206001)

$9.99

$

In Stock, only 2 left!

0

37

Echo 90080006001

BEARING, BALL - 6001
(Superseded to 90080036001)

$9.49

$

In Stock, Qty 5

0

38

Echo 61030005331

GEAR SET
(Superseded to Discontinued)

$

$

Not available

52

Echo 61030005331

GEAR SET
(Superseded to Discontinued)

$

$

Not available

39

Echo 61031705330

WASHER

$0.99

$

Usually ships in 2-4 days

0

40

Echo 61031604130

WASHER

$0.99

$

Usually ships in 2-4 days

0

41

Echo 90010005040

BOLT - 5X40

$0.99

$

In Stock, Qty 7

0

42

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

43

Echo 61023904130

SHIM

$0.99

$

In Stock, Qty 7

0

44

Echo 69901507532

BRACKET, SHIELD
(Superseded to 69901523532)

$7.49

$

Usually ships in 2-4 days

0

45

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, only 4 left!

0

47

Echo 90022005010

SCREW - 5X10

$0.99

$

In Stock, Qty 10

0

48

Echo 90010008008

BOLT - 8X8

$0.99

$

In Stock, Qty 12

0

49

Echo 90024205010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

50

Echo 61041007530

CASE, GEAR
(Superseded to Discontinued)

$

$

Not available

51

Echo 90080036000

BEARING, BALL - 6000

$11.99

$

Usually ships in 2-4 days

0

53

Echo 61031005330

DRIVESHAFT
(Superseded to Discontinued)

$

$

Not available

54

Echo 10013101620

KEY

$2.99

$

Usually ships in 2-4 days

0

55

Echo 61032502730

KEY

$1.49

$

Usually ships in 2-4 days

0

56

Echo 9403536201

BEARING, BALL - 6201

$7.99

$

In Stock, Qty 12

0

57

Echo 90070200032

RING, RETAINING - 32

$1.99

$

In Stock, Qty 20+

0

58

Echo 61041305330

SEAL, OIL
(Superseded to Discontinued)

$

$

Not available

59

Echo 61031304130

ADAPTOR, BLADE - UPPER
(Superseded to Discontinued)

$

$

Not available

60

Echo C535000150

ADAPTOR, BLADE - LOWER

$9.49

$

In Stock, Qty 20+

0

61

Echo 90051100010

NUT - 10 -- LEFT HAND

$1.49

$

In Stock, Qty 20+

0

62

Echo 90030020022

PIN, SPLIT - 2X22

Note: BULK OPTION: 89850201130 - 10 PACK

$0.99

$

In Stock, Qty 20+

0

65

Echo 69901009130

SHIELD, DEBRIS - METAL
(Superseded to 69901023531)

$14.99

$

In Stock, only 4 left!

0

66

Echo 90022005008

SCREW - 5X8

$0.99

$

In Stock, Qty 12

0

71

Echo 89541007930

T-WRENCH

$12.99

$

Usually ships in 2-4 days

0

72

Echo 89511200330

SPANNER - 8X10mm

$0.99

$

In Stock, Qty 9

0

73

Echo 89751801131

LOCKING TOOL

$1.49

$

Usually ships in 2-4 days

0

74

Echo 89850201130

PIN, SPLIT - 2X22

$1.99

$

In Stock, only 4 left!

0
