SRM-300 - Echo String Trimmer (Original Version) Engine, Crankcase, Ignition, Stop Switch Parts Diagram

String Trimmer

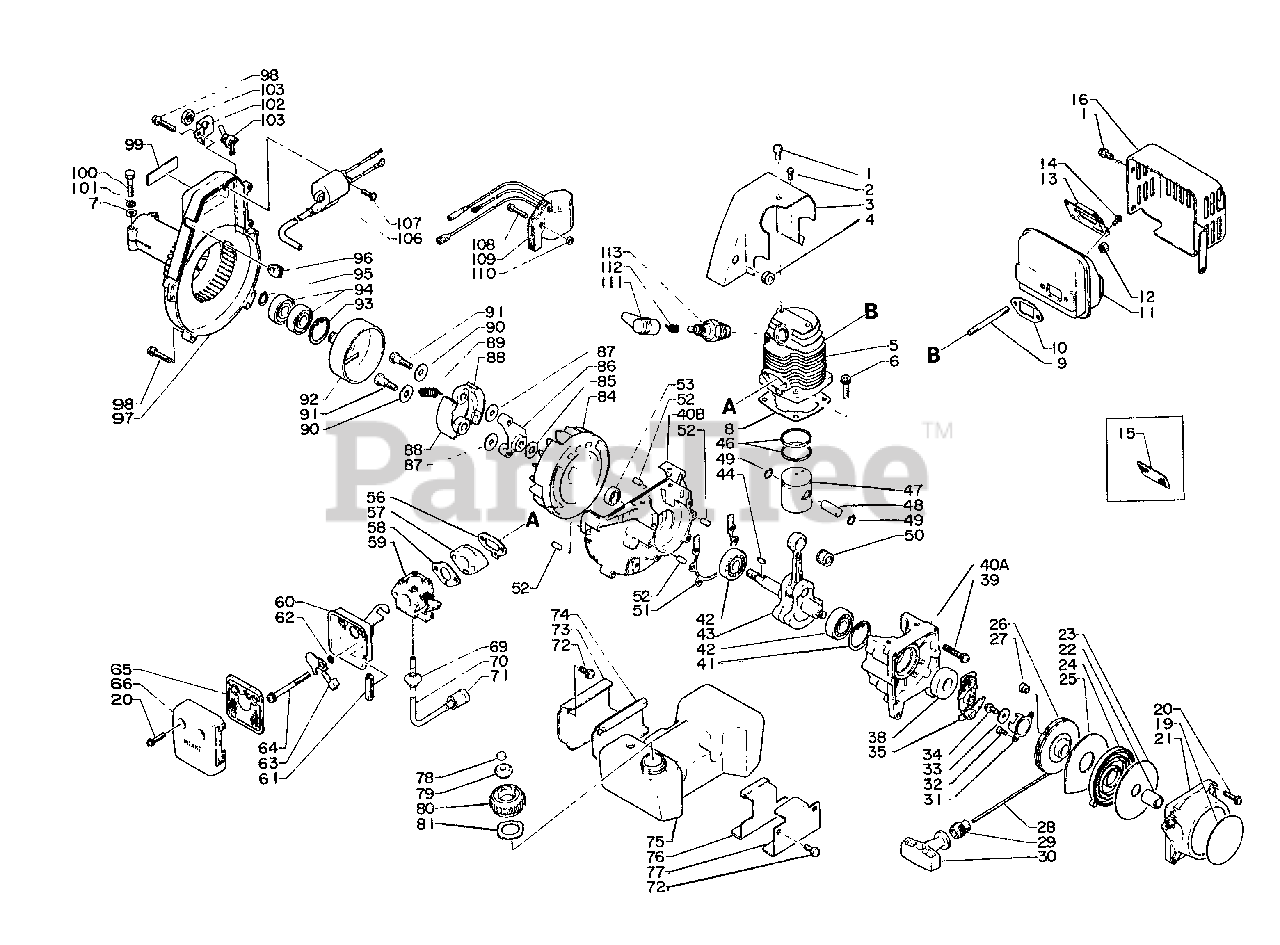

Engine, Crankcase, Ignition, Stop Switch Parts Diagram

  • Title

1

Echo 90024205010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

2

Echo 90024204010

SCREW - 4X10

$0.99

$

In Stock, Qty 20+

0

3

Echo 10151406720

COVER, ENGINE
(Superseded to Discontinued)

$

$

Not available

4

Echo 15011409130

GROMMET

$0.99

$

Usually ships in 2-4 days

0

5

Echo 10101106720

CYLINDER

$191.99

$

Usually ships in 2-4 days

0

6

Echo 90024205020

SCREW - 5X20
(Superseded to 90024205022)

$0.99

$

In Stock, Qty 17

0

7

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

8

Echo 10101006720

GASKET, CYLINDER
(Superseded to Discontinued)

$

$

Not available

9

Echo 10101405330

STUD
(Superseded to 10101422330)

$1.99

$

Usually ships in 2-4 days

0

10

Echo 14551005730

GASKET, EXHAUST
(Superseded to 14551005731)

$2.49

$

Usually ships in 2-4 days

0

Echo 14590006720

MUFFLER ASSY
(Superseded to Discontinued)

Note: Consists of items 11, 13, & 14

$

$

Not available

11

Echo 14580606720

MUFFLER
(Superseded to Discontinued)

$

$

Not available

13

Echo 14580906720

GUIDE, EXHAUST
(Superseded to Discontinued)

$

$

Not available

14

Echo 90024204008

SCREW - 4X8

$0.99

$

In Stock, Qty 11

0

12

Echo 43302000830

LOCKNUT - 5
(Superseded to 90056000005)

$1.49

$

In Stock, Qty 20+

0

15

Echo 14586206720

SCREEN, SPARK ARRESTOR

Note: OPTIONAL

$4.49

$

In Stock, Qty 16

0

16

Echo 14562106720

COVER, MUFFLER
(Superseded to Discontinued)

$

$

Not available

19

Echo 89001211132

LABEL - ECHO
(Superseded to 89001211133)

$6.49

$

In Stock, Qty 10

0

20

Echo 90024204020

SCREW - 4X20

$0.99

$

In Stock, Qty 20+

0

Echo 17720006720

STARTER ASSY
(Superseded to 17720006721)

Note: Consists of items 21 thru 34

$

$

Not available

21

Echo 17720906720

CASE, STARTER
(Superseded to 17720906721)

$

$

Not available

22

Echo 17721612330

COLLAR

$1.99

$

In Stock, Qty 20+

0

23

Echo 17722106720

PLATE, STARTER

$2.99

$

Usually ships in 2-4 days

0

24

Echo 17722003930

SPRING, REWIND

$18.99

$

In Stock, Qty 7

0

25

Echo 17724206720

PLATE, STARTER
(Superseded to 17724206721)

$

$

Not available

26

Echo 17721504130

REEL, ROPE

$21.99

$

Usually ships in 2-4 days

0

27

Echo 17724603930

RETAINER, ROPE

$0.99

$

In Stock, only 3 left!

0

28

Echo 17722603930

ROPE, STARTER - 3.5X850

Note: RePower BULK OPTION: 99944445000

$5.99

$

In Stock, Qty 10

0

29

Echo 17722705330

GUIDE, ROPE
(Superseded to Discontinued)

$

$

Not available

30

Echo 17722811130

GRIP, STARTER

$5.99

$

Usually ships in 2-4 days

0

31

Echo 17724304130

CATCHER, PAWL

$10.99

$

Usually ships in 2-4 days

0

32

Echo 90022004008

SCREW - 4X8

$0.99

$

In Stock, Qty 8

0

33

Echo 17721402830

WASHER - 5

$0.99

$

In Stock, Qty 10

0

34

Echo 90024104008

SCREW - 4X8

$0.99

$

In Stock, Qty 11

0

35

Echo 17730506720

STARTER PAWL ASSY
(Superseded to 17730540530)

$

$

Not available

38

Echo 10021302830

SEAL, OIL

$6.49

$

In Stock, Qty 10

0

39

Echo 90024205030

SCREW - 5X30

$0.99

$

In Stock, only 3 left!

0

40

Echo 10020006720

CRANKCASE KIT
(Superseded to 10020006721)

Note: Includes ITEM 52

$158.99

$

Usually ships in 2-4 days

0

40A

Echo 10020006720

CRANKCASE KIT
(Superseded to 10020006721)

Note: See Ref No. 40, Crankcase set, P/N 10020006720

$158.99

$

Usually ships in 2-4 days

0

40B

Echo 10020006720

CRANKCASE KIT
(Superseded to 10020006721)

Note: See Ref No. 40, Crankcase set, P/N 10020006720

$158.99

$

Usually ships in 2-4 days

0

52

Echo 10021502830

PIN - LOCATING

$0.99

$

Usually ships in 2-4 days

0

41

Echo 90070200032

RING, RETAINING - 32

$1.99

$

In Stock, Qty 20+

0

42

Echo 90081036202

BEARING, BALL - 6202

$9.99

$

In Stock, Qty 14

0

43

Echo 10010006720

CRANKSHAFT ASSY
(Superseded to Discontinued)

$

$

Not available

44

Echo 10013101620

KEY

$2.99

$

Usually ships in 2-4 days

0

46

Echo 10001105731

RING, PISTON

$7.49

$

In Stock, only 1 left!

0

47

Echo 10001005731

PISTON
(Superseded to 10000005730)

$74.99

$

Usually ships in 2-4 days

0

48

Echo 10001305731

PIN, PISTON

$7.49

$

Usually ships in 2-4 days

0

49

Echo 10001500120

RING, RETAINING - 8

$0.99

$

In Stock, Qty 12

0

50

Echo 10001212330

BEARING, NEEDLE
(Superseded to 10001212331)

$10.99

$

In Stock, Qty 11

0

51

Echo 10024206720

GASKET, CRANKCASE
(Superseded to Discontinued)

$

$

Not available

53

Echo 10021211230

SEAL, OIL
(Superseded to Discontinued)

$

$

Not available

56

Echo 13001006720

GASKET, INTAKE
(Superseded to 13001006721)

$0.99

$

Usually ships in 2-4 days

0

57

Echo 13001706720

INSULATOR, INTAKE
(Superseded to 13001706721)

$

$

Not available

58

Echo 13001604630

GASKET, INTAKE
(Superseded to 13001604631)

$0.99

$

In Stock, Qty 9

0

59

Echo 12300006720

CARBURETOR WA-87

$92.99

$

Usually ships in 2-4 days

0

60

Echo 13030105020

CASE, AIR FILTER
(Superseded to 13030105021)

Note: Includes item 61

$9.49

$

Usually ships in 2-4 days

0

61

Echo 17881005020

GROMMET

$1.99

$

Usually ships in 2-4 days

0

62

Echo 17851600830

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

63

Echo 17851506720

SHUTTER, CHOKE

$3.49

$

Usually ships in 2-4 days

0

64

Echo 90024205060

SCREW - 5X60

$0.99

$

In Stock, Qty 20+

0

65

Echo 13031006530

FILTER, AIR
(Superseded to Discontinued)

$

$

Not available

66

Echo 13031305020

COVER, AIR FILTER
(Superseded to Discontinued)

$

$

Not available

69

Echo 13211504920

GROMMET

$1.49

$

In Stock, Qty 20+

0

70

Echo 13201004920

PIPE - 3X5X150 -- BLACK
(Superseded to 13201004921)

Note: RePower BULK OPTION: 90014

$1.49

$

In Stock, Qty 14

0

71

Echo 13120506530

FILTER, FUEL
(Superseded to 13120507320)

$5.49

$

In Stock, Qty 20+

0

72

Echo 90024205014

SCREW - 5X14

$0.99

$

In Stock, Qty 20+

0

73

Echo 13191006720

BRACKET, FUEL TANK
(Superseded to Discontinued)

$

$

Not available

74

Echo 13192006720

CUSHION
(Superseded to 13192006721)

$

$

Not available

75

Echo 13101006720

TANK, FUEL
(Superseded to Discontinued)

$

$

Not available

76

Echo 13192406720

CUSHION
(Superseded to 13192406721)

$

$

Not available

77

Echo 13191806720

BRACKET, FUEL TANK
(Superseded to Discontinued)

$

$

Not available

Echo 13100407430

CAP ASSY
(Superseded to 13100406320)

Note: Consists of items 78 thru 81

$

$

Not available

78

Echo 13131505020

FILTER

$0.99

$

In Stock, Qty 9

0

79

Echo 13131406320

VENT

$5.49

$

In Stock, Qty 7

0

80

Echo 13101707430

CAP
(Superseded to 13100406320)

$

$

Not available

81

Echo 13101604920

GASKET, CAP

$

$

Not available

84

Echo 15020003931

FLYWHEEL
(Superseded to Discontinued)

$

$

Not available

85

Echo 10014306720

WASHER
(Superseded to 90060500008)

$0.99

$

In Stock, Qty 20+

0

86

Echo 17501606720

HUB, CLUTCH

$21.99

$

Usually ships in 2-4 days

0

87

Echo 17504805530

WASHER - 6

$1.49

$

In Stock, Qty 16

0

88

Echo 17500905731

SHOE, CLUTCH
(Superseded to Discontinued)

$

$

Not available

89

Echo 17501805731

SPRING, CLUTCH
(Superseded to Discontinued)

$

$

Not available

90

Echo 17504905530

WASHER

$1.49

$

Usually ships in 2-4 days

0

91

Echo 17504605530

BOLT, CLUTCH
(Superseded to Discontinued)

$

$

Not available

92

Echo 17500506720

DRUM, CLUTCH
(Superseded to Discontinued)

$

$

Not available

93

Echo 90070200035

RING, RETAINING - 35

$1.99

$

In Stock, Qty 16

0

94

Echo 90081906201

BEARING, BALL - 6201
(Superseded to 90081206201)

$12.99

$

In Stock, Qty 8

0

95

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 20+

0

96

Echo 15011009130

BUSHING

$0.99

$

Usually ships in 2-4 days

0

97

Echo 10151106720

CASE, FAN
(Superseded to Discontinued)

$

$

Not available

98

Echo 90024205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

99

Echo 89011209130

LABEL - MODEL
(Superseded to Discontinued)

$

$

Not available

100

Echo 90010005025

BOLT - 5X25

$2.99

$

Usually ships in 2-4 days

0

101

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, Qty 6

0

102

Echo 16381006720

BRACKET, SWITCH

$1.49

$

Usually ships in 2-4 days

0

103

Echo 16340006520

IGNITION SWITCH KIT
(Superseded to Discontinued)

$

$

Not available

106

Echo 15062609130

COIL, IGNITION
(Superseded to Discontinued)

$

$

Not available

107

Echo 90024204015

SCREW - 4X15

$0.99

$

In Stock, only 2 left!

0

108

Echo 90024204022

SCREW - 4X22

$0.99

$

In Stock, Qty 8

0

109

Echo 15060109130

COIL, IGNITION
(Superseded to 15060309130)

$

$

Not available

110

Echo 15011709130

SPACER

$1.49

$

In Stock, only 1 left!

0

111

Echo 15901203433

CAP, SPARK PLUG

$6.99

$

In Stock, Qty 20+

0

112

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.49

$

In Stock, Qty 20+

0

113

Echo 15901000330

SPARK PLUG -- BM-6A

$3.49

$

Usually ships in 2-4 days

0
