SRM-3000 - Echo String Trimmer (SN: 027001 - 034000) Carburetor -- WY-21 Parts Diagram

String Trimmer

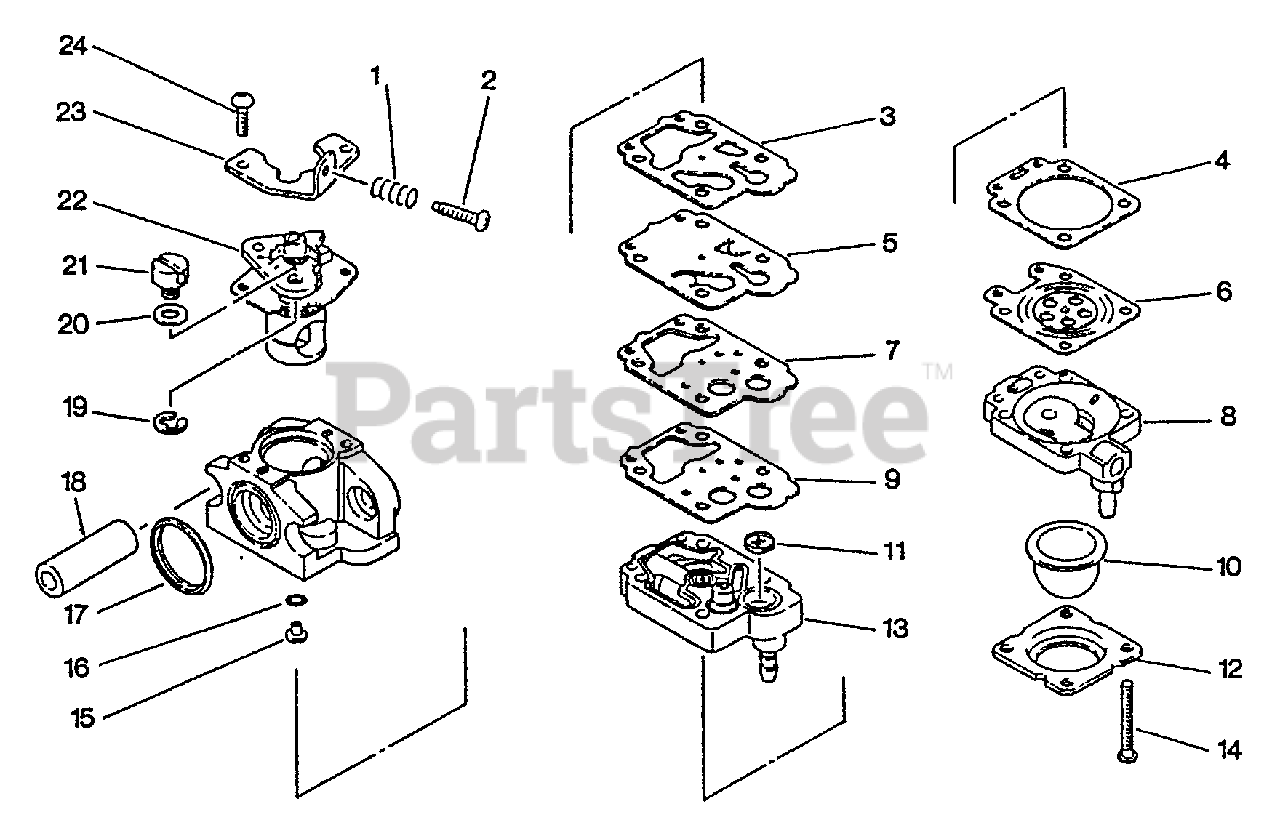

Carburetor -- WY-21 Parts Diagram

  • Title

Echo 12300041030

CARBURETOR WY-21
(Superseded to Discontinued)

Note: Includes 1 - 24

$

$

Not available

1

Echo 12313326030

SPRING, IDLE ADJUST

$1.49

$

Usually ships in 2-4 days

0

2

Echo 12313440030

SCREW, IDLE ADJUST

$1.49

$

Usually ships in 2-4 days

0

3

Echo A B

GASKET, PUMP

$

$

Currently unavailable

4

Echo A B

GASKET, MTRING DIAPHRAGM

$

$

Currently unavailable

5

Echo A B

DIAPHRAGM, PUMP

$

$

Currently unavailable

6

Echo A B

DIAPHRAGM, METERING

$

$

Currently unavailable

7

Echo 12316040630

PLATE, PUMP

$3.99

$

Usually ships in 2-4 days

0

8

Echo 12318040630

BASE, PURGE
(Superseded to 12318046130)

$11.99

$

In Stock, only 3 left!

0

9

Echo A B

GASKET, PLATE

$

$

Currently unavailable

10

Echo 12318140630

BULB, PURGE

$5.49

$

In Stock, Qty 20+

0

11

Echo A

BASE, PURGE

$

$

Currently unavailable

12

Echo 12314202960

RETAINER, PURGE BULB

$3.99

$

In Stock, only 4 left!

0

13

Echo A

BASE, PURGE

$

$

Currently unavailable

14

Echo 12311040630

SCREW

$0.99

$

In Stock, Qty 6

0

15

Echo A

BASE, PURGE

$

$

Currently unavailable

16

Echo A

BASE, PURGE

$

$

Currently unavailable

17

Echo A B

SEAL

$

$

Currently unavailable

18

Echo 12315840630

SLEEVE, MOUNTING
(Superseded to Discontinued)

$

$

Not available

19

Echo 12317307930

RING, RETAINING

$1.49

$

In Stock, only 1 left!

0

20

Echo 12314926030

WASHER

$0.99

$

In Stock, only 1 left!

0

21

Echo 12317226030

SWIVEL

$1.99

$

Usually ships in 2-4 days

0

22

Echo 12311640630

VALVE, THROTTLE

$20.99

$

Usually ships in 2-4 days

0

23

Echo 12312840630

BRACKET, THROTTLE CABLE

$3.99

$

Usually ships in 2-4 days

0

24

Echo 12311440630

SCREW

$2.49

$

In Stock, only 3 left!

0

A

Echo 12310040930

REPAIR KIT
(Superseded to Discontinued)

$

$

Not available

B

Echo 12310140630

DIAPHRAGM/GASKET KIT

$9.49

$

In Stock, Qty 9

0
