SRM-3000 - Echo String Trimmer (SN: 027001 - 034000) Clutch, Ignition, Starter Parts Diagram

String Trimmer

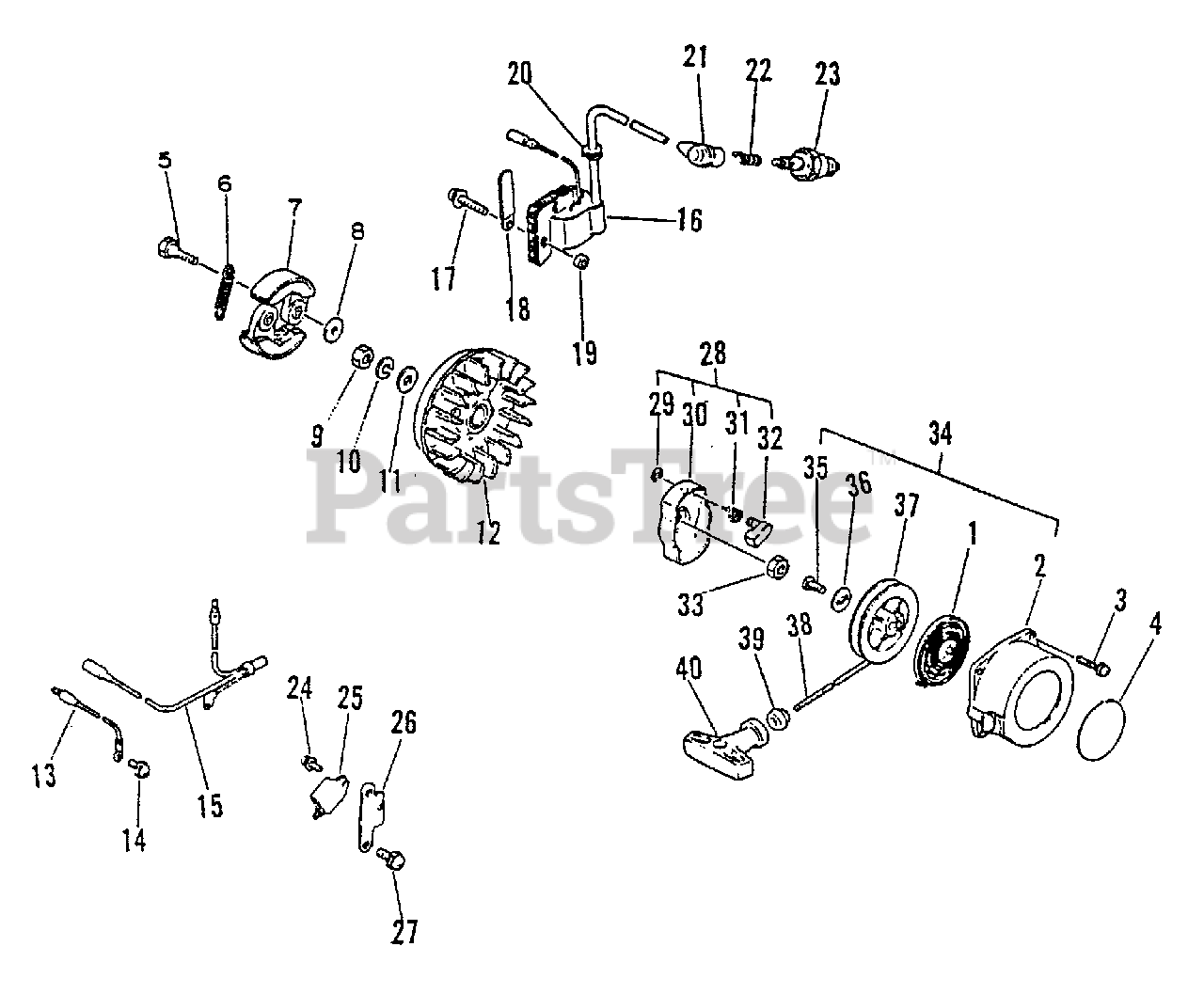

Clutch, Ignition, Starter Parts Diagram

  • Title
1

Echo Part# 17722040630

SPRING, REWIND
Usually ships in 1 day

$

$11.79

0

2

Echo Part# 17723241030

CASE, STARTER - ORANGE
(Superseded to 17723246430)
Usually ships in 5 to 10 days

$

$36.22

0

3

Echo Part# 90023804020

SCREW - 4X20
Usually ships in 1 day

$

$0.69

0

4

Echo Part# 89011849330

LABEL - ECHO
Usually ships in 1 day

$

$3.02

0

5

Echo Part# 17504622332

BOLT, CLUTCH
Usually ships in 1 day

$

$2.69

0

6

Echo Part# 17501805731

SPRING, CLUTCH
Usually ships same day

Not available

$

$

7

Echo Part# 17500905733

SHOE, CLUTCH
Usually ships same day

Not available

$

$

8
Usually ships in 1 day

$

$1.07

0

Usually ships in 1 day

$

$0.69

0

10

Echo Part# 90060500008

LOCKWASHER - 8
Usually ships in 1 day

$

$0.38

0

Usually ships in 1 day

$

$1.07

0

Usually ships same day

Not available

$

$

13

Echo Part# 16201427230

LEAD - GROUND
Usually ships in 1 day

$

$2.13

0

14

Echo Part# 90023805010

SCREW - 5X10
Usually ships in 1 day

$

$0.69

0

Usually ships in 5 to 10 days

$

$6.03

0

16

Echo Part# 15262627530

COIL, IGNITION
Usually ships same day

Not available

$

$

17

Echo Part# 90023805025

SCREW - 5X25
Usually ships in 1 day

$

$0.69

0

Usually ships in 1 day

$

$1.07

0

19

Echo Part# 15211705530

SPACER
(Superseded to 15011716430)
Usually ships in 1 day

$

$2.26

0

Usually ships in 1 day

$

$1.07

0

21

Echo Part# 15901203433

CAP, SPARK PLUG
Usually ships in 1 day

$

$5.70

0

22

Echo Part# 15901103432

TERMINAL, SPARK PLUG CAP
Usually ships in 1 day

$

$1.07

0

23

Echo Part# 15901010630

SPARK PLUG -- BPM-7A
Usually ships same day

Not available

$

$

24
Usually ships in 1 day

$

$0.69

0

25

Echo Part# 15260115130

COIL, IGNITION
Usually ships in 5 to 10 days

$

$120.64

0

26

Echo Part# 15931027430

BRACKET, IGNITION COIL
Usually ships same day

Not available

$

$

27

Echo Part# 90023805012

SCREW - 5X12
Usually ships in 1 day

$

$0.69

0

28

Echo Part# 17720241030

STARTER PAWL ASSY
(Superseded to A052000370)

Note: INCLUDES ITEMS 29 - 32

Usually ships in 1 day

$

$10.91

0

29

Echo Part# 90070000004

RING, RETAINING - 4
Usually ships in 1 day

$

$0.45

0

30

Echo Part# 17721041030

CATCHER, PAWL
Usually ships in 5 to 10 days

$

$6.15

0

31

Echo Part# 17723440630

SPRING, RETURN
Usually ships in 1 day

$

$2.63

0

32

Echo Part# 17721840630

PAWL, STARTER
(Superseded to A514000120)
Usually ships in 1 day

$

$1.72

0

Usually ships in 1 day

$

$0.45

0

34

Echo Part# 17720049730

STARTER ASSY

Note: INCLUDES ITEMS 1, 2, 35 - 40

Usually ships same day

Not available

$

$

Usually ships in 1 day

$

$3.14

0

Usually ships in 5 to 10 days

$

$0.95

0

37
Usually ships in 1 day

$

$12.49

0

38

Echo Part# 17722601110

ROPE, STARTER - 4X880

Note: RePower BULK OPTION: 99944450000

Usually ships in 5 to 10 days

$

$4.58

0

39

Echo Part# 17722806530

GRIP, STARTER
Usually ships in 1 day

$

$3.70

0

40

Echo Part# 17722806530

GRIP, STARTER
Usually ships in 1 day

$

$3.70

0

Echo Part# 99944400035

BULK ROPE - 3.5X 850
(Superseded to 99944435000)
Usually ships in 1 day

$

$23.06

0
