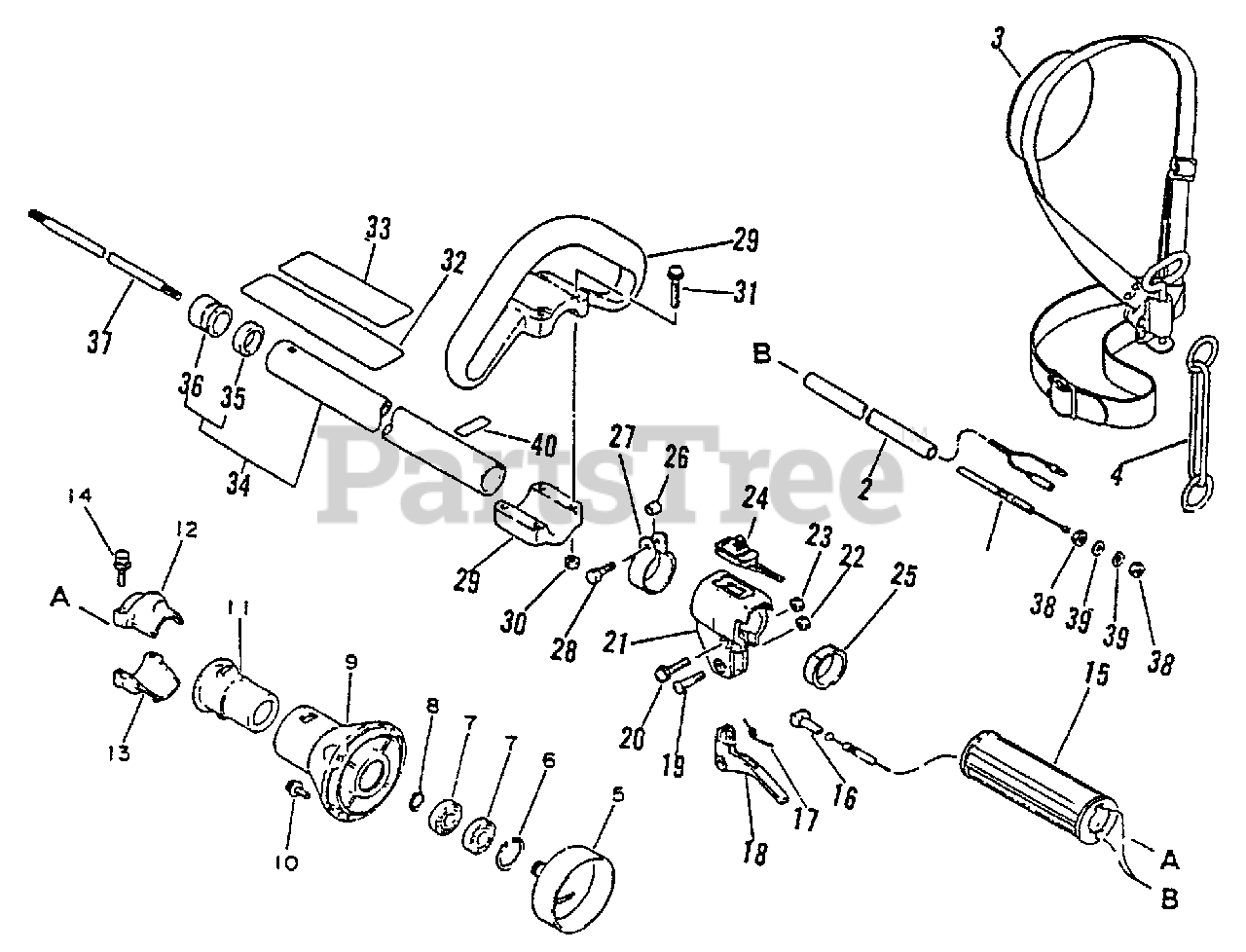

SRM-3000 - Echo String Trimmer (SN: 027001 - 034000) Driveshaft, Throttle, Stop Switch, Handles, Clutch Housing, Harness Parts Diagram

String Trimmer

Driveshaft, Throttle, Stop Switch, Handles, Clutch Housing, Harness Parts Diagram

  • Title

1

Echo 17800140930

CABLE, THROTTLE
(Superseded to Discontinued)

$

$

Not available

2

Echo 17812740930

PIPE

$0.99

$

Usually ships in 2-4 days

0

3

Echo 30100007530

SHOULDER STRAP ASSY
(Superseded to 30100024330)

Note: Includes ITEM 4

$98.99

$

Usually ships in 2-4 days

0

4

Echo 301305-24330

HOOK
(Superseded to 30130524330)

$12.99

$

Usually ships in 2-4 days

0

5

Echo 17500540430

DRUM, CLUTCH

$53.99

$

Usually ships in 2-4 days

0

6

Echo 90070200028

RING, SNAP 28

$1.99

$

In Stock, Qty 20+

0

7

Echo 90080806001

BEARING, BALL 6001
(Superseded to 90080206001)

$11.99

$

In Stock, only 2 left!

0

8

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 20+

0

9

Echo 61020549730

CASE, CLUTCH
(Superseded to Discontinued)

$

$

Not available

10

Echo 900242-05016

SCREW 5×16

$0.99

$

In Stock, only 4 left!

0

11

Echo 61091040430

CUSHION

$7.49

$

Usually ships in 2-4 days

0

12

Echo 61092240430

HOLDER
(Superseded to Discontinued)

$

$

Not available

13

Echo 61092340430

HOLDER
(Superseded to Discontinued)

$

$

Not available

14

Echo 900142-05025

BOLT - 5×25

$0.99

$

In Stock, Qty 9

0

15

Echo 35101207530

GRIP
(Superseded to Discontinued)

$

$

Not available

16

Echo 17804805630

GUIDE, CABLE

$1.99

$

In Stock, Qty 5

0

17

Echo 17804306930

SPRING, THROTTLE

$1.49

$

In Stock, only 4 left!

0

18

Echo 17801048731

TRIGGER, THROTTLE
(Superseded to C450000070)

$1.99

$

In Stock, Qty 20+

0

19

Echo 17811005330

SCREW

$0.99

$

In Stock, Qty 11

0

20

Echo 90024205030

SCREW 5×30

$0.99

$

In Stock, only 2 left!

0

21

Echo 17802449730

BRACKET, THROTTLE CONTROL
(Superseded to Discontinued)

$

$

Not available

22

Echo 90056000005

NUT, LOCK M5

$1.49

$

In Stock, Qty 14

0

23

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

24

Echo A440000280

SWITCH, ON-OFF

$14.99

$

In Stock, only 2 left!

0

25

Echo 17807649730

SPACER
(Superseded to Discontinued)

$

$

Not available

26

Echo 699012-03330

SPACER, GUARD

$1.99

$

In Stock, Qty 13

0

27

Echo 30120707530

HOOK

$6.99

$

Usually ships in 2-4 days

0

28

Echo 900100-05018

BOLT 5×18

$0.99

$

In Stock, Qty 8

0

29

Echo 35120106930

LOOP HANDLE ASSY
(Superseded to Discontinued)

Note: INCLUDES ITEMS 30 8 31

$

$

Not available

30

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

31

Echo 90024205035

SCREW 5×35

$0.99

$

In Stock, Qty 20+

0

32

Echo 89016047630

LABEL - CAUTION
(Superseded to 89016049630)

$7.49

$

Usually ships in 2-4 days

0

33

Echo 89016044430

LABEL - CAUTION
(Superseded to 89016052730)

$1.99

$

Usually ships in 2-4 days

0

34

Echo 61020441030

MAIN PIPE ASSY 25×1500

Note: INCLUDES ITEMS 32, 33, 35 & 36

$170.99

$

Usually ships in 2-4 days

0

35

Echo 61011204930

BUSHING

$3.99

$

Usually ships in 2-4 days

0

36

Echo 61010504930

STOPPER

$27.99

$

Usually ships in 2-4 days

0

37

Echo 61001106230

DRIVESHAFT

$55.99

$

Usually ships in 2-4 days

0

38

Echo 900502-00006

NUT M6

$0.99

$

In Stock, Qty 12

0

39

Echo 90060000006

WASHER 6.5×11.5×0.8

$0.99

$

In Stock, Qty 20+

0

40

Echo 890152-04930

LABEL - ALIGNMENT

$0.99

$

In Stock, Qty 11

0
