SRM-3000 - Echo String Trimmer (SN: 027001 - 034000) Intake, Exhaust, Air Cleaner Parts Diagram

String Trimmer

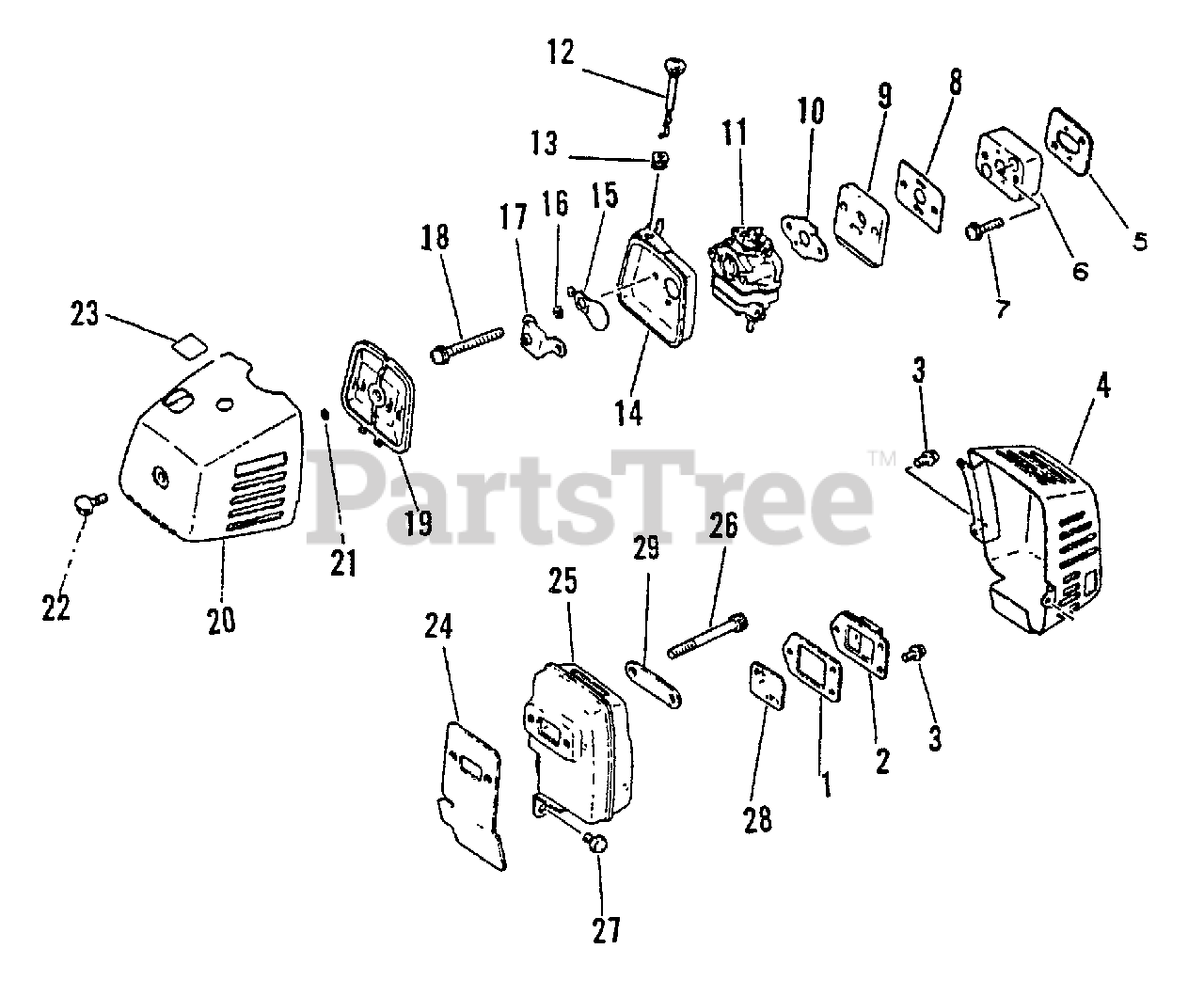

Intake, Exhaust, Air Cleaner Parts Diagram

  • Title

1

Echo 14586627231

GASKET, EXHAUST
(Superseded to Discontinued)

$

$

Not available

2

Echo 14580941030

LID, MUFFLER

$9.49

$

Usually ships in 2-4 days

0

3

Echo 90023804008

SCREW 4×8

$0.99

$

In Stock, only 2 left!

0

4

Echo 14587141031

COVER, EXHAUST
(Superseded to Discontinued)

$

$

Not available

5

Echo 13001027531

GASKET, INTAKE
(Superseded to Discontinued)

$

$

Not available

6

Echo 13000741030

INSULATOR
(Superseded to Discontinued)

$

$

Not available

7

Echo 900238-05020

SCREW 5×20

$0.99

$

In Stock, Qty 8

0

8

Echo 13002240931

GASKET
(Superseded to Discontinued)

$

$

Not available

9

Echo 13002641030

PLATE
(Superseded to Discontinued)

$

$

Not available

10

Echo 13001640931

GASKET

$0.99

$

In Stock, Qty 7

0

11

CARBURETOR

Note: See Carburetor Diagram For Details

$

$

Not available

12

Echo 17851049130

ROD, CHOKE
(Superseded to Discontinued)

$

$

Not available

13

Echo 17881005230

GROMMET, CHOKE

$2.49

$

In Stock, only 3 left!

0

14

Echo 13030740930

CASE, AIR FILTER

$13.99

$

Usually ships in 2-4 days

0

15

Echo 17851540630

SHUTTER, CHOKE

$3.49

$

Usually ships in 2-4 days

0

16

Echo 178516-00830

WASHER 5.2×8×0.8T

$0.99

$

In Stock, Qty 20+

0

17

Echo 12900640930

PLATE, PREVENT
(Superseded to Discontinued)

$

$

Not available

18

Echo 90023805050

SCREW 5×50

$0.99

$

In Stock, Qty 8

0

19

Echo 13031040930

FILTER, AIR

$13.99

$

In Stock, only 2 left!

0

20

Echo 13030241030

AIR FILTER COVER ASSY
(Superseded to Discontinued)

Note: INCLUDES ITEMS 21-22

$

$

Not available

21

Echo 90072000004

O-RING

$1.99

$

In Stock, Qty 13

0

22

Echo 13041540630

SCREW

$3.49

$

In Stock, only 1 left!

0

23

Echo X506000070

LABEL, CHOKE

$0.99

$

In Stock, Qty 7

0

24

Echo 14551027531

GASKET, MUFFLER

$3.99

$

Usually ships in 2-4 days

0

25

Echo 14580641030

MUFFLER
(Superseded to Discontinued)

$

$

Not available

26

Echo 900105-05055

BOLT 5×55

$1.99

$

In Stock, Qty 20+

0

27

Echo 90023805010

SCREW 5×10

$0.99

$

In Stock, Qty 13

0

28

Echo 14586227230

SCREEN, SPARK ARRESTER

$4.99

$

Usually ships in 2-4 days

0

29

Echo 14564222330

WASHER

$1.99

$

Usually ships in 2-4 days

0
