SRM-3000 - Echo String Trimmer (SN: 034001 - 037500) Intake, Exhaust, Air Cleaner Parts Diagram

String Trimmer

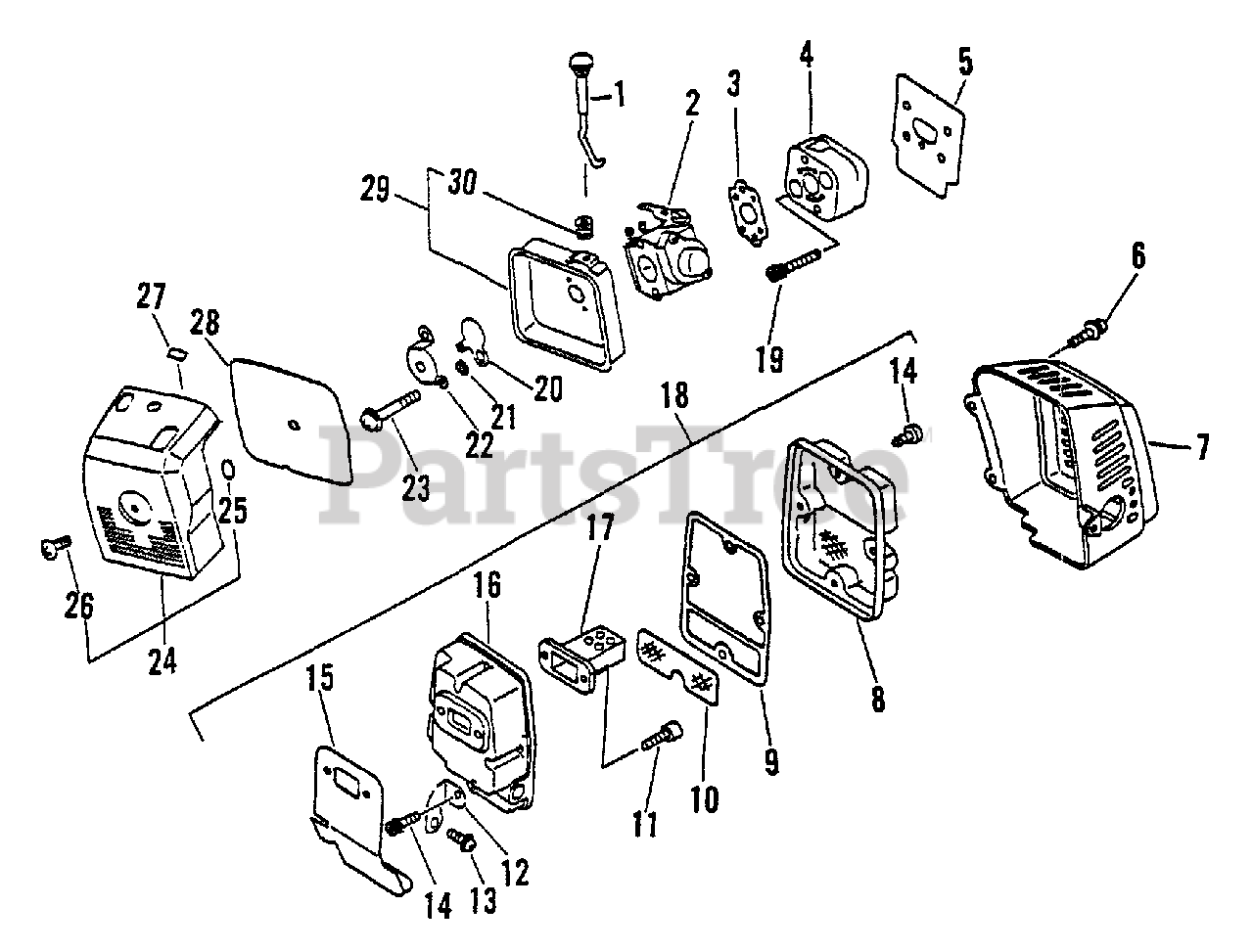

Intake, Exhaust, Air Cleaner Parts Diagram

  • Title

1

Echo 17851051730

ROD, CHOKE

$4.99

$

In Stock, only 1 left!

0

2

Echo 12520051330

CARBURETOR C1U-K21
(Superseded to 12520051331)

$

$

Not available

3

Echo 13001642031

GASKET, INTAKE

$1.49

$

In Stock, Qty 20+

0

4

Echo 13000751330

INSULATOR

$10.99

$

Usually ships in 2-4 days

0

5

Echo 13001027531

GASKET, INTAKE
(Superseded to Discontinued)

$

$

Not available

6

Echo 90023804008

SCREW - 4X8

$0.99

$

In Stock, Qty 10

0

7

Echo 14562151830

COVER, MUFFLER
(Superseded to 14562151831)

$

$

Not available

8

Echo 14586151330

LID, MUFFLER

$41.99

$

Usually ships in 2-4 days

0

9

Echo 14586651330

GASKET, EXHAUST

$5.99

$

Usually ships in 2-4 days

0

10

Echo 14586251030

SCREEN, SPARK ARRESTOR
(Superseded to Discontinued)

$

$

Not available

11

Echo 90010505018

SCREW - 5X18

$1.49

$

In Stock, only 1 left!

0

12

Echo 14571151330

BRACKET, MUFFLER

$6.99

$

Usually ships in 2-4 days

0

13

Echo 90023805010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

14

Echo 90016205014

SCREW - 5X14

$1.49

$

In Stock, Qty 20+

0

15

Echo 14551051330

GASKET, EXHAUST
(Superseded to Discontinued)

$

$

Not available

16

Echo 14581051330

MUFFLER
(Superseded to Discontinued)

$

$

Not available

17

Echo 14585951230

BAFFLE, MUFFLER

$5.99

$

Usually ships in 2-4 days

0

18

Echo 14580051330

MUFFLER ASSY
(Superseded to Discontinued)

Note: INCLUDES ITEMS 8 - 17

$

$

Not available

19

Echo 90016205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

20

Echo 17851505060

SHUTTER, CHOKE

$2.99

$

In Stock, Qty 5

0

21

Echo 17851600830

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

22

Echo 12901151730

PLATE, PREVENT
(Superseded to Discontinued)

$

$

Not available

23

Echo 90023805045

SCREW - 5X45

$0.99

$

In Stock, Qty 16

0

24

Echo 13030251730

AIR FILTER COVER ASSY
(Superseded to 13030251731)

Note: INCLUDES ITEMS 25-26

$15.99

$

In Stock, Qty 7

0

25

Echo 90072000003

O-RING - 3

$1.49

$

In Stock, Qty 13

0

26

Echo 13040614330

THUMBSCREW
(Superseded to Discontinued)

$

$

Not available

27

Echo 89012151730

LABEL - CHOKE
(Superseded to 89012152130)

$

$

Not available

28

Echo 13031051730

FILTER, AIR

$8.99

$

In Stock, Qty 13

0

28

Echo 13031051830

FILTER, AIR - HEAVY DUTY

Note: OPTIONAL

$7.49

$

In Stock, Qty 20+

0

29

Echo 13031451730

CASE, AIR FILTER
(Superseded to Discontinued)

$

$

Not available

30

Echo 17881005230

GROMMET

$1.99

$

In Stock, Qty 15

0
