SRM-3000 - Echo String Trimmer (SN: 037501 - 043225) Engine, Crankcase, Fan Housing, Cover Parts Diagram

String Trimmer

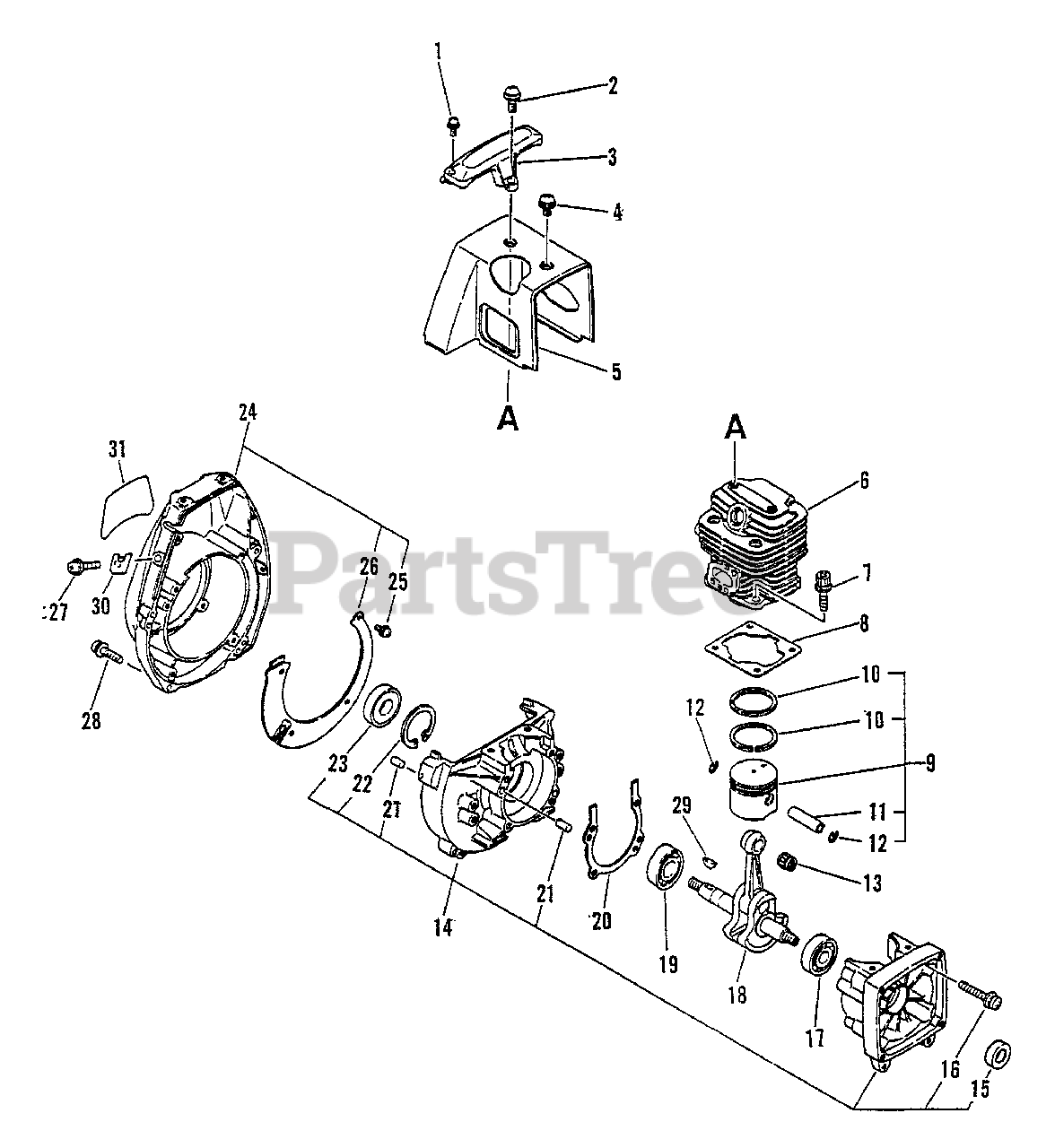

Engine, Crankcase, Fan Housing, Cover Parts Diagram

  • Title

1

Echo 90023804014

SCREW - 4X14

$0.99

$

In Stock, Qty 19

0

2

Echo 90023805016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

3

Echo 15990541030

GUARD - TOP
(Superseded to Discontinued)

$

$

Not available

4

Echo 90023805010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

5

Echo 10151449730

COVER, ENGINE

$12.99

$

Usually ships in 2-4 days

0

6

Echo 10101127530

CYLINDER
(Superseded to Discontinued)

$

$

Not available

7

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

8

Echo 10101021230

GASKET, CYLINDER
(Superseded to Discontinued)

Note: USE GASKET KIT P/N 88900051830

$

$

Not available

9

Echo 10000027430

PISTON KIT
(Superseded to 10000027431)

Note: Includes ITEMS 10-12

$

$

Not available

10

Echo 10001116131

RING, PISTON

$8.49

$

In Stock, Qty 5

0

11

Echo 10001327430

PIN, PISTON

$8.49

$

Usually ships in 2-4 days

0

12

Echo 10001503930

RING, RETAINING
(Superseded to 10001503931)

$0.99

$

In Stock, Qty 16

0

13

Echo 10001216131

BEARING, NEEDLE

$12.99

$

Usually ships in 2-4 days

0

14

Echo 10020427430

CRANKCASE KIT
(Superseded to Discontinued)

$

$

Not available

15

Echo 10021305530

SEAL, OIL

$6.99

$

In Stock, Qty 20+

0

16

Echo 90023805030

SCREW - 5X30

$0.99

$

Usually ships in 2-4 days

0

17

Echo 9403536201

BEARING, BALL - 6201

$8.99

$

In Stock, Qty 17

0

18

Echo 10010021230

CRANKSHAFT ASSY
(Superseded to Discontinued)

$

$

Not available

19

Echo 90081036202

BEARING, BALL - 6202

$10.99

$

In Stock, only 2 left!

0

20

------------------

GASKET, CRANKCASE

Note: USE GASKET KIT P/N 88900051830

$

$

Not available

21

Echo 10021502830

PIN - LOCATING

$0.99

$

Usually ships in 2-4 days

0

22

Echo 90070200035

RING, RETAINING - 35

$2.49

$

In Stock, Qty 11

0

23

Echo 10021205730

SEAL, OIL

$5.99

$

Usually ships in 2-4 days

0

24

Echo 10150351830

FAN CASE ASSY
(Superseded to Discontinued)

Note: INCLUDES ITEMS 25 & 26

$

$

Not available

25

Echo 90023804008

SCREW - 4X8

$0.99

$

In Stock, only 4 left!

0

26

Echo 10153421230

SHIELD, FAN

$8.99

$

Usually ships in 2-4 days

0

27

Echo 90023804010

SCREW - 4X10

$0.99

$

In Stock, Qty 15

0

28

Echo 90023805025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

29

Echo 10014200310

KEY

$1.49

$

Usually ships in 2-4 days

0

30

Echo 17812151330

HOLDER, CABLE

$3.49

$

Usually ships in 2-4 days

0

31

Echo 89014041030

LABEL - MODEL
(Superseded to Discontinued)

$

$

Not available

Echo 88900051830

GASKET KIT

$24.99

$

Usually ships in 2-4 days

0

------------------

GASKET, CRANKCASE

Note: NOT AVAILABLE SEPARATELY

$

$

Not available

Echo 10101021230

GASKET, CYLINDER
(Superseded to Discontinued)

$

$

Not available

Echo 13001027531

GASKET, INTAKE
(Superseded to Discontinued)

$

$

Not available

Echo 13001640931

GASKET, INTAKE

$0.99

$

In Stock, Qty 8

0

Echo 13002240931

GASKET, INTAKE
(Superseded to Discontinued)

$

$

Not available

Echo 14551027531

GASKET, EXHAUST

$3.49

$

Usually ships in 2-4 days

0

Echo 14586627231

GASKET, EXHAUST
(Superseded to Discontinued)

$

$

Not available
