SRM-3000 - Echo String Trimmer (SN: 037501 - 043225) Intake, Exhaust, Air Cleaner, Fuel System Parts Diagram

String Trimmer

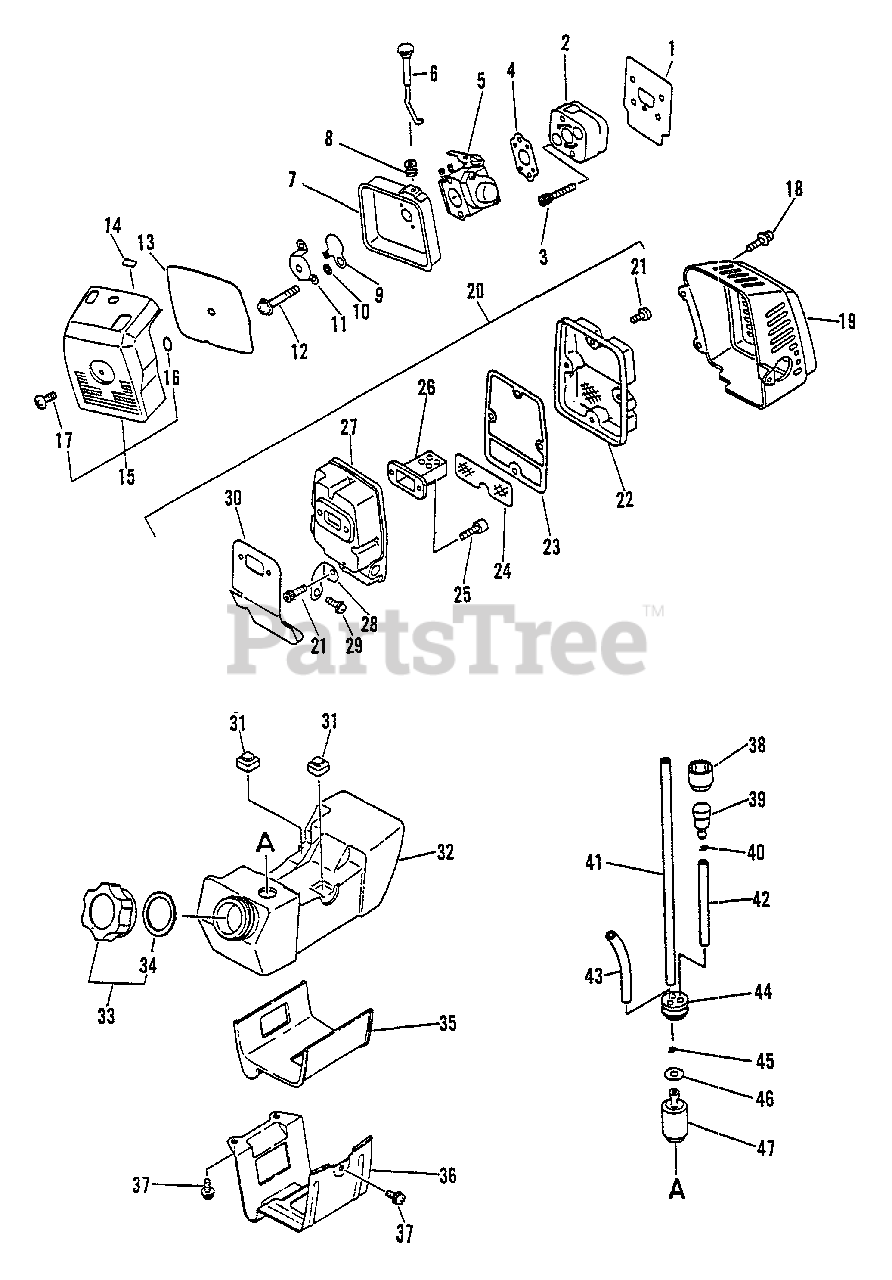

Intake, Exhaust, Air Cleaner, Fuel System Parts Diagram

  • Title

1

Echo 130016-42031

GASKET, INTAKE

$1.49

$

In Stock, Qty 20+

0

2

Echo 13000751330

INSULATOR, INTAKE

$12.99

$

Usually ships in 2-4 days

0

3

Echo 90016205025

BOLT 5×25

$0.99

$

In Stock, Qty 20+

0

4

Echo 130016-42031

GASKET, INTAKE

$1.49

$

In Stock, Qty 20+

0

5

Echo 12520051331

CARBURETOR - C1U-K21A
(Superseded to 12520051332)

$

$

Not available

6

Echo 17851051730

ROD, CHOKE

$7.99

$

In Stock, only 4 left!

0

7

Echo 13031451730

CASE, AIR FILTER
(Superseded to Discontinued)

$

$

Not available

8

Echo 17881005230

GROMMET, CHOKE

$2.49

$

In Stock, only 3 left!

0

9

Echo 17851505060

SHUTTER, CHOKE

$3.49

$

In Stock, only 2 left!

0

10

Echo 178516-00830

WASHER 5.2×8×0.8T

$0.99

$

In Stock, Qty 20+

0

11

Echo 12901151730

PLATE, PREVENT
(Superseded to Discontinued)

$

$

Not available

12

Echo 90023805045

SCREW 5×45

$0.99

$

In Stock, Qty 5

0

13

Echo 13031051730

FILTER, AIR

$10.99

$

In Stock, Qty 9

0

13

Echo 13031051830

FILTER, HEAVY-DUTY AIR

Note: OPTIONAL

$8.49

$

In Stock, Qty 9

0

14

Echo X506000070

LABEL, CHOKE

$0.99

$

In Stock, Qty 7

0

15

Echo 13030251730

AIR FILTER COVER ASSY
(Superseded to 13030251731)

Note: Includes ITEMS 16-17

$17.99

$

In Stock, only 2 left!

0

16

Echo 90072000003

O-RING 3

$1.49

$

In Stock, only 2 left!

0

17

Echo 13040616331

THUMBSCREW

$6.49

$

Usually ships in 2-4 days

0

18

Echo 90023804008

SCREW 4×8

$0.99

$

In Stock, only 2 left!

0

19

Echo 14562151831

COVER, MUFFLER
(Superseded to 14562151833)

$

$

Not available

20

Echo 14580051330

MUFFLER ASSY
(Superseded to Discontinued)

Note: INCLUDES ITEMS 21 - 30

$

$

Not available

21

Echo 90016205014

BOLT 5×14

$1.49

$

In Stock, Qty 7

0

22

Echo 14586151330

COVER, MUFFLER

$41.99

$

Usually ships in 2-4 days

0

23

Echo 14586651330

GASKET, EXHAUST

$6.99

$

Usually ships in 2-4 days

0

24

Echo 14586251030

SCREEN, SPARK ARRESTER
(Superseded to Discontinued)

$

$

Not available

25

Echo 90010505018

BOLT M5×18

$1.49

$

Usually ships in 2-4 days

0

26

Echo 14585951230

SILENCER

$6.99

$

Usually ships in 2-4 days

0

27

Echo 14581051330

MUFFLER
(Superseded to Discontinued)

$

$

Not available

28

Echo 14571151330

BRACKET, MUFFLER

$7.99

$

Usually ships in 2-4 days

0

29

Echo 90023805010

SCREW 5×10

$0.99

$

In Stock, Qty 13

0

30

Echo 14551051330

GASKET, MUFFLER
(Superseded to Discontinued)

$

$

Not available

31

Echo 13192405530

CUSHION

$2.99

$

In Stock, only 2 left!

0

32

Echo 13101051830

TANK, FUEL
(Superseded to Discontinued)

$

$

Not available

33

Echo 13100448730

CAP ASSY
(Superseded to 13100455830)

Note: Includes ITEM 34

$5.49

$

In Stock, only 2 left!

0

34

Echo 13101640930

GASKET, FUEL CAP

$3.49

$

In Stock, Qty 8

0

35

Echo 13192441030

CUSHION

$6.49

$

Usually ships in 2-4 days

0

36

Echo 13191041030

BRACKET, FUEL TANK
(Superseded to Discontinued)

$

$

Not available

37

Echo 900238-05012

SCREW 5×12

$0.99

$

In Stock, Qty 7

0

38

Echo 13132840630

HOLDER, VENT

$7.49

$

In Stock, Qty 12

0

39

Echo 13130040630

VENT ASSY
(Superseded to 13130056430)

$8.99

$

In Stock, Qty 6

0

40

Echo 132013-09820

CLIP 6 MM

$0.99

$

In Stock, Qty 7

0

41

Echo V471001190

PIPE, FUEL 3x-5x-180
(Superseded to V471001191)

Note: RePower BULK OPTION: 90014

$1.99

$

In Stock, Qty 20+

0

42

Echo 13201051230

PIPE, FUEL VENT 3×5×60

Note: RePower BULK OPTION: 90015

$5.99

$

In Stock, only 2 left!

0

43

Echo 13201056330

PIPE, FUEL RETURN 3×6×90 MM CLEAR

Note: RePower BULK OPTION: 90017

$3.49

$

In Stock, Qty 8

0

44

Echo V137000030

GROMMET, FUEL
(Superseded to 13211546730)

$2.49

$

In Stock, Qty 20+

0

45

Echo 130111-00530

CLIP 5.5

$0.99

$

In Stock, Qty 20+

0

46

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

47

Echo 13120002830

FILTER, FUEL
(Superseded to 13120514930)

$9.99

$

In Stock, Qty 20+

0
