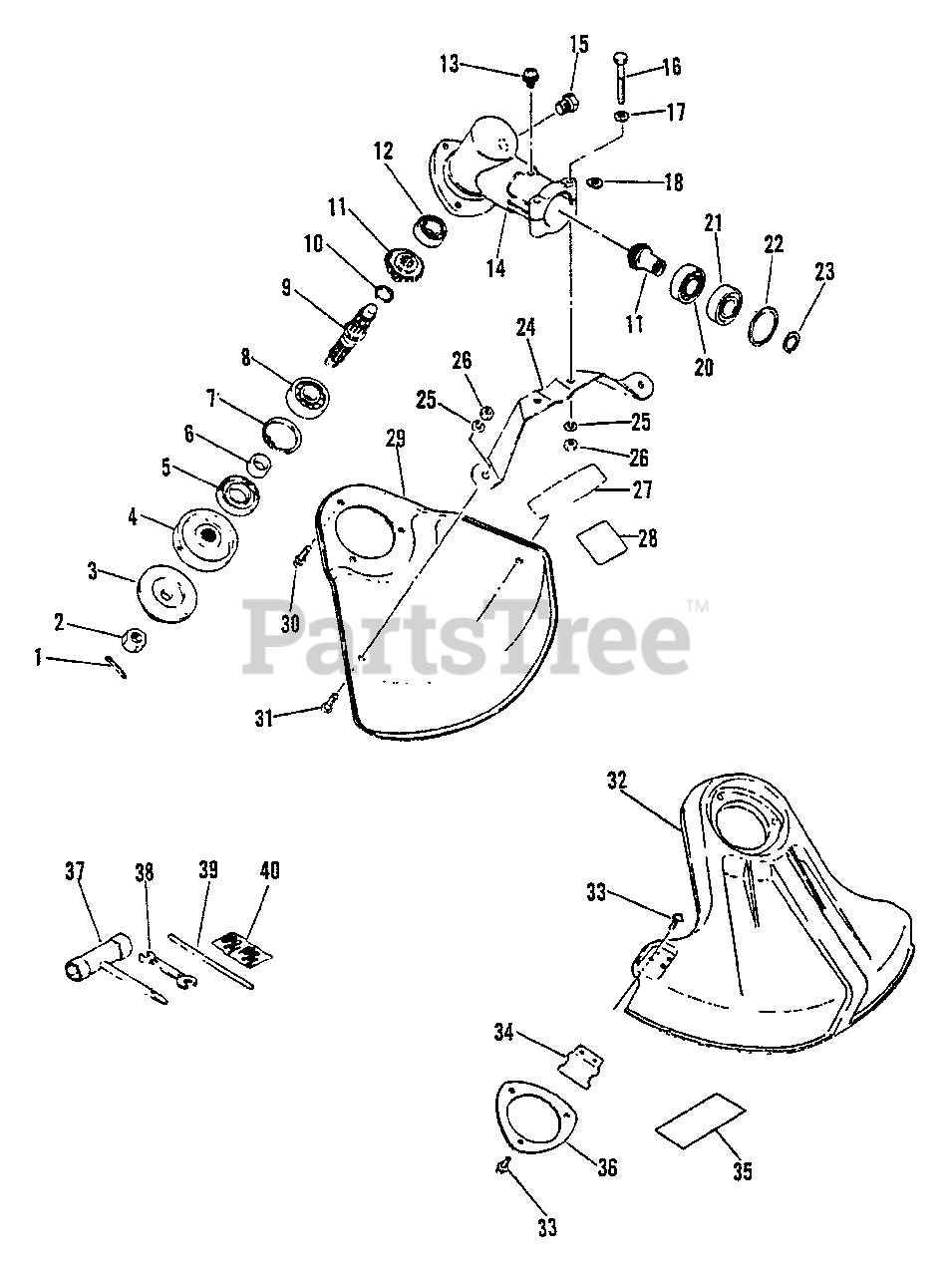

SRM-3000 - Echo String Trimmer (SN: 037501 - 043225) Shield, Gear Case, Tools Parts Diagram

String Trimmer

Shield, Gear Case, Tools Parts Diagram

  • Title

Echo 61040024533

GEAR CASE ASSY
(Superseded to 61040024534)

Note: INCLUDES ITEMS 1 - 18, 20 - 23

$370.99

$

In Stock, only 1 left!

0

1

Echo 900300-20022

PIN, COTTER 2×22

Note: BULK OPTION: 89850201130 - 10 PACK

$0.99

$

In Stock, Qty 14

0

2

Echo 900511-00010

NUT 10

$1.99

$

In Stock, Qty 20+

0

3

Echo C535000150

PLATE, ADAPTOR - LOWER

$10.99

$

In Stock, Qty 8

0

4

Echo 61031307130

PLATE, ADAPTER - UPPER
(Superseded to 61031307132)

$20.99

$

In Stock, only 3 left!

0

5

Echo 61041307130

SEAL, OIL 22

$6.99

$

In Stock, only 1 left!

0

6

Echo 61031507130

SPACER 11.8×15×9

$4.49

$

In Stock, only 1 left!

0

7

Echo 90070200032

RING, SNAP Ø32

$2.49

$

In Stock, only 1 left!

0

8

Echo 9403536201

BEARING, BALL - 6201 C3

$9.99

$

In Stock, only 3 left!

0

9

Echo 61031041030

SHAFT, GEAR

$109.99

$

In Stock, only 1 left!

0

10

Echo 90070600012

RING, SNAP Ø12

$1.49

$

In Stock, Qty 20+

0

11

Echo 61030040430

GEAR SET

$141.99

$

Usually ships in 2-4 days

0

12

Echo 90080036000

BEARING, BALL 6000

$14.99

$

Usually ships in 2-4 days

0

13

Echo 900242-05010

SCREW 5×10

$0.99

$

In Stock, Qty 20+

0

14

Echo 61041007530

CASE, GEAR
(Superseded to Discontinued)

$

$

Not available

15

Echo 90010008008

BOLT 8×8 SP

$0.99

$

In Stock, Qty 10

0

16

Echo 90010005040

BOLT 5×40

$0.99

$

Usually ships in 2-4 days

0

17

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

18

Echo 610239-04130

D-WASHER

$0.99

$

In Stock, Qty 20+

0

20

Echo 90080006001

BEARING, BALL 6001
(Superseded to 90080036001)

$11.99

$

In Stock, Qty 7

0

21

Echo 90080796001

BEARING, BALL 6001
(Superseded to 9405106001)

$7.49

$

In Stock, Qty 20+

0

22

Echo 90070200028

RING, SNAP 28

$1.99

$

In Stock, Qty 20+

0

23

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 20+

0

24

Echo 69901523532

BRACKET, SHIELD MOUNTING

$8.49

$

Usually ships in 2-4 days

0

25

Echo 900605-00005

WASHER, SPRING 5

$0.99

$

In Stock, Qty 9

0

26

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

27

Echo 89011848830

LABEL, ECHO
(Superseded to X502000320)

$0.99

$

In Stock, Qty 5

0

28

Echo 89016841030

LABEL - CAUTION
(Superseded to 89016841031)

$2.49

$

Usually ships in 2-4 days

0

29

Echo 69900023532

DEBRIS SHIELD KIT - BLADE

Note: INCLUDES ITEMS 24 - 26, 30 & 31

$37.99

$

In Stock, only 2 left!

0

30

Echo 900242-05010

SCREW 5×10

$0.99

$

In Stock, Qty 20+

0

31

Echo 90022005008

SCREW 5×8

$0.99

$

In Stock, only 3 left!

0

32

Echo 69900040831

SHIELD ASSY

$30.99

$

In Stock, only 3 left!

0

33

Echo 900242-05016

SCREW 5×16

Note: INCLUDES ITEMS 33 - 36

$0.99

$

In Stock, only 4 left!

0

34

Echo 69901644330

CUTTER, LINE
(Superseded to C554000080)

$4.49

$

In Stock, Qty 20+

0

35

Echo 89016844830

LABEL, CAUTION

$3.99

$

Usually ships in 2-4 days

0

36

Echo C552000110

PLATE, SHIELD Ø49.5 MM
(Superseded to C552000240)

$2.99

$

In Stock, only 3 left!

0

37

Echo X602000020

T-WRENCH 17x-19 L200

$4.49

$

In Stock, Qty 7

0

38

Echo 895112-00330

SPANNER 8×10

$0.99

$

In Stock, Qty 6

0

39

Echo 897518-01131

TOOL, LOCKING 5×120 MM

$

$

Not available

40

Echo 898502-01130

PIN, COTTER 2×22 (PKG. OF 10)

$1.99

$

In Stock, only 3 left!

0
