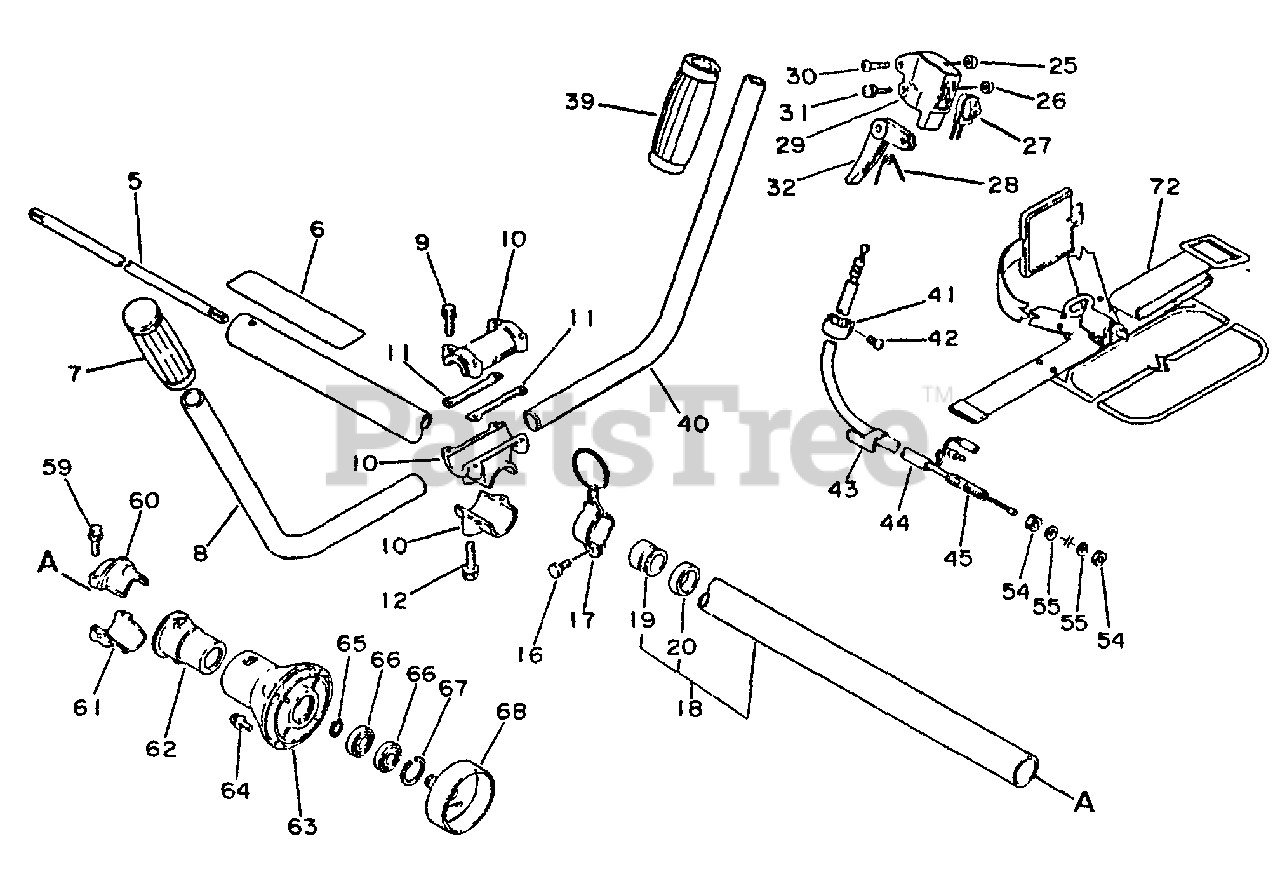

SRM-3010 - Echo String Trimmer (SN: 001001 - 021090) Driveshaft, Throttle, Stop Switch, Handles, Clutch Housing, Harness Parts Diagram

String Trimmer

Driveshaft, Throttle, Stop Switch, Handles, Clutch Housing, Harness Parts Diagram

  • Title

5

Echo 61001106230

DRIVESHAFT

$55.99

$

Usually ships in 2-4 days

0

6

Echo 89016007530

LABEL
(Superseded to Discontinued)

$

$

Not available

7

Echo 351311-02330

GRIP, HANDLE

$7.49

$

In Stock, only 1 left!

0

8

Echo 351210-05530

HANDLE, LEFT

$

$

Not available

10

Echo 35130104130

BRACKET ASSY, HANDLE

$37.99

$

Usually ships in 2-4 days

0

9

Echo 90016205025

BOLT 5×25

$0.99

$

In Stock, Qty 20+

0

11

Echo 35131904130

WASHER

$0.99

$

Usually ships in 2-4 days

0

12

Echo 90016206030

BOLT 6×30

$1.99

$

Usually ships in 2-4 days

0

16

Echo 30120005230

HANGER KIT
(Superseded to P021012660)

$6.99

$

In Stock, only 3 left!

0

17

Echo 90010005012

BOLT 5×12

$0.99

$

Usually ships in 2-4 days

0

18

Echo 61020640430

MAIN PIPE ASSY
(Superseded to 61020643130)

$146.99

$

Usually ships in 2-4 days

0

19

Echo 61010504930

STOPPER

$27.99

$

Usually ships in 2-4 days

0

20

Echo 61011204930

BUSHING

$3.99

$

Usually ships in 2-4 days

0

25

Echo 433020-00830

LOCKNUT - 5
(Superseded to 90056000005)

$1.49

$

In Stock, Qty 14

0

26

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

27

Echo 16340041030

SWITCH, ON-OFF

$13.99

$

Usually ships in 2-4 days

0

28

Echo 17804305230

SPRING

$0.99

$

In Stock, only 3 left!

0

29

Echo 17802422130

BRACKET, THROTTLE
(Superseded to 17802441830)

$8.49

$

Usually ships in 2-4 days

0

30

Echo 17811005330

SCREW

$0.99

$

In Stock, Qty 11

0

31

Echo 90024205030

SCREW 5×30

$0.99

$

In Stock, only 2 left!

0

32

Echo 17801005330

TRIGGER, THROTTLE
(Superseded to Discontinued)

$

$

Not available

39

Echo 35131522130

GRIP

$12.99

$

Usually ships in 2-4 days

0

40

Echo 35101005530

HANDLE

$33.99

$

Usually ships in 2-4 days

0

41

Echo 17810605330

CLAMP

$5.99

$

Usually ships in 2-4 days

0

42

Echo 90022005010

SCREW 5×10

$0.99

$

In Stock, Qty 7

0

43

Echo 17811104930

BRACKET

$1.99

$

Usually ships in 2-4 days

0

44

Echo 17812741030

PIPE

$2.99

$

Usually ships in 2-4 days

0

45

Echo 17800141030

CABLE, THROTTLE
(Superseded to Discontinued)

$

$

Not available

54

Echo 900502-00006

NUT M6

$0.99

$

In Stock, Qty 12

0

55

Echo 90060000006

WASHER 6.5×11.5×0.8

$0.99

$

In Stock, Qty 20+

0

59

Echo 900142-05025

BOLT - 5×25

$0.99

$

In Stock, Qty 9

0

60

Echo 61092240430

HOLDER
(Superseded to Discontinued)

$

$

Not available

61

Echo 61092340430

HOLDER
(Superseded to Discontinued)

$

$

Not available

62

Echo 61091040430

CUSHION

$7.49

$

Usually ships in 2-4 days

0

63

Echo 61020541030

CASE, CLUTCH

$92.99

$

Usually ships in 2-4 days

0

64

Echo 90014205016

BOLT

$0.99

$

Usually ships in 2-4 days

0

65

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 20+

0

66

Echo 90080806001

BEARING, BALL 6001
(Superseded to 90080206001)

$11.99

$

In Stock, only 2 left!

0

67

Echo 90070200028

RING, SNAP 28

$1.99

$

In Stock, Qty 20+

0

68

Echo 17500540430

DRUM, CLUTCH

$53.99

$

Usually ships in 2-4 days

0

72

Echo 30100105330

SHOULDER STRAP ASSY
(Superseded to 30100048930)

$25.99

$

In Stock, only 2 left!

0
