SRM-302 ADX - Echo String Trimmer Clutch Parts Diagram

String Trimmer

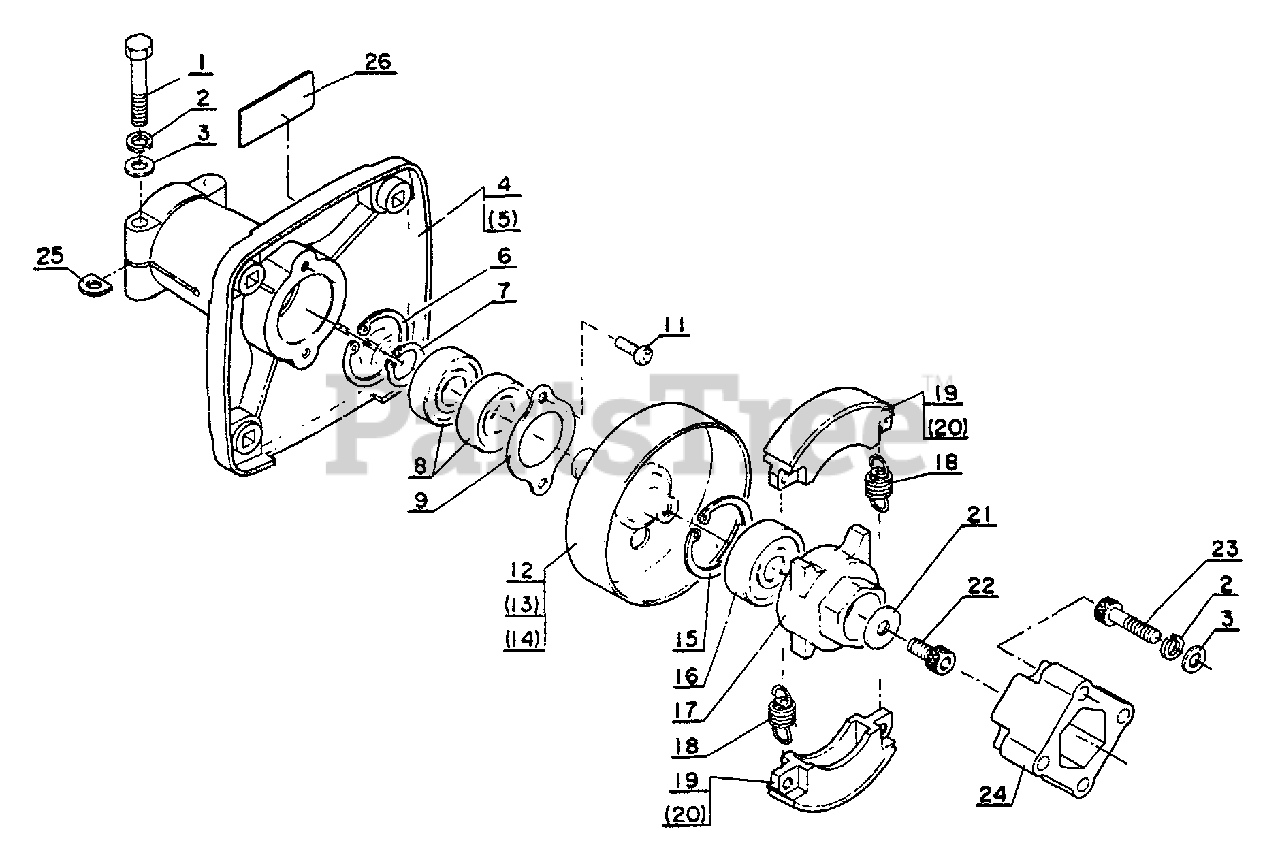

Clutch Parts Diagram

  • Title

1

Echo 90010005030

BOLT - 5X30

$0.99

$

Usually ships in 2-4 days

0

2

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, only 4 left!

0

3

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

4

Echo 61020504930

CASE, CLUTCH
(Superseded to Discontinued)

$

$

Not available

5

------------------

N/A

$

$

Not available

6

Echo 90070200028

RING, RETAINING - 28

$1.49

$

In Stock, Qty 18

0

7

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 15

0

8

Echo 90080206001

BEARING, BALL - 6001 DDU
(Superseded to 9404206001)

$9.99

$

In Stock, only 2 left!

0

9

Echo 61023404130

RETAINER
(Superseded to Discontinued)

$

$

Not available

11

Echo 90022004010

SCREW - 4X10

$0.99

$

Usually ships in 2-4 days

0

12

Echo 17500504130

DRUM, CLUTCH
(Superseded to Discontinued)

$

$

Not available

13

------------------

N/A

$

$

Not available

14

------------------

N/A

$

$

Not available

15

Echo 90070200030

RING, RETAINING - 30

$2.49

$

In Stock, only 4 left!

0

16

Echo 90081206200

BEARING, BALL - 6200

$12.99

$

Usually ships in 2-4 days

0

Echo 17500004130

CLUTCH ASSY
(Superseded to 17500004131)

$

$

Not available

17

Echo 17501604130

HUB, CLUTCH
(Superseded to Discontinued)

$

$

Not available

18

Echo 17501804130

SPRING, CLUTCH
(Superseded to Discontinued)

$

$

Not available

19

Echo 17500904130

SHOE, CLUTCH
(Superseded to 17500904131)

$

$

Not available

20

------------------

N/A

$

$

Not available

21

Echo 17721402830

WASHER - 5

$0.99

$

In Stock, Qty 10

0

22

Echo 90010505012

SCREW - 5X12

$1.49

$

In Stock, Qty 20+

0

23

Echo 90010505025

SCREW - 5X25

$1.49

$

In Stock, Qty 20+

0

24

Echo 60001004130

COUPLING

$9.49

$

Usually ships in 2-4 days

0

25

Echo 61023904130

SHIM

$0.99

$

In Stock, Qty 7

0

26

------------------

N/A

$

$

Not available
