SRM-302 ADX - Echo String Trimmer Driveshaft, Handles Parts Diagram

String Trimmer

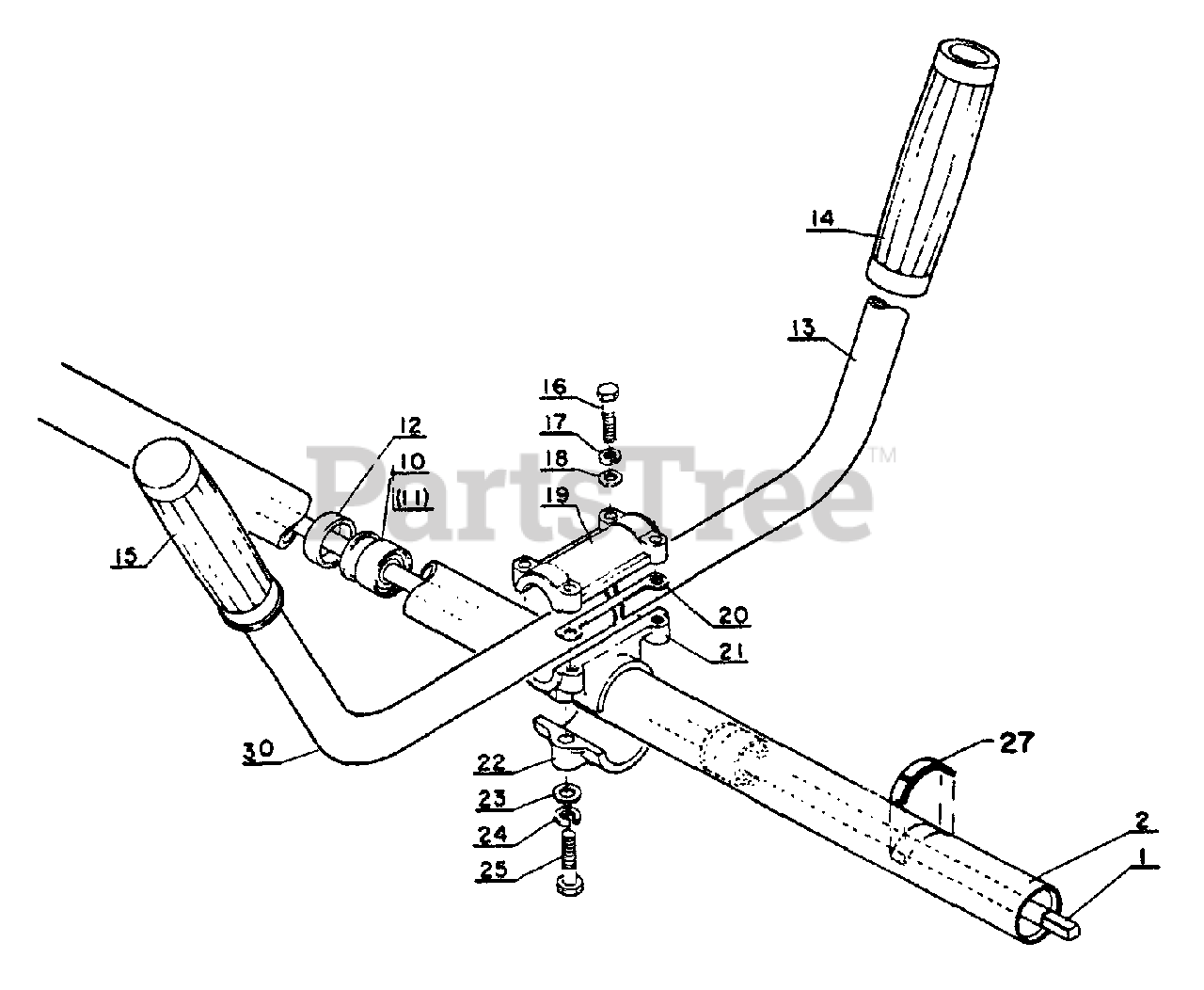

Driveshaft, Handles Parts Diagram

  • Title

1

Echo 61001104130

DRIVESHAFT
(Superseded to Discontinued)

$

$

Not available

2

Echo 61020604930

PIPE, MAIN
(Superseded to Discontinued)

Note: Includes ITEMS 10-12

$

$

Not available

10

Echo 61010504930

STOPPER

$27.99

$

Usually ships in 2-4 days

0

11

N/A

$

$

Not available

12

Echo 61011204930

BUSHING

$3.99

$

Usually ships in 2-4 days

0

13

Echo 35101005530

HANDLE

Note: Includes ITEMS 14-15

$33.99

$

Usually ships in 2-4 days

0

14

Echo 35131504230

GRIP, HANDLE
(Superseded to 35131527930)

$6.49

$

In Stock, only 2 left!

0

15

Echo 351311-02330

GRIP, HANDLE

$7.49

$

In Stock, only 2 left!

0

16

Echo 90010005025

BOLT - 5×25

$3.49

$

Usually ships in 2-4 days

0

17

Echo 900605-00005

WASHER, SPRING 5

$0.99

$

In Stock, Qty 9

0

18

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

19

Echo 35130104130

BRACKET ASSY, HANDLE

$37.99

$

Usually ships in 2-4 days

0

21

Echo 35130104130

BRACKET ASSY, HANDLE

$37.99

$

Usually ships in 2-4 days

0

22

Echo 35130104130

BRACKET ASSY, HANDLE

$37.99

$

Usually ships in 2-4 days

0

20

Echo 35131904130

WASHER

$0.99

$

Usually ships in 2-4 days

0

23

Echo 90060000006

WASHER 6.5×11.5×0.8

$0.99

$

In Stock, Qty 20+

0

24

Echo 90060500006

WASHER, SPRING 6

$0.99

$

In Stock, Qty 14

0

25

Echo 90010006030

BOLT - 6×30
(Superseded to Discontinued)

$

$

Not available

27

Echo 890152-04930

LABEL - ALIGNMENT

$0.99

$

In Stock, Qty 11

0

30

Echo 351210-05530

HANDLE, LEFT

$

$

Not available
