SRM-302 ADX - Echo String Trimmer Fan Housing Parts Diagram

String Trimmer

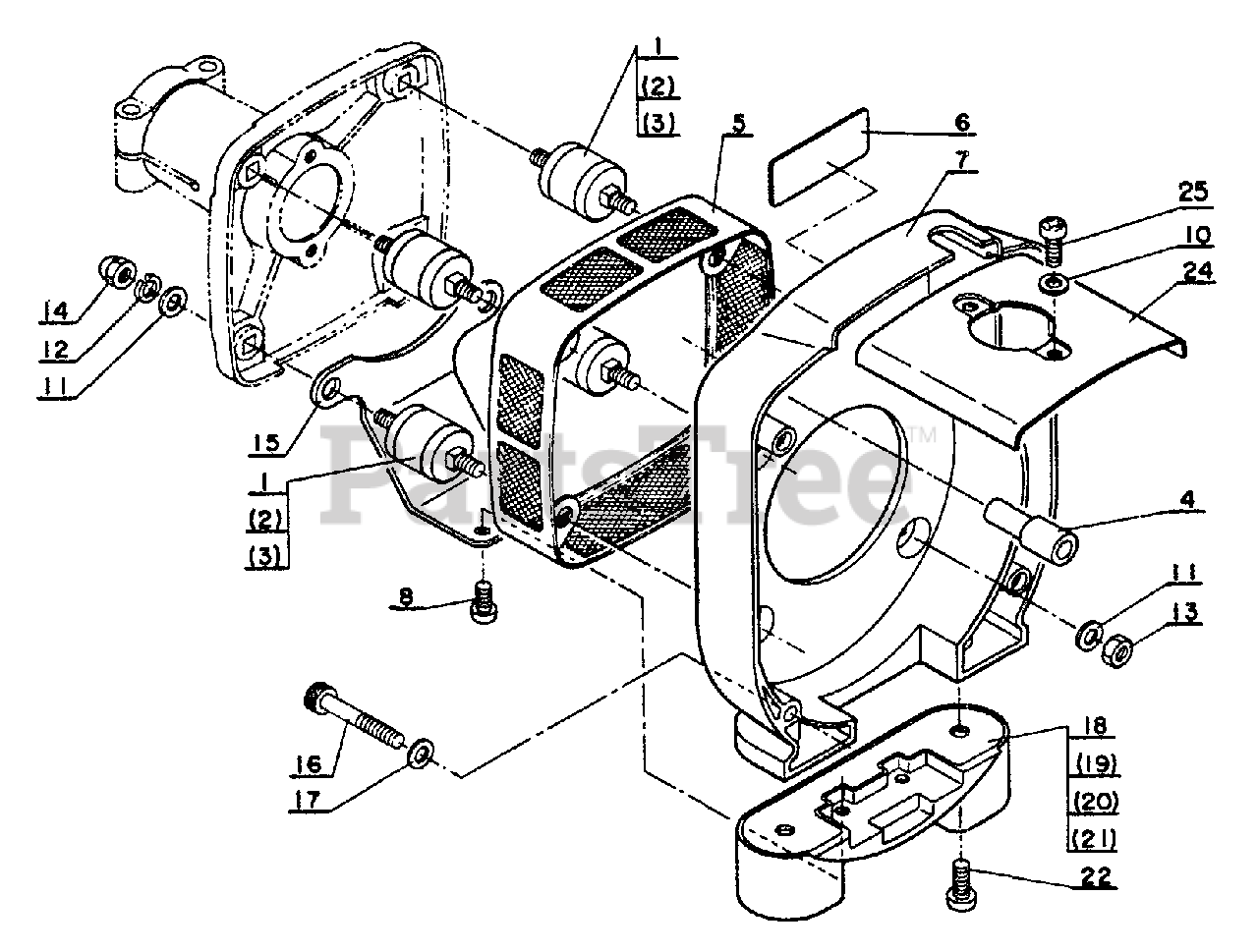

Fan Housing Parts Diagram

  • Title

1

Echo 61090504930

CUSHION - UPPER
(Superseded to Discontinued)

$

$

Not available

2

N/A

$

$

Not available

3

N/A

$

$

Not available

4

Echo 17812104930

TUBE
(Superseded to Discontinued)

$

$

Not available

5

Echo 10061604931

SEAL, DUST
(Superseded to Discontinued)

$

$

Not available

6

Echo 89001204931

MODEL PLATE
(Superseded to Discontinued)

$

$

Not available

7

Echo 10151104932

CASE, FAN
(Superseded to Discontinued)

$

$

Not available

8

Echo 90022004012

SCREW 4×12

$0.99

$

Usually ships in 2-4 days

0

10

Echo 90060000004

WASHER 4 MM

$0.99

$

In Stock, Qty 9

0

11

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

12

Echo 900605-00005

WASHER, SPRING 5

$0.99

$

In Stock, Qty 9

0

13

Echo 433020-00830

LOCKNUT - 5
(Superseded to 90056000005)

$1.49

$

In Stock, Qty 14

0

14

Echo 21041901110

NUT - 5
(Superseded to 90053000005)

$0.99

$

In Stock, Qty 9

0

15

Echo 61091704130

CUSHION SUPPORTER
(Superseded to Discontinued)

$

$

Not available

16

Echo 90010505035

SCREW - 5×35

$1.49

$

Usually ships in 2-4 days

0

17

Echo 10024702830

WASHER
(Superseded to Discontinued)

$

$

Not available

18

Echo 61090604930

CUSHION - LOWER
(Superseded to Discontinued)

$

$

Not available

19

N/A

$

$

Not available

20

N/A

$

$

Not available

21

N/A

$

$

Not available

22

Echo 90022005012

SCREW 5×12

$0.99

$

Usually ships in 2-4 days

0

24

Echo 10151404930

COVER, ENGINE
(Superseded to Discontinued)

$

$

Not available

25

Echo 90022004008

SCREW 4×8

$0.99

$

In Stock, Qty 6

0
