SRM-302 ADX - Echo String Trimmer Gear Case Parts Diagram

String Trimmer

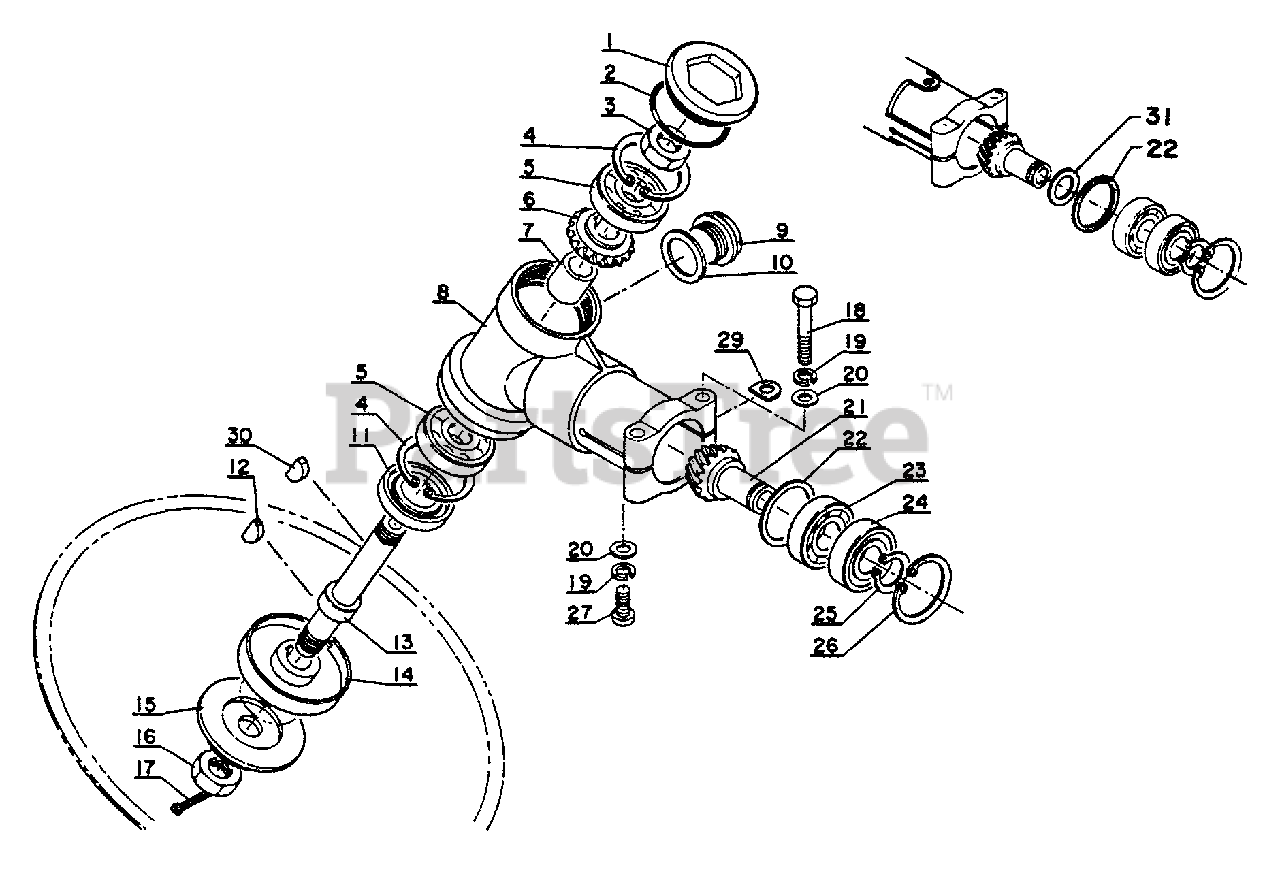

Gear Case Parts Diagram

  • Title

Echo 61040004630

GEAR CASE ASSY
(Superseded to Discontinued)

$

$

Not available

1

Echo 61043104130

COVER, GEAR CASE
(Superseded to Discontinued)

$

$

Not available

2

Echo 61043204130

O-RING
(Superseded to Discontinued)

$

$

Not available

3

Echo 90050200010

NUT 3N-10
(Superseded to Discontinued)

$

$

Not available

4

Echo 90070200030

E-RING 30

$2.49

$

Usually ships in 2-4 days

0

5

Echo 90081006200

BEARING, BALL 6200

$12.99

$

In Stock, only 1 left!

0

6

Echo 61030004630

GEAR SET
(Superseded to Discontinued)

$

$

Not available

21

Echo 61030004630

GEAR SET
(Superseded to Discontinued)

$

$

Not available

7

Echo 61031504130

SPACER
(Superseded to Discontinued)

$

$

Not available

8

Echo 61041004130

CASE, GEAR
(Superseded to Discontinued)

$

$

Not available

9

Echo 61051001930

FITTING, GREASE

$5.99

$

In Stock, only 1 left!

0

10

Echo 61051101230

GASING, GEAR

$0.99

$

Usually ships in 2-4 days

0

11

Echo 10021200120

SEAL, OIL

$6.49

$

Usually ships in 2-4 days

0

12

Echo 61032502730

KEY

$1.99

$

In Stock, only 2 left!

0

13

Echo 61031004130

DRIVESHAFT
(Superseded to Discontinued)

$

$

Not available

14

Echo 61031304130

PLATE, ADAPTER - UPPER
(Superseded to Discontinued)

$

$

Not available

15

Echo 61031404130

PLATE, ADAPTER - LOWER
(Superseded to 61031404131)

$10.99

$

In Stock, Qty 8

0

16

Echo 61032002630

NUT - 10 -- LEFT HAND
(Superseded to 90051100010)

$1.99

$

In Stock, Qty 20+

0

17

Echo 900300-20022

PIN, COTTER 2×22

Note: BULK OPTION: 89850201130 - 10 PACK

$0.99

$

In Stock, Qty 14

0

19

Echo 900605-00005

WASHER, SPRING 5

$0.99

$

In Stock, Qty 9

0

20

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

22

Echo 61031604130

WASHER

$0.99

$

Usually ships in 2-4 days

0

23

Echo 90080006001

BEARING, BALL 6001
(Superseded to 90080036001)

$11.99

$

In Stock, Qty 9

0

24

Echo 90080106001

BEARING, BALL 6001
(Superseded to 90080206001)

$11.99

$

In Stock, only 2 left!

0

25

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 20+

0

26

Echo 90070200028

RING, SNAP 28

$1.99

$

In Stock, Qty 20+

0

27

Echo 90022005010

SCREW 5×10

$0.99

$

In Stock, Qty 7

0

30

Echo 10013101620

KEY

$3.49

$

Usually ships in 2-4 days

0

18

Echo 90010005030

BOLT 5×30

$0.99

$

Usually ships in 2-4 days

0

19

Echo 900605-00005

WASHER, SPRING 5

$0.99

$

In Stock, Qty 9

0

20

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

29

Echo 610239-04130

D-WASHER

$0.99

$

In Stock, Qty 20+

0

31

Echo 61031705330

WASHER

$0.99

$

Usually ships in 2-4 days

0
