SRM-310 S - Echo String Trimmer (SN: 03001001 - 03999999) Clutch, Engine Cover, Fan Case Parts Diagram

String Trimmer

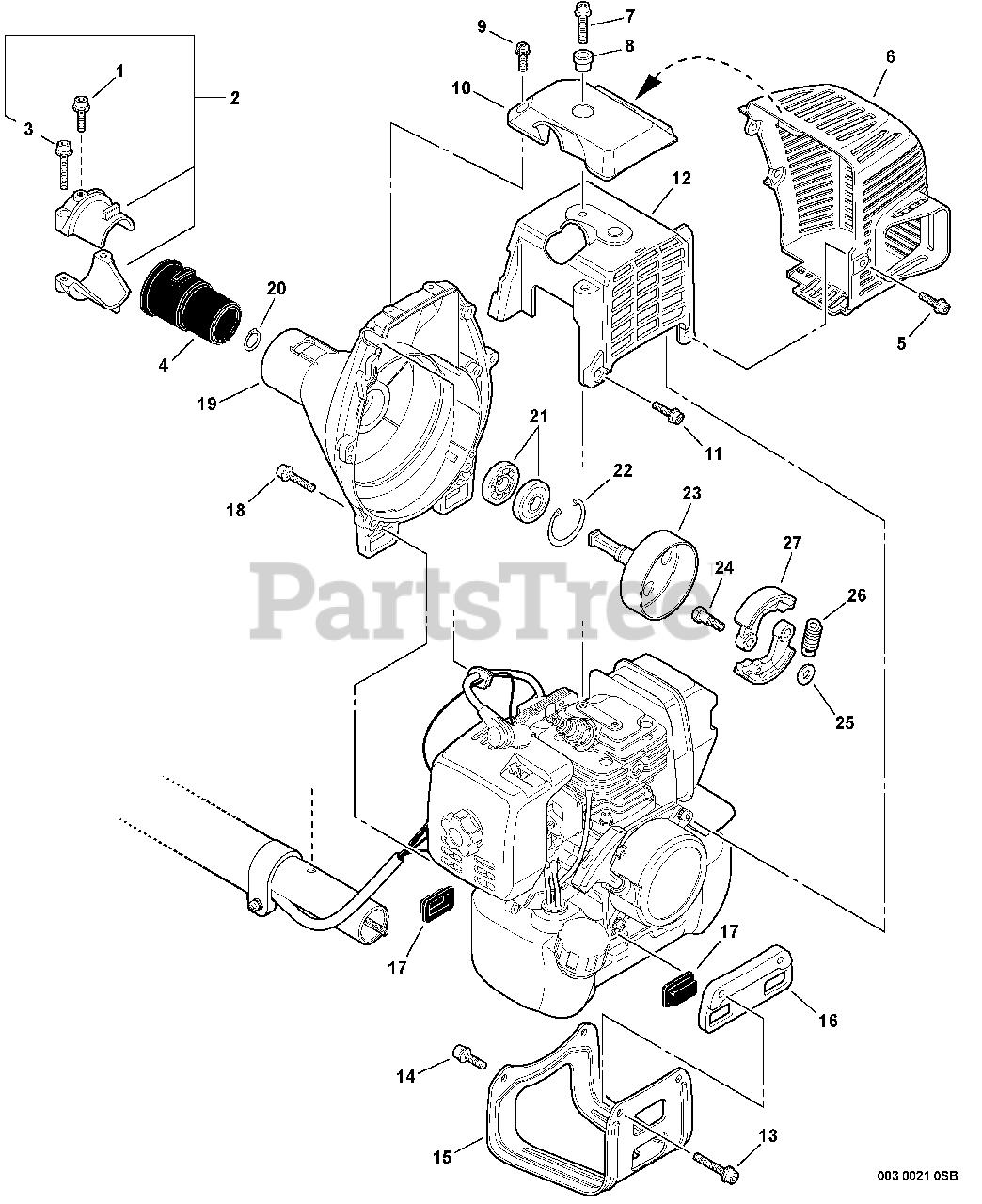

Clutch, Engine Cover, Fan Case Parts Diagram

  • Title

1

Echo 90016205012

BOLT 5×12

$0.99

$

In Stock, Qty 20+

0

2

Echo 61090355430

RETAINER KIT

Note: Includes ITEM 3

$21.99

$

Usually ships in 2-4 days

0

3

Echo 90016205025

BOLT 5×25

$0.99

$

In Stock, Qty 20+

0

4

Echo 61091055730

CUSHION

$9.99

$

Usually ships in 2-4 days

0

5

Echo 90010605014

BOLT 5×14

$1.49

$

In Stock, Qty 20+

0

6

Echo A320000100

COVER, MUFFLER

$13.99

$

In Stock, only 3 left!

0

7

Echo 90010605012

BOLT 5×12

$1.49

$

In Stock, Qty 20+

0

8

Echo V353000020

COLLAR 5

$1.99

$

In Stock, Qty 20+

0

9

Echo 90023804014

SCREW 4×14

$0.99

$

In Stock, Qty 6

0

10

Echo A162000030

GUARD, TOP
(Superseded to Discontinued)

$

$

Not available

11

Echo 90010605012

BOLT 5×12

$1.49

$

In Stock, Qty 20+

0

12

Echo A160000360

COVER, ENGINE

$26.99

$

Usually ships in 2-4 days

0

13

Echo 90016205020

BOLT 5×20

$1.49

$

In Stock, Qty 20+

0

14

Echo 90016205012

BOLT 5×12

$0.99

$

In Stock, Qty 20+

0

15

Echo 30511055830

GUARD, FUEL TANK

$42.99

$

Usually ships in 2-4 days

0

16

Echo 13191055430

BRACKET, FUEL TANK

$19.99

$

Usually ships in 2-4 days

0

17

Echo 13192055430

CUSHION, FUEL TANK

$3.99

$

In Stock, only 4 left!

0

18

Echo 90016205020

BOLT 5×20

$1.49

$

In Stock, Qty 20+

0

19

Echo A172000210

COVER, FAN

$71.99

$

Usually ships in 2-4 days

0

20

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 20+

0

21

Echo 9405106001

BEARING, BALL 6001
(Superseded to 9406106001)

$7.49

$

In Stock, Qty 20+

0

22

Echo 90070200028

RING, SNAP 28

$1.99

$

In Stock, Qty 20+

0

23

Echo 17500546430

DRUM, CLUTCH

$73.99

$

Usually ships in 2-4 days

0

24

Echo 17504646430

BOLT, CLUTCH M6

$7.99

$

Usually ships in 2-4 days

0

25

Echo 17504805530

WASHER 6.2×19×1.0

$1.99

$

In Stock, Qty 20+

0

26

Echo 17501827932

SPRING, TORSION
(Superseded to 17501849932)

$4.49

$

Usually ships in 2-4 days

0

27

Echo 17500946431

SHOE, CLUTCH
(Superseded to A553000000)

$29.99

$

Usually ships in 2-4 days

0
