SRM-3100 - Echo String Trimmer (Type 2E) Driveshaft, Handles, Throttle, Ignition Switch, Shoulder Harness Parts Diagram

String Trimmer (Type 2E)

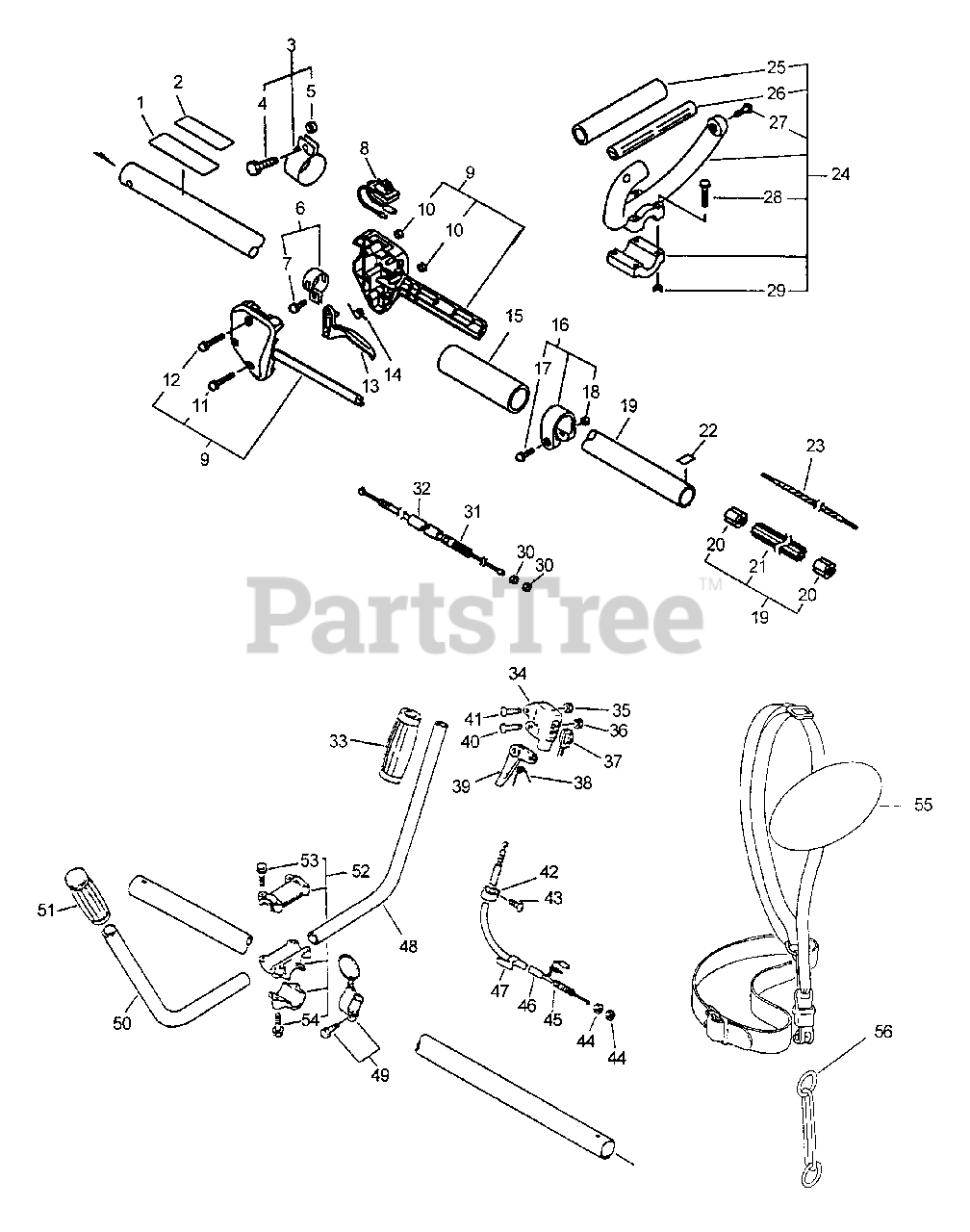

Driveshaft, Handles, Throttle, Ignition Switch, Shoulder Harness Parts Diagram

  • Title

1

Echo 89016054130

LABEL, CAUTION

$1.49

$

Usually ships in 2-4 days

0

2

Echo 89017740630

LABEL, CAUTION
(Superseded to 89022809560)

$0.99

$

In Stock, only 2 left!

0

3

Echo 301207-08930

HOOK

Note: INCLUDES ITEMS 4 & 5

$5.99

$

Usually ships in 2-4 days

0

4

Echo 900100-05018

BOLT 5×18

$0.99

$

In Stock, Qty 8

0

5

Echo 699012-03330

SPACER, GUARD

$1.99

$

In Stock, Qty 13

0

6

Echo 301200-29430

CLAMP KIT
(Superseded to 30120029431)

Note: Includes ITEM 7

$11.99

$

In Stock, only 2 left!

0

7

Echo 900242-05014

SCREW 5×14

$0.99

$

In Stock, Qty 20+

0

8

Echo A440000280

SWITCH, ON-OFF

$14.99

$

In Stock, only 2 left!

0

9

Echo 17800352130

HANDLE KIT, CONTROL

Note: Includes ITEMS 10-12

$5.99

$

In Stock, only 3 left!

0

10

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

11

Echo 900242-05025

SCREW 5×25

$0.99

$

In Stock, Qty 20+

0

12

Echo 90024205035

SCREW 5×35

$0.99

$

In Stock, Qty 20+

0

13

Echo 17801052130

TRIGGER, THROTTLE

$4.49

$

In Stock, Qty 20+

0

14

Echo 178043-42230

SPRING, TORSION

$0.99

$

In Stock, Qty 20+

0

15

Echo 35121352130

GRIP, HANDLE

$11.99

$

In Stock, Qty 16

0

16

Echo 61027252130

CLAMP KIT

Note: Includes ITEMS 17-18

$11.99

$

In Stock, only 2 left!

0

17

Echo 90024205028

SCREW 5×28

$0.99

$

In Stock, Qty 6

0

18

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

19

Echo 61020655730

MAIN PIPE ASSY
(Superseded to Discontinued)

Note: INCLUDES ITEMS 20 & 21

$

$

Not available

20

Echo 61024644730

STOPPER

$1.49

$

In Stock, Qty 20+

0

21

Echo C507000260

LINER, FLEXIBLE 21.6×1420
(Superseded to C507000430)

$30.99

$

In Stock, Qty 7

0

22

Echo 890152-04930

LABEL - ALIGNMENT

$0.99

$

In Stock, Qty 11

0

23

Echo 61001344730

DRIVESHAFT - FLEXIBLE L= 1522
(Superseded to C506000390)

$20.99

$

In Stock, only 3 left!

0

24

Echo 35120152130

LOOP HANDLE ASSY

Note: INCLUDES ITEMS 25 - 29

$78.99

$

Usually ships in 2-4 days

0

25

Echo 35121351730

GRIP, HANDLE

$9.99

$

In Stock, only 2 left!

0

26

Echo 35121051730

HANDLE

$5.49

$

Usually ships in 2-4 days

0

27

Echo 90024605030

SCREW 5×30

$0.99

$

Usually ships in 2-4 days

0

28

Echo 90024205035

SCREW 5×35

$0.99

$

In Stock, Qty 20+

0

29

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

30

Echo 900502-00006

NUT M6

$0.99

$

In Stock, Qty 12

0

31

Echo 17800151030

CABLE, THROTTLE

$20.99

$

In Stock, only 2 left!

0

32

Echo 17812751030

TUBE - VINYL

$0.99

$

Usually ships in 2-4 days

0

33

Echo 35131522130

GRIP

$12.99

$

Usually ships in 2-4 days

0

34

Echo 17802441830

BRACKET, THROTTLE
(Superseded to 17802451830)

$8.49

$

Usually ships in 2-4 days

0

35

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

36

Echo 90056000005

NUT, LOCK M5

$1.49

$

In Stock, Qty 14

0

37

Echo 16340048030

SWITCH, ON-OFF
(Superseded to A440000310)

$12.99

$

Usually ships in 2-4 days

0

38

Echo 17804305230

SPRING

$0.99

$

In Stock, only 3 left!

0

39

Echo 17801006460

TRIGGER, THROTTLE

$5.99

$

In Stock, only 2 left!

0

40

Echo 17811005330

SCREW

$0.99

$

In Stock, Qty 11

0

41

Echo 900242-05025

SCREW 5×25

$0.99

$

In Stock, Qty 20+

0

42

Echo 17810605330

CLAMP

$5.99

$

Usually ships in 2-4 days

0

43

Echo 90022005010

SCREW 5×10

$0.99

$

In Stock, Qty 7

0

44

Echo 900502-00006

NUT M6

$0.99

$

In Stock, Qty 12

0

45

Echo 17800141030

CABLE, THROTTLE
(Superseded to Discontinued)

$

$

Not available

46

Echo 17812741030

PIPE

$2.99

$

Usually ships in 2-4 days

0

47

Echo 17811104930

BRACKET

$1.99

$

Usually ships in 2-4 days

0

48

Echo 35101005530

HANDLE

$33.99

$

Usually ships in 2-4 days

0

49

Echo 30120521330

HOOK
(Superseded to 30120021330)

$3.99

$

In Stock, Qty 20+

0

50

Echo 35121023430

HANDLE, LEFT
(Superseded to Discontinued)

$

$

Not available

51

Echo 351311-02330

GRIP, HANDLE

$7.49

$

In Stock, only 2 left!

0

52

Echo 35130109230

HANDLE BRACKET KIT
(Superseded to P021000460)

Note: INCLUDES ITEMS 53 & 54

$34.99

$

Usually ships in 2-4 days

0

53

Echo 90016205025

BOLT 5×25

$0.99

$

In Stock, Qty 20+

0

54

Echo 900142-06030

BOLT - 6×30

$0.99

$

Usually ships in 2-4 days

0

55

Echo 30100052131

SHOULDER STRAP ASSY
(Superseded to C062000070)

$25.99

$

In Stock, only 2 left!

0

56

Echo 30101652730

RING, HARNESS Ø32

$1.99

$

Usually ships in 2-4 days

0
