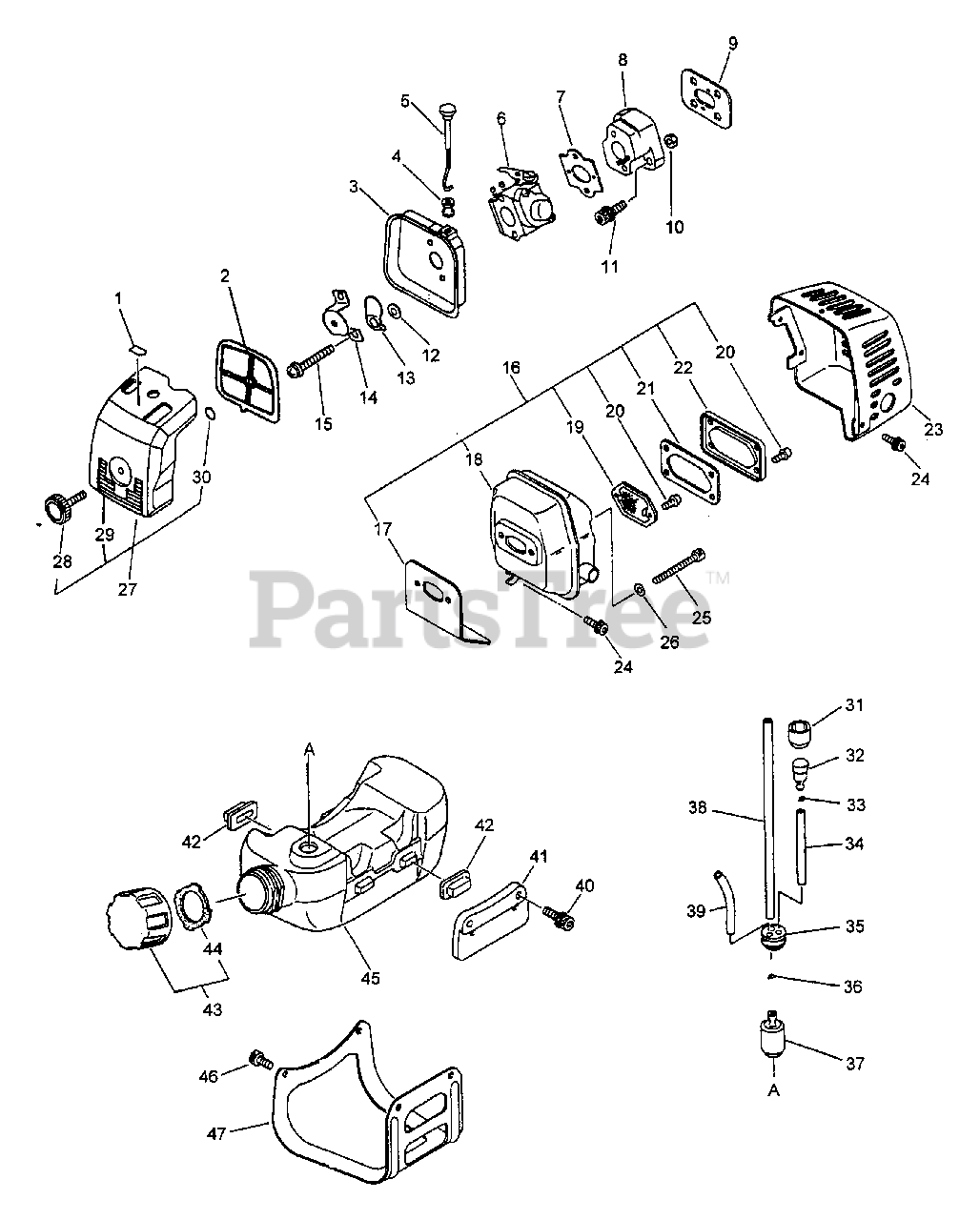

  • Title

1

Echo 89012152130

LABEL, CHOKE
(Superseded to Discontinued)

$

$

Not available

2

Echo 13031051830

FILTER, HEAVY-DUTY AIR

$8.49

$

Usually ships in 2-4 days

0

3

Echo 13031451730

CASE, AIR FILTER
(Superseded to Discontinued)

$

$

Not available

4

Echo 17881005230

GROMMET, CHOKE

$2.49

$

In Stock, only 3 left!

0

5

Echo 17851051730

ROD, CHOKE

$7.99

$

In Stock, only 4 left!

0

6

Echo 12300055730

CARBURETOR - WT-333
(Superseded to 12300055830)

Note: USED ON TYPE 1E ENGINES

$

$

Not available

6

Echo 12300055630

CARBURETOR - WT-344

Note: USED ON NON-TYPE 1E ENGINES

$65.99

$

In Stock, only 1 left!

0

7

Echo 13001005960

GASKET, CARBURETOR

$1.99

$

In Stock, Qty 6

0

8

Echo 13001755630

INSULATOR, INTAKE

$17.99

$

Usually ships in 2-4 days

0

9

Echo 13001055730

GASKET, INTAKE

$2.99

$

In Stock, only 1 left!

0

10

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

11

Echo 90016205025

BOLT 5×25

$0.99

$

In Stock, Qty 20+

0

12

Echo 178516-00830

WASHER 5.2×8×0.8T

$0.99

$

In Stock, Qty 20+

0

13

Echo 17851505060

SHUTTER, CHOKE

$3.49

$

In Stock, only 2 left!

0

14

Echo 12901152130

PLATE, PREVENT
(Superseded to 12901152131)

$6.49

$

In Stock, only 1 left!

0

15

Echo 90016205057

BOLT 5×57

$1.99

$

Usually ships in 2-4 days

0

16

Echo 14580055730

MUFFLER ASSY

Note: Includes ITEMS 17-22

$

$

Not available

17

Echo 14551055730

GASKET, MUFFLER

$11.99

$

Usually ships in 2-4 days

0

18

Echo 14580655730

MUFFLER
(Superseded to Discontinued)

$

$

Not available

19

Echo 14590555730

SCREEN

$6.49

$

Usually ships in 2-4 days

0

20

Echo 900242-04010

SCREW 4×10

$0.99

$

In Stock, Qty 20+

0

21

Echo 14586655730

GASKET, EXHAUST

$6.49

$

Usually ships in 2-4 days

0

22

Echo 14586155730

LID, MUFFLER
(Superseded to 14586155731)

$6.99

$

Usually ships in 2-4 days

0

23

Echo 14562155730

COVER, MUFFLER
(Superseded to Discontinued)

$

$

Not available

24

Echo 90016205012

BOLT 5×12

$0.99

$

In Stock, Qty 20+

0

25

Echo 90010505060

BOLT 5×60

$2.49

$

In Stock, only 3 left!

0

26

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

27

Echo 13030251731

AIR FILTER COVER ASSY
(Superseded to 13030252130)

Note: INCLUDES ITEMS 28-30

$17.99

$

In Stock, only 2 left!

0

28

Echo 13040616331

THUMBSCREW

$6.49

$

Usually ships in 2-4 days

0

29

Echo 13031351731

COVER, AIR FILTER
(Superseded to 13031352130)

$17.99

$

In Stock, only 2 left!

0

30

Echo 90072000003

O-RING 3

$1.49

$

In Stock, only 2 left!

0

31

Echo 13132840630

HOLDER, VENT

$7.49

$

In Stock, Qty 13

0

32

Echo A356000031

VENT ASSY

$9.49

$

In Stock, Qty 20+

0

33

Echo 130111-00530

CLIP 5.5

$0.99

$

In Stock, Qty 20+

0

34

Echo 13201252030

PIPE, VENT - 3×5×50
(Superseded to V471001220)

Note: RePower BULK OPTION: 90014

$1.49

$

In Stock, Qty 9

0

35

Echo V137000030

GROMMET, FUEL
(Superseded to 13211546730)

$2.49

$

In Stock, Qty 20+

0

36

Echo 132013-09820

CLIP 6 MM

$0.99

$

In Stock, Qty 8

0

37

Echo 13120530830

FILTER, FUEL
(Superseded to 13120519830)

$9.99

$

In Stock, Qty 20+

0

38

Echo V471001190

PIPE, FUEL 3x-5x-180
(Superseded to V471001191)

Note: RePower BULK OPTION: 90014

$1.99

$

In Stock, Qty 20+

0

39

Echo 13201056330

PIPE, FUEL RETURN 3×6×90 MM CLEAR

Note: RePower BULK OPTION: 90017

$3.49

$

In Stock, Qty 10

0

40

Echo 90016205020

BOLT 5×20

$1.49

$

In Stock, Qty 20+

0

41

Echo 13191055430

BRACKET, FUEL TANK

$19.99

$

Usually ships in 2-4 days

0

42

Echo 13192055430

CUSHION, FUEL TANK

$3.99

$

In Stock, only 4 left!

0

43

Echo 13100455830

CAP ASSY, FUEL
(Superseded to P200000830)

Note: Includes ITEM 44

$5.49

$

In Stock, only 2 left!

0

44

Echo 131016-55830

GASKET, FUEL CAP

$

$

Not available

45

Echo 13101055430

TANK, FUEL
(Superseded to 13101055431)

$16.99

$

In Stock, only 2 left!

0

46

Echo 90016205012

BOLT 5×12

$0.99

$

In Stock, Qty 20+

0

47

Echo 30511055830

GUARD, FUEL TANK

$42.99

$

Usually ships in 2-4 days

0
