SRM-3110 - Echo String Trimmer (Type 1E) Crankcase, Engine, Fan Case Parts Diagram

String Trimmer (Type 1E)

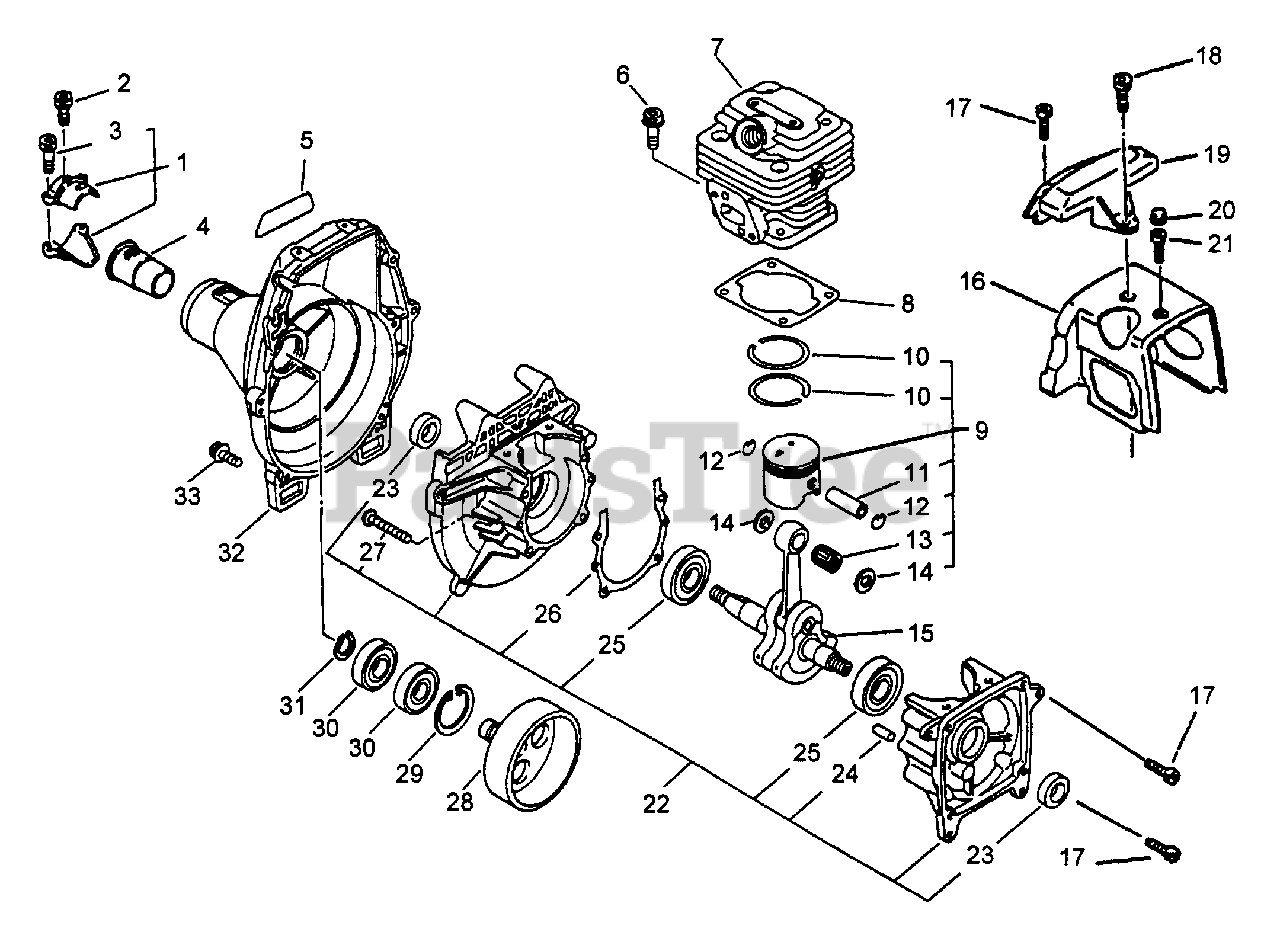

Crankcase, Engine, Fan Case Parts Diagram

  • Title

1

Echo 61090355430

HOLDER KIT

$21.99

$

Usually ships in 2-4 days

0

2

Echo 90016205012

SCREW - 5X12

$0.99

$

In Stock, Qty 20+

0

3

Echo 90016205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

4

Echo 61091055730

CUSHION

$9.99

$

Usually ships in 2-4 days

0

5

Echo 89011848830

LABEL - ECHO
(Superseded to X502000320)

$0.99

$

In Stock, Qty 6

0

6

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

7

Echo 10103455630

CYLINDER

$213.99

$

Usually ships in 2-4 days

0

8

Echo 10101055430

GASKET, CYLINDER

Note: INCLUDED IN GASKET KIT, P/N 88900055730

$3.49

$

Usually ships in 2-4 days

0

9

Echo 10000055430

PISTON KIT
(Superseded to 10000055431)

Note: Includes ITEMS 10-14

$106.99

$

Usually ships in 2-4 days

0

10

Echo 10001116131

RING, PISTON

$8.99

$

In Stock, Qty 5

0

11

Echo 10001327430

PIN, PISTON

$8.99

$

Usually ships in 2-4 days

0

12

Echo 10001503930

RING, RETAINING
(Superseded to 10001503931)

$0.99

$

In Stock, Qty 13

0

13

Echo 10001216131

BEARING, NEEDLE

$13.99

$

In Stock, only 3 left!

0

14

Echo 10001453630

SPACER, PISTON

$6.99

$

Usually ships in 2-4 days

0

15

Echo 10010055430

CRANKSHAFT ASSY

$293.99

$

Usually ships in 2-4 days

0

16

Echo 10151455730

COVER, ENGINE
(Superseded to 10157655730)

$22.99

$

In Stock, only 1 left!

0

17

Echo 90016204014

SCREW - 4X14

$1.49

$

In Stock, Qty 19

0

18

Echo 90016205016

SCREW - 5X16

$1.49

$

In Stock, Qty 20+

0

19

Echo 15990540930

GUARD - TOP

$14.99

$

In Stock, only 1 left!

0

20

Echo 88051609220

SCREW

$4.99

$

Usually ships in 2-4 days

0

21

Echo 90016205012

SCREW - 5X12

$0.99

$

In Stock, Qty 20+

0

22

Echo 10020455430

CRANKCASE KIT

Note: INCLUDES ITEMS 23-27

$414.99

$

Usually ships in 2-4 days

0

23

Echo 10021305530

SEAL, OIL

$7.99

$

In Stock, Qty 16

0

24

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 5

0

25

Echo 9403536201

BEARING, BALL - 6201

$9.99

$

Usually ships in 2-4 days

0

26

------------------

GASKET, CRANKCASE

Note: INCLUDED IN GASKET KIT, P/N 88900055730

$

$

Not available

27

Echo 90016205030

SCREW - 5X30

$1.49

$

In Stock, Qty 6

0

28

Echo 17500555730

DRUM, CLUTCH

Note: SRM-3100/3110 ONLY

$

$

Not available

28

Echo 17500546430

DRUM, CLUTCH

Note: SRM-3100S ONLY

$73.99

$

Usually ships in 2-4 days

0

29

Echo 90070200028

RING, RETAINING - 28

$1.99

$

In Stock, Qty 20+

0

30

Echo 9405106001

BEARING, BALL - 6001
(Superseded to 9406106001)

$7.49

$

In Stock, Qty 20+

0

31

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 20+

0

32

Echo 10151155730

CASE, FAN

$113.99

$

Usually ships in 2-4 days

0

33

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

Echo SB1028

SHORT BLOCK -- SB1028

$344.99

$

Usually ships in 2-4 days

0

Echo 88900055730

GASKET KIT

Note: INCLUDES THE FOLLOWING ITEMS

$23.99

$

Usually ships in 2-4 days

0

Echo 10101055430

GASKET, CYLINDER

$3.49

$

Usually ships in 2-4 days

0

------------------

GASKET, CRANKCASE

$

$

Not available

Echo 13001005960

GASKET, INTAKE

$1.99

$

In Stock, Qty 9

0

Echo 13001055730

GASKET, INTAKE

$2.99

$

In Stock, only 2 left!

0

Echo 14551055730

GASKET, EXHAUST

$11.99

$

Usually ships in 2-4 days

0

Echo 14586655730

GASKET, EXHAUST

$6.49

$

Usually ships in 2-4 days

0

Echo 88900055730

GASKET KIT

$23.99

$

Usually ships in 2-4 days

0
