SRM-340 - Echo String Trimmer (SN: 04001001 - 04999999) Carburetor -- WT-418B Parts Diagram

String Trimmer

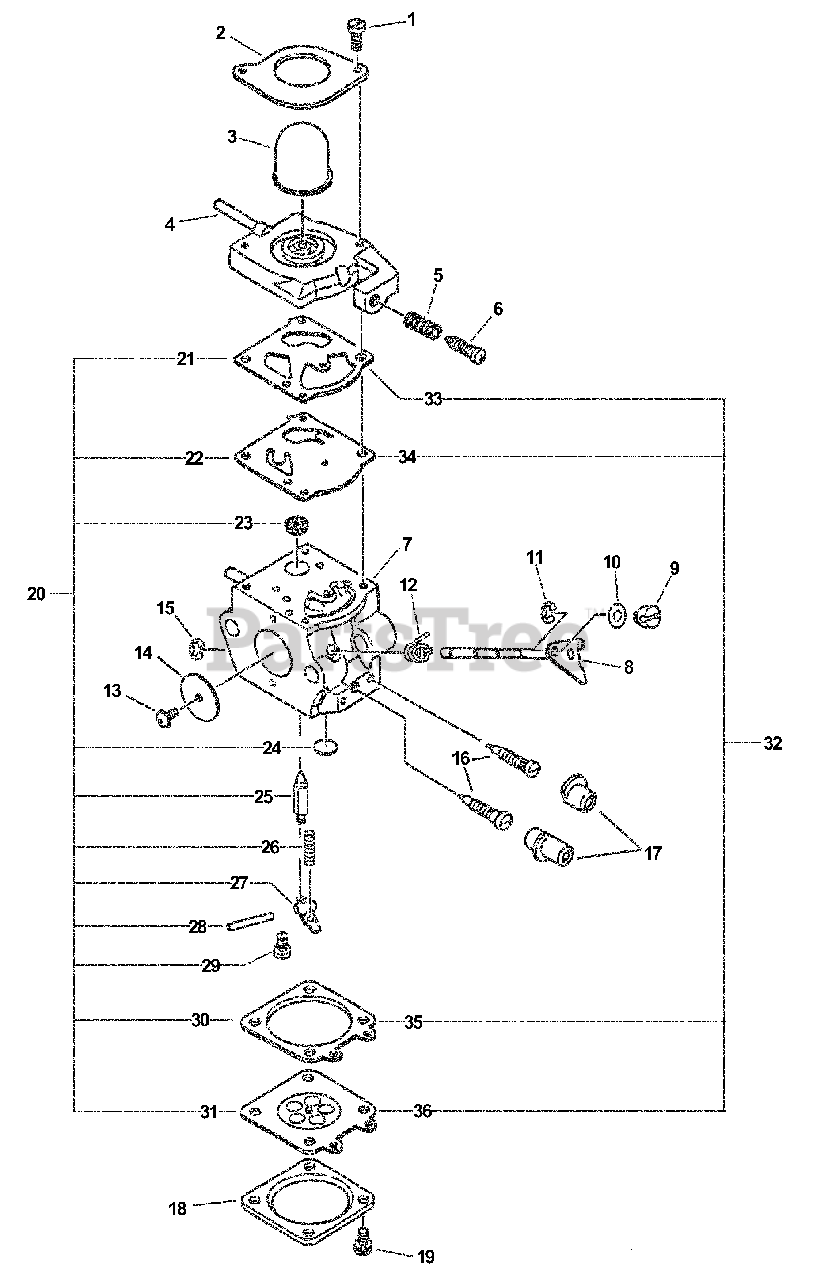

Carburetor -- WT-418B Parts Diagram

  • Title

Echo 12300055832

CARBURETOR

$

$

Not available

1

Echo 12311043130

SCREW

$7.99

$

Usually ships in 2-4 days

0

2

Echo 12314209560

RETAINER, PURGE BULB

$8.49

$

In Stock, only 2 left!

0

3

Echo 12318109560

BULB, PURGE
(Superseded to A263000020)

$5.49

$

In Stock, Qty 13

0

4

Echo 12312443230

COVER, FUEL PUMP

$9.99

$

In Stock, only 2 left!

0

5

Echo 12313304260

SPRING, IDLE ADJUST

$7.49

$

In Stock, only 1 left!

0

6

Echo 12313404260

SCREW, IDLE ADJUST

$2.49

$

In Stock, only 1 left!

0

7

BODY, CARBURETOR

Note: NOT AVAILABLE SEPARATELY

$

$

Not available

8

Echo 12311755830

SHAFT, THROTTLE

$

$

Not available

9

Echo 12317226030

SWIVEL

$2.49

$

Usually ships in 2-4 days

0

10

Echo 12314926030

WASHER

$0.99

$

Usually ships in 2-4 days

0

11

Echo 12317307930

E-RING

$1.49

$

In Stock, only 1 left!

0

12

Echo 12311352130

SPRING, THROTTLE RETURN

$1.99

$

Usually ships in 2-4 days

0

13

Echo 12311403930

SCREW

$1.49

$

In Stock, Qty 8

0

14

Echo 12311623230

VALVE, THROTTLE

$1.99

$

Usually ships in 2-4 days

0

15

Echo 12312715030

E-RING

$0.99

$

In Stock, Qty 5

0

16

Echo 12312003661

NEEDLE, MIXTURE

$4.99

$

In Stock, only 1 left!

0

17

Echo 12315139530

CAP, LIMITER

$0.99

$

Usually ships in 2-4 days

0

18

Echo 12314203930

COVER, METERING DIAPHRAGM

$4.99

$

In Stock, only 1 left!

0

19

Echo 12313002960

SCREW

$1.99

$

In Stock, only 1 left!

0

20

Echo 12310055730

REPAIR KIT

Note: INCLUDES ITEMS 21-31

$24.99

$

Usually ships in 2-4 days

0

21

GASKET, PUMP

$

$

Not available

22

DIAPHRAGM, PUMP

$

$

Not available

23

STRAINER

$

$

Not available

24

PLUG, WELCH

$

$

Not available

25

VALVE, INLET NEEDLE

$

$

Not available

26

SPRING, METERING LEVER

$

$

Not available

27

LEVER, METERING

$

$

Not available

28

PIN, METERING LEVER

$

$

Not available

29

SCREW, METERING LEVER PIN

$

$

Not available

30

GASKET, METERING

$

$

Not available

31

DIAPHRAGM, METERING

$

$

Not available

32

Echo 12310155730

GASKET / DIAPHRAGM KIT

Note: INCLUDES ITEMS 33-36

$11.99

$

Usually ships in 2-4 days

0

33

GASKET, PUMP

$

$

Not available

34

DIAPHRAGM, PUMP

$

$

Not available

35

GASKET, METERING

$

$

Not available

36

DIAPHRAGM, METERING

$

$

Not available
