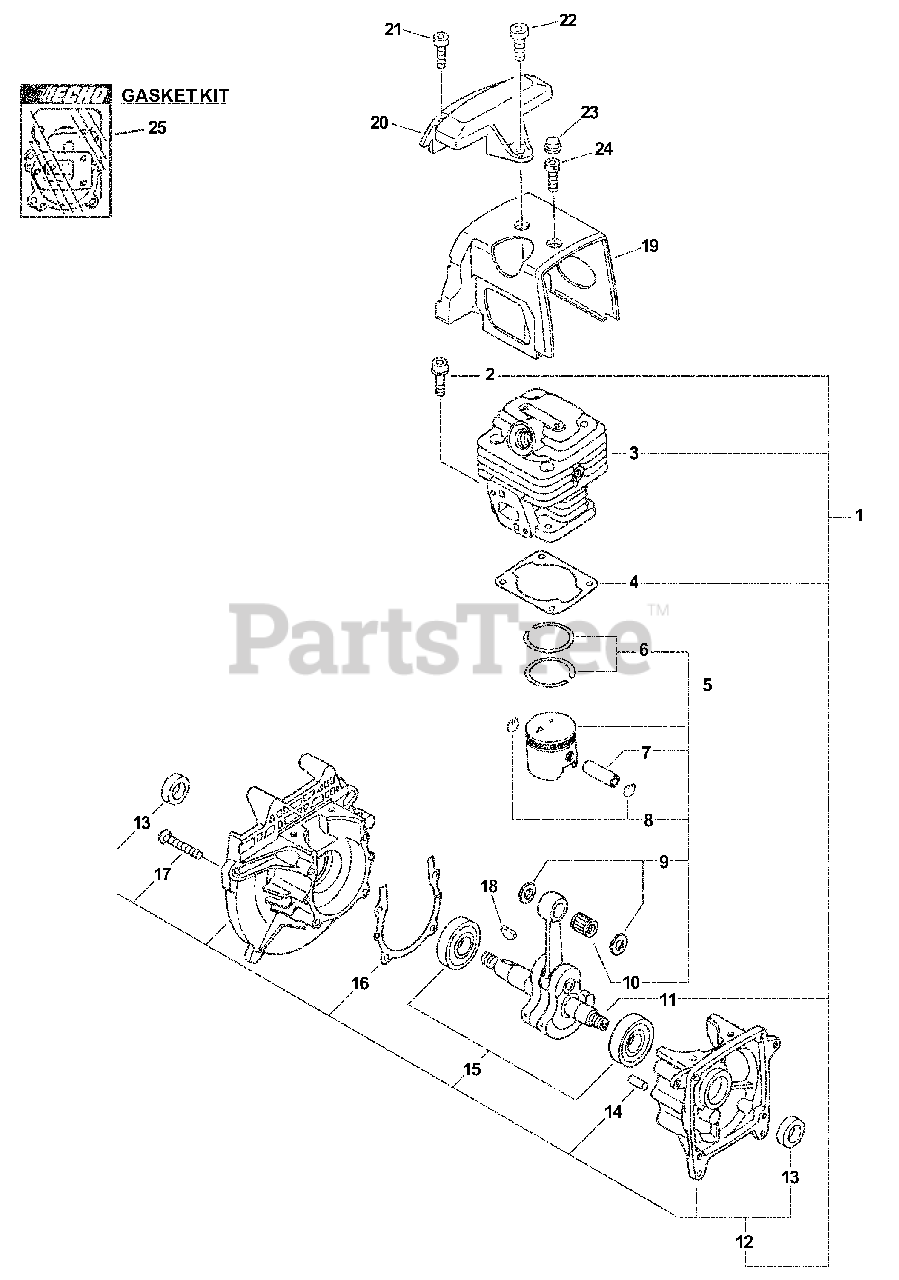

SRM-340 - Echo String Trimmer (SN: 04001001 - 04999999) Engine, Short Block, Cylinder Cover Parts Diagram

String Trimmer

Engine, Short Block, Cylinder Cover Parts Diagram

  • Title

1

Echo SB1029

SHORT BLOCK -- SB1029

Note: INCLUDES ITEMS 2-17; OPTIONAL ENGINE REPOWER

$347.99

$

Usually ships in 2-4 days

0

2

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

3

Echo A130000600

CYLINDER
(Superseded to A130000601)

$154.99

$

Usually ships in 2-4 days

0

4

Echo 10101055430

GASKET, CYLINDER

$3.49

$

Usually ships in 2-4 days

0

5

Echo P021007410

PISTON KIT
(Superseded to P021015780)

Note: Includes ITEMS 6-10

$94.99

$

Usually ships in 2-4 days

0

6

Echo 10001142230

RING, PISTON

$10.99

$

Usually ships in 2-4 days

0

7

Echo 10001327430

PIN, PISTON

$8.49

$

Usually ships in 2-4 days

0

8

Echo 10001503931

RING, RETAINING

$0.99

$

In Stock, Qty 16

0

9

Echo 10001453630

SPACER, PISTON

$6.49

$

Usually ships in 2-4 days

0

10

Echo 10001216131

BEARING, NEEDLE

$12.99

$

Usually ships in 2-4 days

0

11

Echo 10010055430

CRANKSHAFT ASSY

$271.99

$

Usually ships in 2-4 days

0

12

Echo 10020455430

CRANKCASE KIT

Note: Includes ITEMS 13-17

$384.99

$

Usually ships in 2-4 days

0

13

Echo 10021305530

SEAL, OIL

$6.99

$

In Stock, Qty 20+

0

14

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 7

0

15

Echo 9403536201

BEARING, BALL - 6201

$8.99

$

In Stock, Qty 19

0

16

Echo 10024255430

GASKET, CRANKCASE
(Superseded to V102000040)

$4.49

$

Usually ships in 2-4 days

0

17

Echo 90016205030

SCREW - 5X30

$1.49

$

In Stock, Qty 9

0

18

Echo 10014212330

KEY

$1.99

$

In Stock, Qty 16

0

19

Echo 10157655730

COVER, ENGINE

$22.99

$

In Stock, only 1 left!

0

20

Echo 15990540930

GUARD - TOP

$13.99

$

Usually ships in 2-4 days

0

21

Echo 90016204014

SCREW - 4X14

$1.49

$

In Stock, Qty 20+

0

22

Echo 90016205016

SCREW - 5X16

$1.49

$

In Stock, Qty 20+

0

23

Echo 88051609220

SCREW

$4.49

$

Usually ships in 2-4 days

0

24

Echo 90016205012

SCREW - 5X12

$0.99

$

In Stock, Qty 20+

0

25

Echo 88900055730

GASKET KIT

$22.99

$

Usually ships in 2-4 days

0
