SRM-340 - Echo String Trimmer (SN: 04001001 - 04999999) Handle, Ignition Switch, Throttle Cable, Driveshaft Parts Diagram

String Trimmer

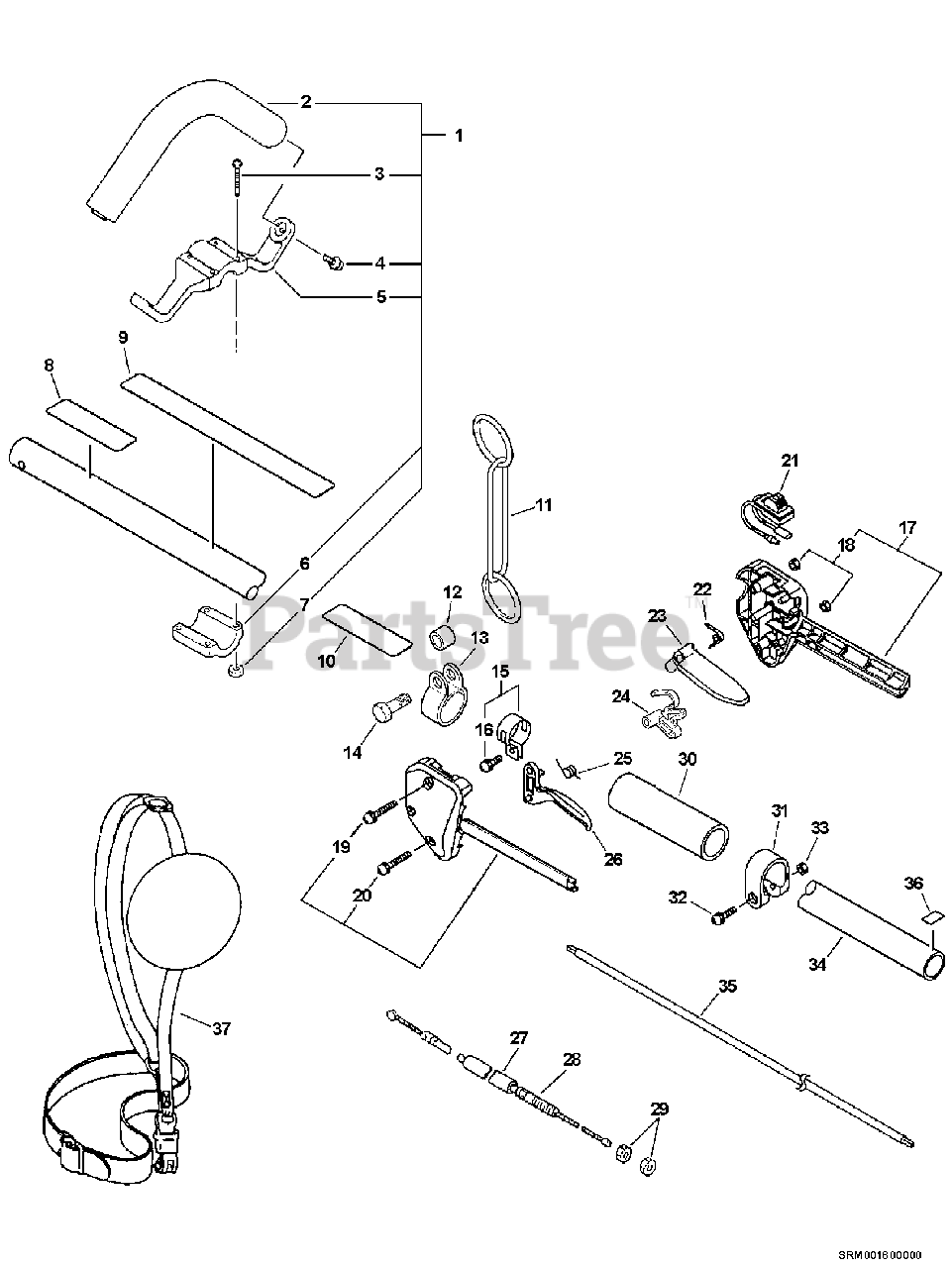

Handle, Ignition Switch, Throttle Cable, Driveshaft Parts Diagram

  • Title

1

Echo 35120107131

HANDLE ASSY
(Superseded to P021041120)

Note: INCLUDES ITEMS 2-7

$79.99

$

Usually ships in 2-4 days

0

2

Echo 35120507130

HANDLE
(Superseded to 35120507131)

$27.99

$

Usually ships in 2-4 days

0

3

Echo 90024205035

SCREW 5×35

$0.99

$

In Stock, Qty 20+

0

4

Echo 900242-05014

SCREW 5×14

$0.99

$

In Stock, Qty 20+

0

5

Echo 35123207130

BRACKET, HANDLE

$26.99

$

Usually ships in 2-4 days

0

6

Echo 35122506930

BRACKET, HANDLE

$7.49

$

In Stock, only 2 left!

0

7

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

8

Echo 89022809560

LABEL, CAUTION

$0.99

$

In Stock, only 2 left!

0

9

Echo 89016054130

LABEL, CAUTION

$1.49

$

Usually ships in 2-4 days

0

9

Echo 89031749030

LABEL, CAUTION
(Superseded to Discontinued)

Note: CANADA MODELS: 04001001-04999999

$

$

Not available

10

Echo X505001930

LABEL, HANDLE LOCATION

$1.49

$

In Stock, Qty 20+

0

11

Echo 301305-24330

HOOK
(Superseded to 30130524330)

$12.99

$

Usually ships in 2-4 days

0

12

Echo 699012-03330

SPACER, GUARD

$1.99

$

In Stock, Qty 13

0

13

Echo 30120707530

HOOK

$6.99

$

Usually ships in 2-4 days

0

14

Echo 900100-05018

BOLT 5×18

$0.99

$

In Stock, Qty 8

0

15

Echo 30120042230

HANGER ASSY

Note: Includes ITEM 16

$10.99

$

Usually ships in 2-4 days

0

16

Echo 900242-05014

SCREW 5×14

$0.99

$

In Stock, Qty 20+

0

17

Echo 17800351830

BRACKET, THROTTLE

Note: INCLUDES ITEMS 18-20

$54.99

$

Usually ships in 2-4 days

0

18

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

19

Echo 90024205035

SCREW 5×35

$0.99

$

In Stock, Qty 20+

0

20

Echo 900242-05025

SCREW 5×25

$0.99

$

In Stock, Qty 20+

0

21

Echo A440000280

SWITCH, ON-OFF

$14.99

$

In Stock, only 2 left!

0

22

Echo 17801352630

SPRING, TORSION

$2.99

$

In Stock, Qty 10

0

23

Echo 17809052632

LEVER, THROTTLE LOCKOUT

$3.99

$

In Stock, Qty 15

0

24

Echo 17801252730

LOCKOUT, THROTTLE

$5.99

$

In Stock, only 4 left!

0

25

Echo 178043-42230

SPRING, TORSION

$0.99

$

In Stock, Qty 20+

0

26

Echo 17801052130

TRIGGER, THROTTLE

$4.49

$

In Stock, Qty 20+

0

27

Echo 17812751030

TUBE - VINYL

$0.99

$

Usually ships in 2-4 days

0

28

Echo 17800156730

CABLE, THROTTLE

$12.99

$

In Stock, only 1 left!

0

29

Echo 900502-00006

NUT M6

$0.99

$

In Stock, Qty 12

0

30

Echo 35121351830

GRIP

$14.99

$

Usually ships in 2-4 days

0

31

Echo 61027251830

BAND

$23.99

$

Usually ships in 2-4 days

0

32

Echo 90024205028

SCREW 5×28

$0.99

$

In Stock, Qty 6

0

33

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

34

Echo 61020655630

PIPE, MAIN

$234.99

$

Usually ships in 2-4 days

0

35

Echo 61001106230

DRIVESHAFT

$55.99

$

Usually ships in 2-4 days

0

36

Echo 890152-04930

LABEL - ALIGNMENT

$0.99

$

In Stock, Qty 11

0

37

Echo 30100052131

SHOULDER STRAP ASSY
(Superseded to C062000070)

$25.99

$

In Stock, only 2 left!

0
