SRM-3400 - Echo String Trimmer (Type 1E) Clutch, Fuel System, Ignition, Starter Parts Diagram

String Trimmer (Type 1E)

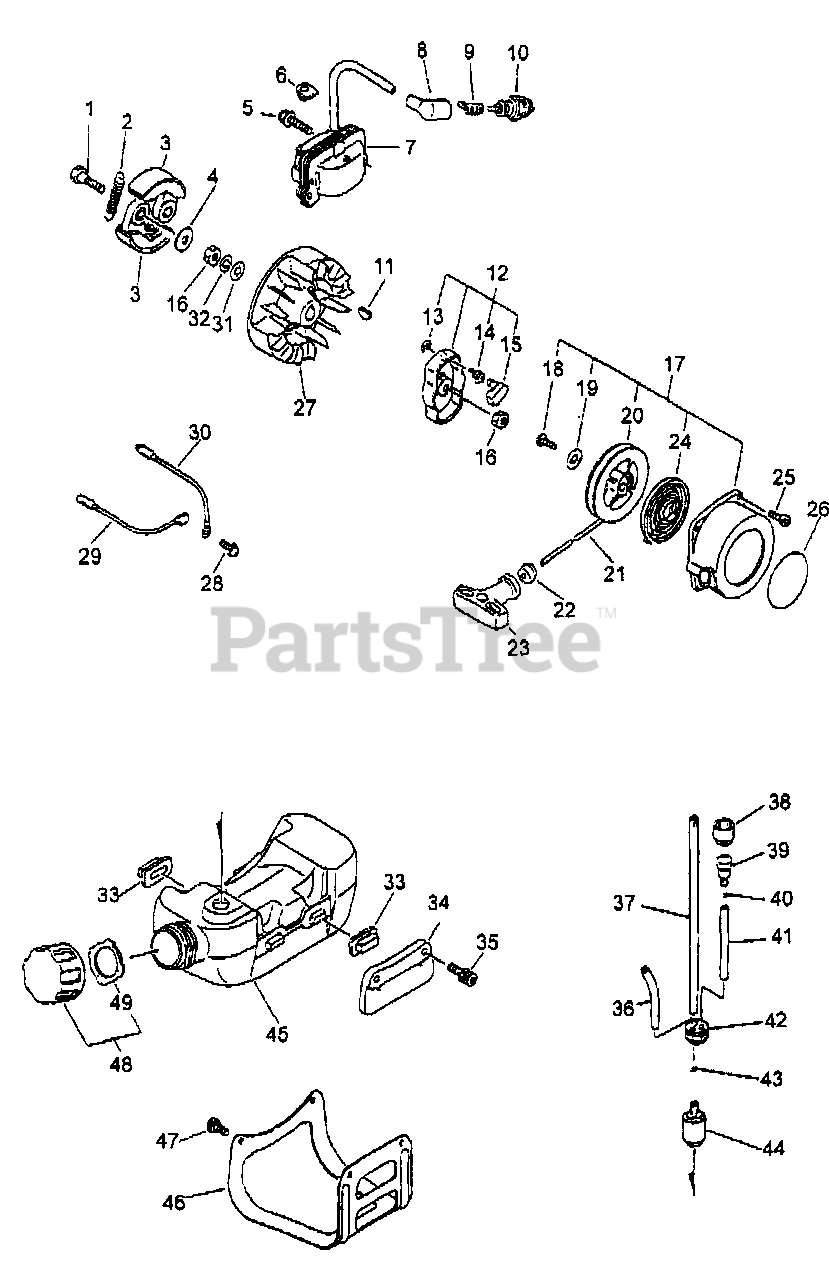

Clutch, Fuel System, Ignition, Starter Parts Diagram

  • Title

1

Echo 17504646430

BOLT, CLUTCH M6

$7.99

$

Usually ships in 2-4 days

0

2

Echo 17501827931

SPRING, CLUTCH
(Superseded to 17501827932)

$4.49

$

Usually ships in 2-4 days

0

3

Echo 17500946431

SHOE, CLUTCH
(Superseded to A553000000)

$29.99

$

Usually ships in 2-4 days

0

4

Echo 17504805530

WASHER 6.2×19×1.0

$1.99

$

In Stock, Qty 20+

0

5

Echo 90016205020

BOLT 5×20

$1.49

$

In Stock, Qty 20+

0

6

Echo 15611240630

GROMMET

$1.99

$

In Stock, Qty 20+

0

7

Echo 15262655730

COIL, IGNITION

$164.99

$

In Stock, only 1 left!

0

8

Echo 15901203433

CAP, SPARK PLUG

$8.49

$

In Stock, Qty 19

0

9

Echo 159011-03432

TERMINAL, SPARK PLUG
(Superseded to 15901103432)

$1.99

$

In Stock, Qty 20+

0

10

Echo 15901010630

SPARK PLUG - BPM7A
(Superseded to 15901010230)

$3.99

$

In Stock, Qty 20+

0

11

Echo 10014212330

KEY, WOODRUFF

$1.99

$

In Stock, only 3 left!

0

12

Echo 17720241030

PAWL ASSY, STARTER
(Superseded to A052000370)

Note: Includes ITEMS 13-15

$14.99

$

In Stock, Qty 8

0

13

Echo 90070000004

E-RING 4

$0.99

$

In Stock, Qty 20+

0

14

Echo 17723440630

SPRING, RETURN

$3.99

$

In Stock, only 2 left!

0

15

Echo 17721840630

PAWL, STARTER
(Superseded to A514000120)

$3.49

$

In Stock, Qty 20+

0

16

Echo 90050200008

NUT 8×1.25

$0.99

$

In Stock, Qty 7

0

17

Echo 17720055630

STARTER ASSY
(Superseded to 17720055631)

Note: Includes Items 18-24

$105.99

$

Usually ships in 2-4 days

0

18

Echo 17723640630

SCREW

$4.99

$

In Stock, Qty 13

0

19

Echo 17721441030

WASHER

$1.49

$

Usually ships in 2-4 days

0

20

Echo 17721543130

REEL, ROPE

$16.99

$

In Stock, only 2 left!

0

21

Echo 17722601110

ROPE, STARTER 4.0×880

Note: RePower BULK OPTION: 99944450000

$6.99

$

Usually ships in 2-4 days

0

22

Echo 177227-42030

GUIDE, ROPE
(Superseded to 17722742030)

$2.99

$

Usually ships in 2-4 days

0

23

Echo 17722811120

GRIP, STARTER

$6.99

$

Usually ships in 2-4 days

0

24

Echo 17722040630

SPRING, RECOIL

$15.99

$

In Stock, only 1 left!

0

25

Echo 90016204014

BOLT 4×14

$1.49

$

In Stock, Qty 18

0

26

Echo 89011849330

LABEL, ECHO

$7.49

$

In Stock, only 2 left!

0

27

Echo 15280155430

FLYWHEEL

$158.99

$

Usually ships in 2-4 days

0

28

Echo 90023805010

SCREW 5×10

$0.99

$

In Stock, Qty 13

0

29

Echo 16201055630

LEAD 170 MM

$7.49

$

Usually ships in 2-4 days

0

30

Echo 16201452930

LEAD - GROUND

$5.99

$

In Stock, only 2 left!

0

31

Echo 90060000008

WASHER 8.5×16×1.2

$0.99

$

Usually ships in 2-4 days

0

32

Echo 90060500008

WASHER, SPRING 8

$0.99

$

In Stock, Qty 20+

0

33

Echo 13192055430

CUSHION, FUEL TANK

$3.99

$

In Stock, only 4 left!

0

34

Echo 13191055430

BRACKET, FUEL TANK

$19.99

$

Usually ships in 2-4 days

0

35

Echo 90016205020

BOLT 5×20

$1.49

$

In Stock, Qty 20+

0

36

Echo 13201056330

PIPE, FUEL RETURN 3×6×90 MM CLEAR

Note: RePower BULK OPTION: 90017

$3.49

$

In Stock, Qty 10

0

37

Echo V471001190

PIPE, FUEL 3x-5x-180
(Superseded to V471001191)

Note: RePower BULK OPTION: 90014

$1.99

$

In Stock, Qty 20+

0

38

Echo 13132840630

HOLDER, VENT

$7.49

$

In Stock, Qty 13

0

39

Echo 13130040630

VENT ASSY
(Superseded to 13130056430)

Note: Use cap/vent kit 90010

$8.99

$

In Stock, Qty 7

0

40

Echo 130111-00530

CLIP 5.5

$0.99

$

In Stock, Qty 20+

0

41

Echo V471001220

PIPE, FUEL VENT 3×5×50

Note: RePower BULK OPTION: 90014

$1.49

$

In Stock, Qty 9

0

42

Echo V137000030

GROMMET, FUEL
(Superseded to 13211546730)

$2.49

$

In Stock, Qty 20+

0

43

Echo 132013-09820

CLIP 6 MM

$0.99

$

In Stock, Qty 8

0

44

Echo 13120550430

FILTER, FUEL
(Superseded to 13120507320)

Note: Use Air/Fuel Filter Kit 90030

$6.49

$

In Stock, Qty 20+

0

45

Echo 13101055430

TANK, FUEL
(Superseded to 13101055431)

$16.99

$

In Stock, only 2 left!

0

46

Echo 30511055830

GUARD, FUEL TANK

$42.99

$

Usually ships in 2-4 days

0

47

Echo 90016205012

BOLT 5×12

$0.99

$

In Stock, Qty 20+

0

48

Echo 13100455730

CAP ASSY
(Superseded to 13100455830)

Note: Includes Item 49, Use Cap/Vent Kit 90010

$5.49

$

In Stock, only 2 left!

0

49

Echo 13101640930

GASKET, FUEL CAP

$3.49

$

In Stock, Qty 8

0
