SRM-3605 U - Echo Brush Cutter (SN: 20001001 - 20999999) Air Filter, Intake, Exhaust Parts Diagram

Brush Cutter

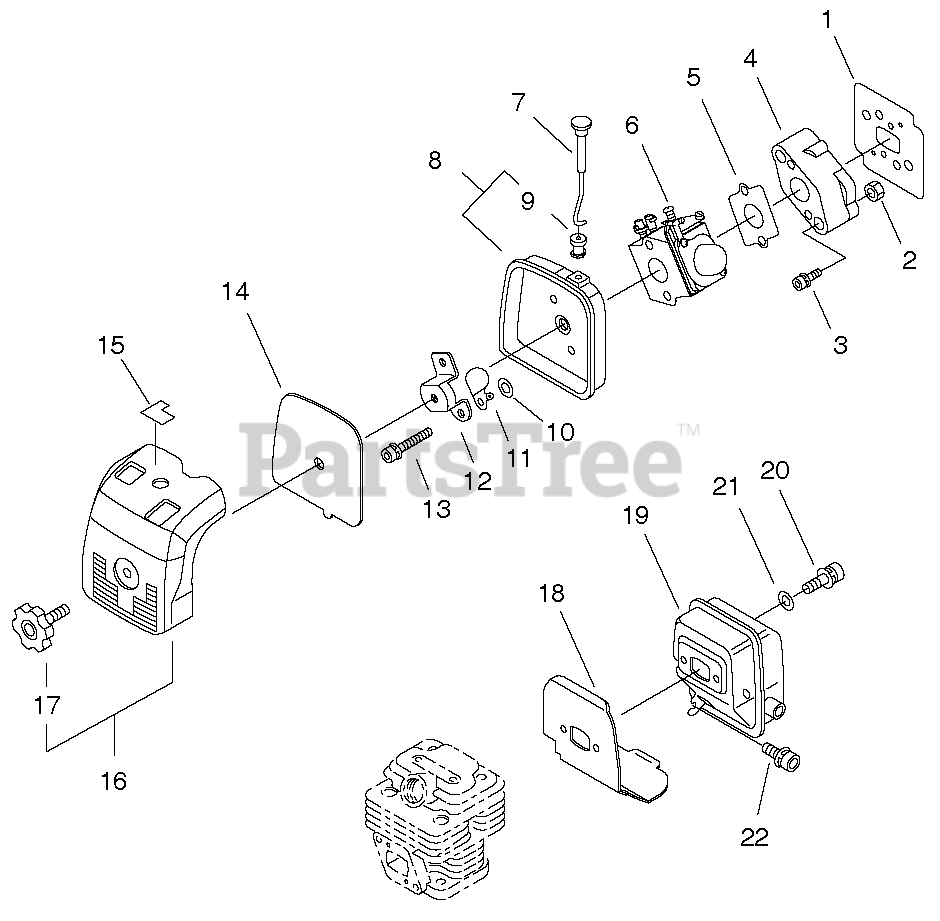

Air Filter, Intake, Exhaust Parts Diagram

  • Title

1

Echo 13001655430

GASKET, INTAKE

$3.49

$

Usually ships in 2-4 days

0

2

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

3

Echo 90016205025

BOLT 5×25

$0.99

$

In Stock, Qty 20+

0

4

Echo 13001755630

INSULATOR, INTAKE

$17.99

$

Usually ships in 2-4 days

0

5

Echo 13001005960

GASKET, CARBURETOR

$1.99

$

In Stock, Qty 15

0

6

Echo 12300055630

CARBURETOR - WT-344

$65.99

$

In Stock, only 1 left!

0

7

Echo 17851051730

ROD, CHOKE

$7.99

$

In Stock, only 4 left!

0

8

Echo 13030151730

CASE ASSY, AIR FILTER

$25.99

$

Usually ships in 2-4 days

0

9

Echo 17881005230

GROMMET, CHOKE

$2.49

$

In Stock, only 3 left!

0

10

Echo 178516-00830

WASHER 5.2×8×0.8T

$0.99

$

In Stock, Qty 20+

0

11

Echo 17851505060

SHUTTER, CHOKE

$3.49

$

In Stock, only 1 left!

0

12

Echo 12901152131

PLATE, PREVENT

$6.49

$

In Stock, only 1 left!

0

13

Echo 90016205057

BOLT 5×57

$1.99

$

Usually ships in 2-4 days

0

14

Echo 13031051730

FILTER, AIR

$10.99

$

In Stock, Qty 9

0

15

Echo 89012147530

LABEL, CHOKE

$4.99

$

In Stock, only 1 left!

0

16

Echo 13030252131

COVER ASSY, AIR FILTER
(Superseded to 13030252132)

$17.99

$

In Stock, only 3 left!

0

17

Echo 13040652131

THUMBSCREW

$6.49

$

In Stock, Qty 20+

0

18

Echo 14551055430

GASKET, MUFFLER

$16.99

$

In Stock, only 1 left!

0

19

Echo 14561055230

MUFFLER

$140.99

$

Usually ships in 2-4 days

0

20

Echo 90010505060

BOLT 5×60

$2.49

$

Usually ships in 2-4 days

0

21

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

22

Echo 90016205012

BOLT 5×12

$0.99

$

In Stock, Qty 20+

0
