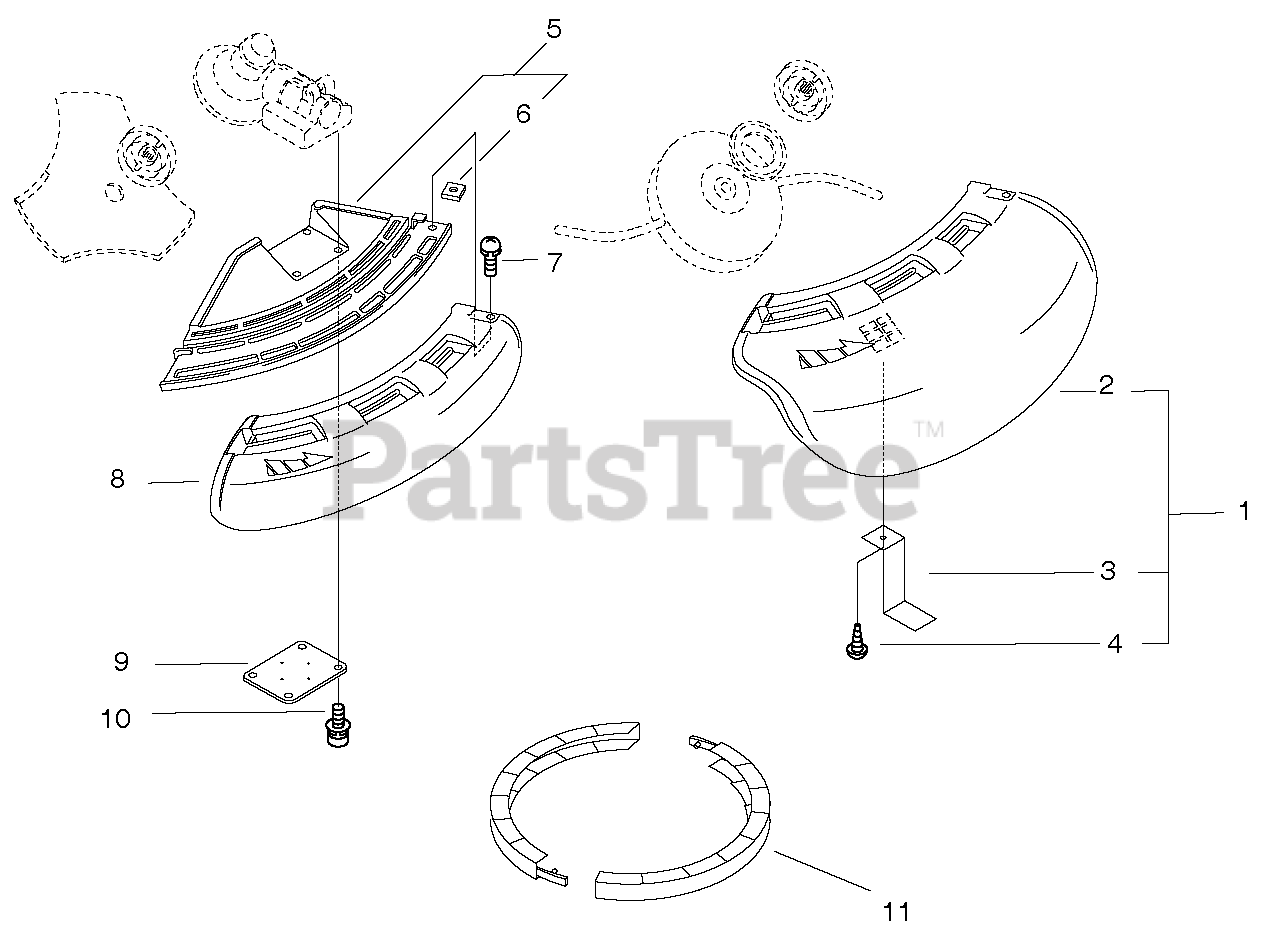

SRM-3605 U - Echo Brush Cutter (SN: 20001001 - 20999999) Blade Debris Shield, Blade Parts Diagram

Brush Cutter

Blade Debris Shield, Blade Parts Diagram

  • Title

1

Echo P021002622

DEBRIS SHIELD ASSY

$47.99

$

Usually ships in 2-4 days

0

2

Echo C550000082

SHIELD, DEBRIS

$31.99

$

Usually ships in 2-4 days

0

3

Echo C554000000

CUTTER, LINE
(Superseded to C554000001)

$18.99

$

In Stock, only 2 left!

0

4

Echo 90025205012

SCREW, TAPPING 5×12

$0.99

$

Usually ships in 2-4 days

0

5

Echo C550000102

BRACKET ASSY, SHIELD

$18.99

$

Usually ships in 2-4 days

0

6

Echo 90056500005

NUT M5
(Superseded to 90056550005)

$0.99

$

In Stock, Qty 20+

0

7

Echo 9111805022

BOLT 5×22

$1.49

$

Usually ships in 2-4 days

0

8

Echo C550000092

SHIELD, BLADE

$24.99

$

Usually ships in 2-4 days

0

9

Echo C552000200

PLATE, SHIELD

$4.49

$

Usually ships in 2-4 days

0

10

Echo V203001980

BOLT 5×25

$1.99

$

Usually ships in 2-4 days

0

11

Echo 89852347131

COVER, BLADE

$

$

Currently unavailable
