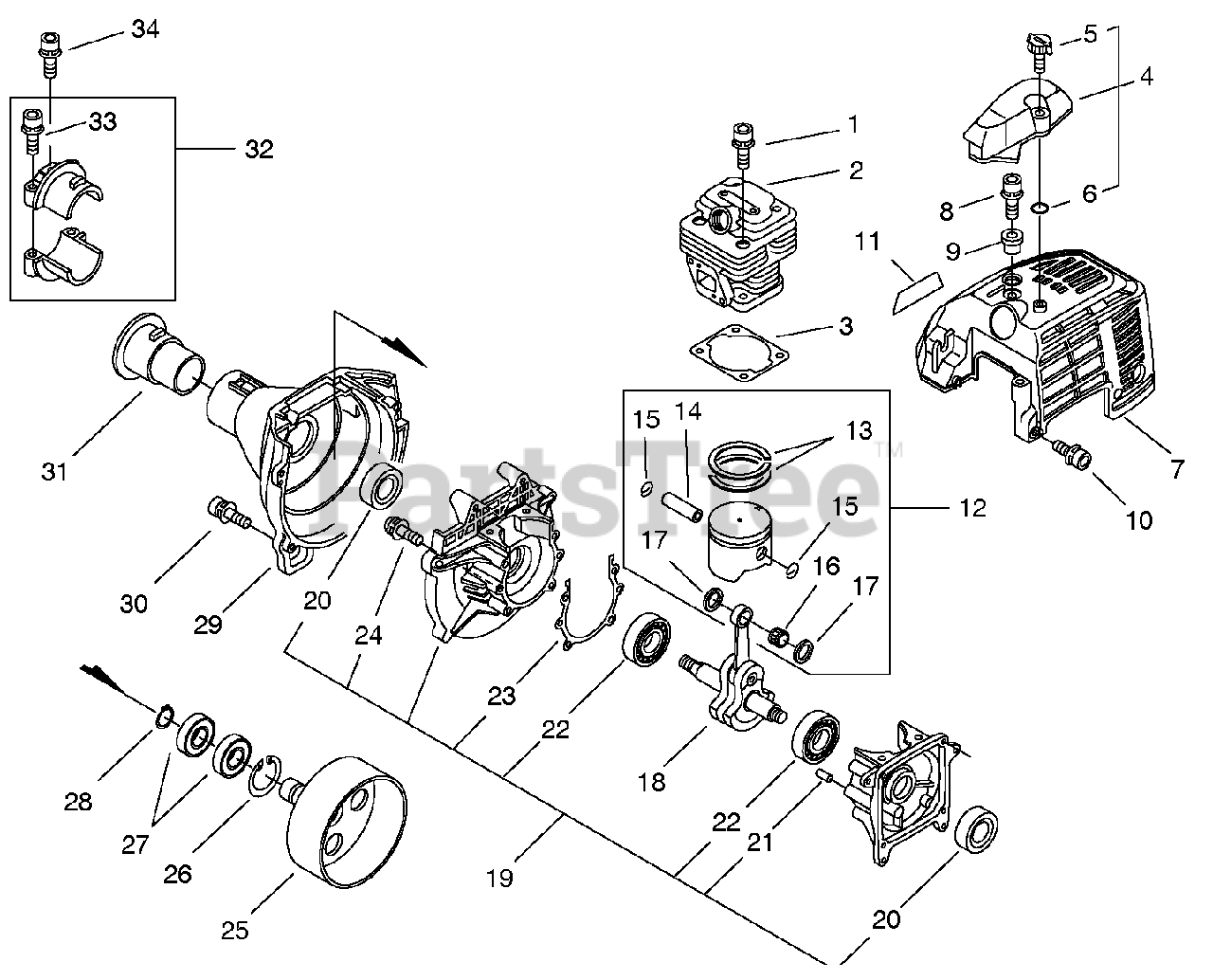

SRM-3605 U - Echo Brush Cutter (SN: 20001001 - 20999999) Cylinder, Piston, Crankcase, Fan Cover, Clutch, Engine Cover Parts Diagram

Brush Cutter

Cylinder, Piston, Crankcase, Fan Cover, Clutch, Engine Cover Parts Diagram

  • Title

1

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

2

Echo A130000601

CYLINDER

$154.99

$

Usually ships in 2-4 days

0

3

Echo 10101055430

GASKET, CYLINDER

$2.99

$

Usually ships in 2-4 days

0

4

Echo 15990255230

GUARD KIT

$13.99

$

Usually ships in 2-4 days

0

5

Echo 35232555230

KNOB, FASTENER

$3.49

$

Usually ships in 2-4 days

0

6

Echo 90072000004

O-RING - 4

$1.99

$

In Stock, Qty 14

0

7

Echo 10151455630

COVER, ENGINE

$47.99

$

Usually ships in 2-4 days

0

8

Echo 9111805020

SCREW - 5X20

$1.49

$

Usually ships in 2-4 days

0

9

Echo 10153155230

COLLAR

$3.49

$

Usually ships in 2-4 days

0

10

Echo 9111805012

SCREW - 5X12

$1.49

$

In Stock, only 1 left!

0

11

Echo X547001010

LABEL - MODEL SRM-3605

$

$

Currently unavailable

12

Echo P021015780

PISTON KIT

$94.99

$

Usually ships in 2-4 days

0

13

Echo 10001142230

RING, PISTON

$9.99

$

Usually ships in 2-4 days

0

14

Echo 10001327430

PIN, PISTON

$7.49

$

Usually ships in 2-4 days

0

15

Echo 10001503931

RING, RETAINING

$0.99

$

In Stock, Qty 12

0

16

Echo 10001216131

BEARING, NEEDLE

$10.99

$

Usually ships in 2-4 days

0

17

Echo 10001453630

SPACER, PISTON

$5.99

$

Usually ships in 2-4 days

0

18

Echo 10010055430

CRANKSHAFT ASSY

$244.99

$

Usually ships in 2-4 days

0

19

Echo P021036321

CRANKCASE KIT

$148.99

$

Usually ships in 2-4 days

0

20

Echo 10021305530

SEAL, OIL

$6.49

$

In Stock, Qty 9

0

21

Echo 10021503930

PIN - LOCATING
(Superseded to 90033040080)

$0.99

$

In Stock, Qty 20+

0

22

Echo 9403536201

BEARING, BALL - 6201

$7.99

$

In Stock, Qty 12

0

23

Echo V102000040

GASKET, CRANKCASE

$3.99

$

Usually ships in 2-4 days

0

24

Echo 90016205030

SCREW - 5X30

$0.99

$

In Stock, only 3 left!

0

25

Echo 17500549930

DRUM, CLUTCH

$68.99

$

Usually ships in 2-4 days

0

26

Echo 90070200028

RING, RETAINING - 28

$1.49

$

In Stock, Qty 18

0

27

Echo 90080706001

BEARING, BALL - 6001

$11.99

$

In Stock, only 3 left!

0

28

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 15

0

29

Echo 10151155630

CASE, FAN

$77.99

$

Usually ships in 2-4 days

0

30

Echo 9111805020

SCREW - 5X20

$1.49

$

Usually ships in 2-4 days

0

31

Echo 61091051830

CUSHION

$10.99

$

In Stock, only 2 left!

0

32

Echo P021012800

HOLDER KIT

$17.99

$

Usually ships in 2-4 days

0

33

Echo 9111805025

SCREW - 5X25

$0.99

$

Usually ships in 2-4 days

0

34

Echo 9111805012

SCREW - 5X12

$1.49

$

In Stock, only 1 left!

0
