SRM-3605 U - Echo Brush Cutter (SN: 20001001 - 20999999) Flywheel, Ignition Parts Diagram

Brush Cutter

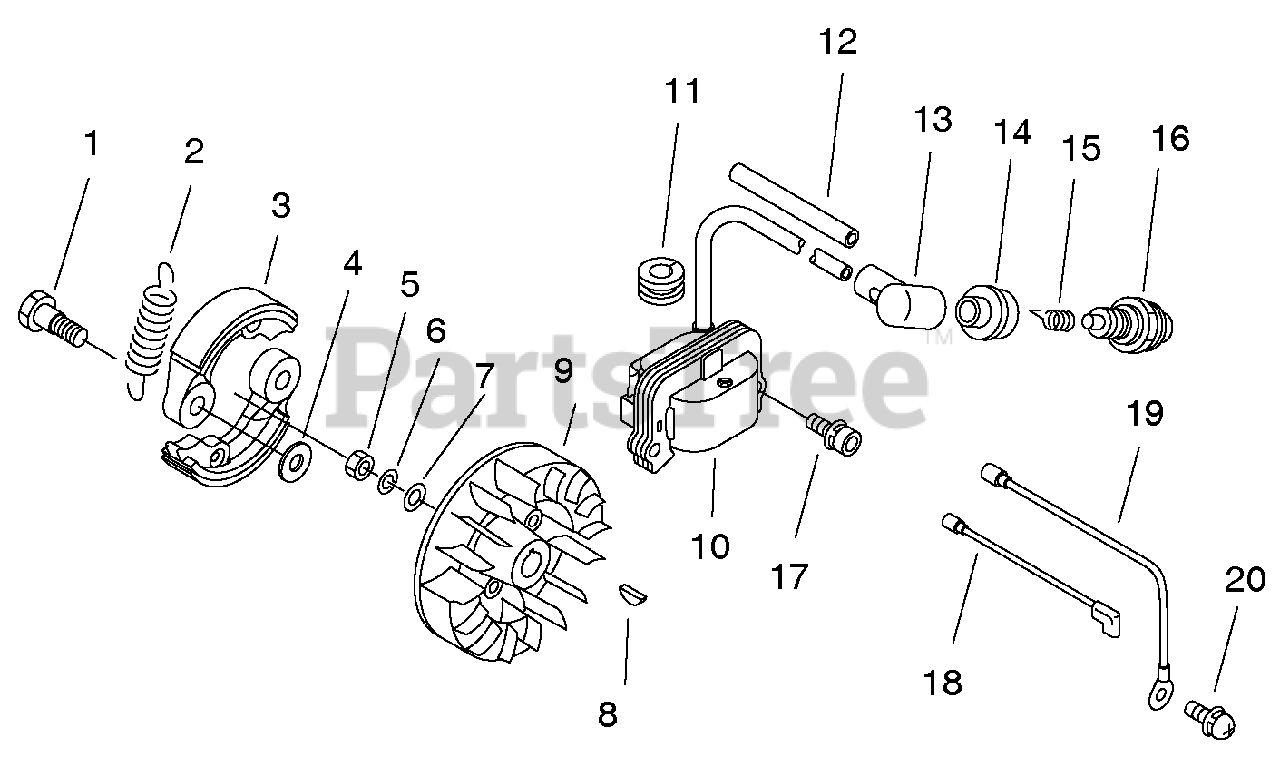

Flywheel, Ignition Parts Diagram

  • Title

1

Echo 17504646430

BOLT, CLUTCH M6

$7.99

$

Usually ships in 2-4 days

0

2

Echo 17501849932

SPRING, CLUTCH
(Superseded to 17501849933)

$4.49

$

Usually ships in 2-4 days

0

3

Echo A553000000

SHOE, CLUTCH

$29.99

$

Usually ships in 2-4 days

0

4

Echo 17504805530

WASHER 6.2×19×1.0

$1.99

$

In Stock, Qty 20+

0

5

Echo 90050200008

NUT 8×1.25

$0.99

$

In Stock, Qty 7

0

6

Echo 90060500008

WASHER, SPRING 8

$0.99

$

In Stock, Qty 20+

0

7

Echo 90060000008

WASHER 8.5×16×1.2

$0.99

$

Usually ships in 2-4 days

0

8

Echo 10014212330

KEY, WOODRUFF

$1.99

$

In Stock, only 3 left!

0

9

Echo 15280155430

FLYWHEEL

$158.99

$

Usually ships in 2-4 days

0

10

Echo 15262655430

COIL, IGNITION

$172.99

$

Usually ships in 2-4 days

0

11

Echo 150112-44330

GROMMET

$9.49

$

In Stock, Qty 8

0

12

Echo 15061114530

TUBE, PROTECTIVE 6×7×110

$1.99

$

Usually ships in 2-4 days

0

13

Echo 159012-01620

CAP, SPARK PLUG

$1.99

$

In Stock, Qty 9

0

14

Echo 15901555230

SEAL, SPARK PLUG

$8.99

$

Usually ships in 2-4 days

0

15

Echo 159011-03432

TERMINAL, SPARK PLUG
(Superseded to 15901103432)

$1.99

$

In Stock, Qty 20+

0

16

Echo 15901010230

SPARK PLUG - BPMR7A

$3.99

$

In Stock, Qty 20+

0

17

Echo 90016205020

BOLT 5×20

$1.49

$

In Stock, Qty 20+

0

18

Echo 16201055630

LEAD 170 MM

$7.49

$

Usually ships in 2-4 days

0

19

Echo 16201452930

LEAD - GROUND

$5.99

$

In Stock, only 2 left!

0

20

Echo 90023805010

SCREW 5×10

$0.99

$

In Stock, Qty 13

0
