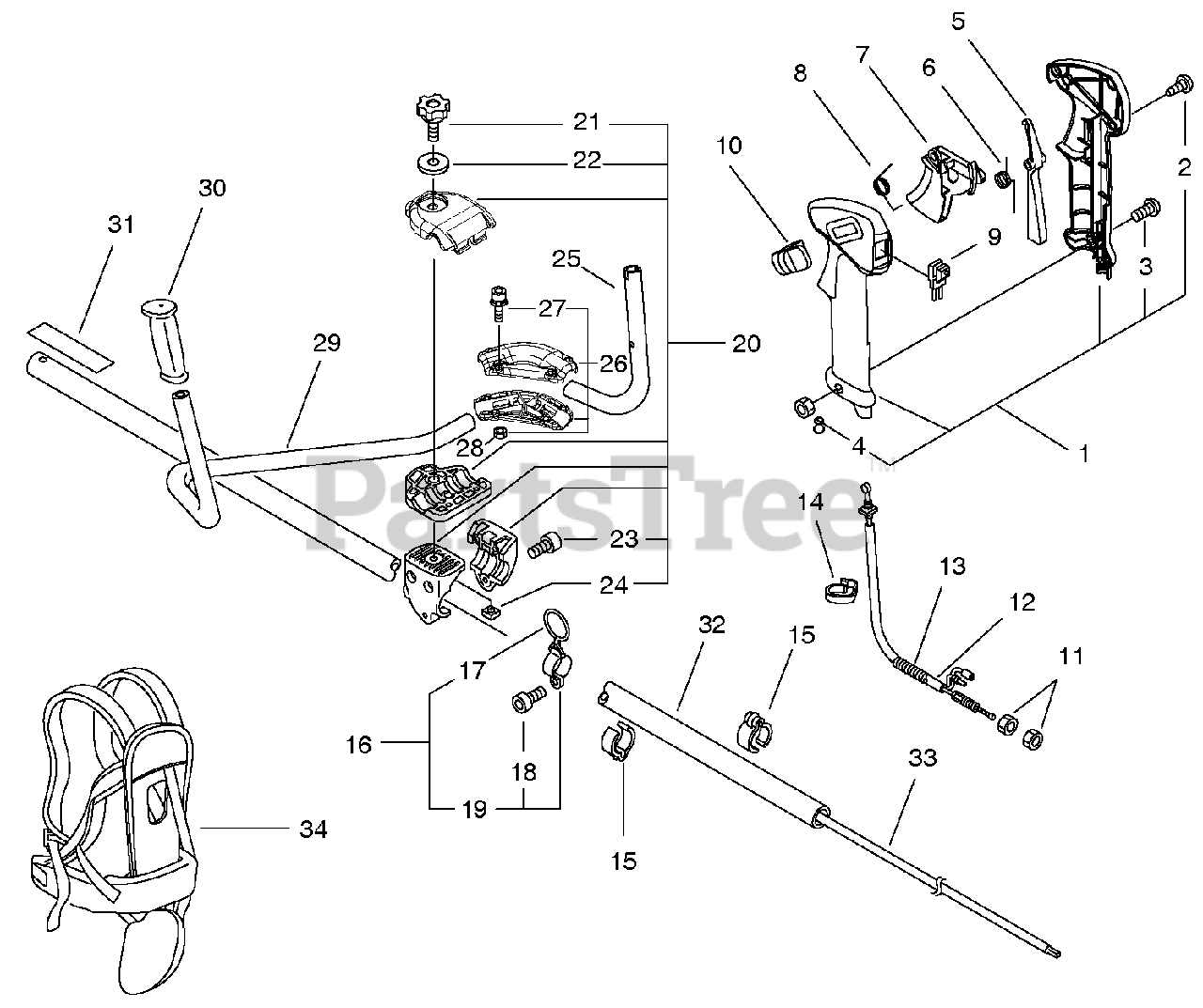

SRM-3605 U - Echo Brush Cutter (SN: 20001001 - 20999999) Main Pipe, Throttle Control, U-Handle Parts Diagram

Brush Cutter

Main Pipe, Throttle Control, U-Handle Parts Diagram

  • Title

1

Echo P021002612

CONTROL HANDLE ASSY

$40.99

$

In Stock, only 2 left!

0

2

Echo 90025304016

SCREW - 4X16

$0.99

$

In Stock, Qty 11

0

3

Echo 90022005030

SCREW - 5X30

$0.99

$

Usually ships in 2-4 days

0

4

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

5

Echo C460000011

LEVER, TRIGGER LOCKOUT

$5.99

$

In Stock, only 2 left!

0

6

Echo V452000130

SPRING, LOCKOUT LEVER

$3.49

$

Usually ships in 2-4 days

0

7

Echo C450000022

TRIGGER, THROTTLE

$13.99

$

In Stock, Qty 5

0

8

Echo V452000060

SPRING, TRIGGER

$1.99

$

In Stock, Qty 8

0

9

Echo 16340048030

IGNITION SWITCH ASSY
(Superseded to A440000310)

$12.99

$

Usually ships in 2-4 days

0

10

Echo C463000000

LOCK, THROTTLE

$1.99

$

Usually ships in 2-4 days

0

11

Echo 90050200006

NUT - 6

$0.99

$

In Stock, Qty 20+

0

12

Echo V430000410

CABLE, THROTTLE

$19.99

$

Usually ships in 2-4 days

0

13

Echo V475003830

TUBE
(Superseded to 16211056430)

$7.99

$

Usually ships in 2-4 days

0

14

Echo 15911209961

CLIP

$4.99

$

Usually ships in 2-4 days

0

15

Echo 22492452930

CLIP

$10.99

$

Usually ships in 2-4 days

0

16

Echo P021012660

HANGER ASSY
(Superseded to P021012661)

$6.99

$

Usually ships in 2-4 days

0

17

Echo 30101505330

RING

$4.99

$

Usually ships in 2-4 days

0

18

Echo 9111905012

SCREW - 5X12

$1.49

$

Usually ships in 2-4 days

0

19

Echo 30121004630

CLAMP
(Superseded to 30121004631)

$5.49

$

Usually ships in 2-4 days

0

20

Echo P021012741

HANDLE BRACKET KIT
(Superseded to P021012742)

$110.99

$

In Stock, only 1 left!

0

21

Echo V299000110

THUMBSCREW

$15.99

$

Usually ships in 2-4 days

0

22

Echo 60501454230

WASHER - 8

$4.49

$

Usually ships in 2-4 days

0

23

Echo 9111805030

SCREW - 5X30

$1.49

$

Usually ships in 2-4 days

0

24

Echo 90056550008

NUT - 8

$1.49

$

Usually ships in 2-4 days

0

25

Echo 35121452931

HANDLE, FRONT - RIGHT

$50.99

$

Usually ships in 2-4 days

0

26

Echo P021012781

HANDLE BRACKET KIT

$43.99

$

Usually ships in 2-4 days

0

27

Echo 9111805022

SCREW - 5X22

$1.49

$

Usually ships in 2-4 days

0

28

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

29

Echo 35101052931

HANDLE, FRONT - LEFT

$75.99

$

In Stock, only 2 left!

0

30

Echo C403000031

GRIP, HANDLE

$11.99

$

Usually ships in 2-4 days

0

31

Echo 89061743130

LABEL - CAUTION

$27.99

$

Usually ships in 2-4 days

0

32

Echo 61020656930

PIPE, MAIN

$250.99

$

Usually ships in 2-4 days

0

33

Echo 61001106230

DRIVESHAFT - SOLID

$55.99

$

Usually ships in 2-4 days

0

34

Echo C062000193

HARNESS ASSY
(Superseded to C062000183)

$68.99

$

Usually ships in 2-4 days

0
