SRM-3800 - Echo String Trimmer (Type 1) Driveshaft, Clutch, Clutch Housing Parts Diagram

String Trimmer (Type 1)

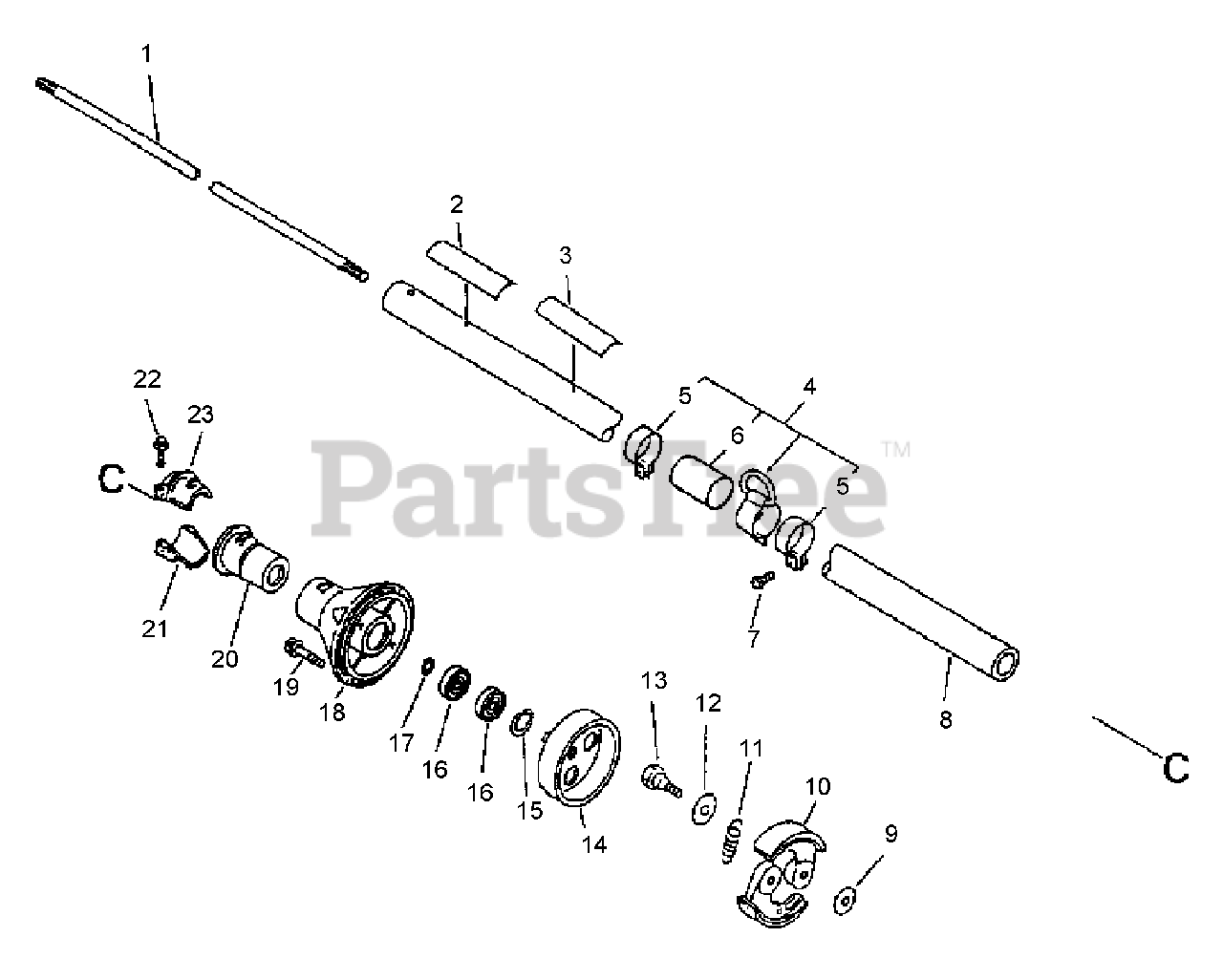

Driveshaft, Clutch, Clutch Housing Parts Diagram

  • Title

1

Echo 61001106230

DRIVESHAFT

$55.99

$

Usually ships in 2-4 days

0

2

Echo 89016049730

LABEL, CAUTION

$7.49

$

Usually ships in 2-4 days

0

3

Echo 89017751830

LABEL, CAUTION

$7.49

$

Usually ships in 2-4 days

0

4

Echo 30120006230

HANGER ASSY

Note: INCLUDES ITEMS 5 - 7

$28.99

$

Usually ships in 2-4 days

0

5

Echo 30120705630

CLAMP
(Superseded to Discontinued)

$

$

Not available

6

Echo 30122406230

COLLAR
(Superseded to Discontinued)

$

$

Not available

7

Echo 900242-05014

SCREW 5×14

$0.99

$

In Stock, Qty 20+

0

8

Echo 61020441030

MAIN PIPE ASSY 25×1500

$170.99

$

Usually ships in 2-4 days

0

9

Echo 17504903920

WASHER 8.2×17×1.6

$1.99

$

In Stock, Qty 10

0

10

Echo 17500942231

SHOE, CLUTCH

$31.99

$

Usually ships in 2-4 days

0

11

Echo 17501842230

SPRING, CLUTCH

$2.99

$

Usually ships in 2-4 days

0

12

Echo 17504803920

WASHER 10.2×18×1.0

$1.99

$

In Stock, Qty 5

0

13

Echo 17504606230

BOLT, CLUTCH

$11.99

$

Usually ships in 2-4 days

0

14

Echo 17500543130

DRUM, CLUTCH
(Superseded to A556000181)

$81.99

$

Usually ships in 2-4 days

0

15

Echo 90070200028

RING, SNAP 28

$1.99

$

In Stock, Qty 20+

0

16

Echo 9405106001

BEARING, BALL 6001
(Superseded to 9406106001)

$7.49

$

In Stock, Qty 20+

0

17

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 20+

0

18

Echo 61020547530

CASE, CLUTCH
(Superseded to 61020547531)

Note: TYPE 1 S/N 001001 & UP TYPE 1E S/N 001001 - 037579

$54.99

$

Usually ships in 2-4 days

0

18

Echo 61020547531

CASE, CLUTCH DRUM

Note: TYPE 1E S/N 037580 & UP

$54.99

$

Usually ships in 2-4 days

0

19

Echo 90016205020

BOLT 5×20

$1.49

$

In Stock, Qty 20+

0

20

Echo 61091040430

CUSHION

Note: TYPE 1 S/N 001001 & UP TYPE 1E S/N 001001 - 037579

$7.49

$

Usually ships in 2-4 days

0

20

Echo 61091055630

CUSHION
(Superseded to 61091051830)

Note: TYPE 1E S/N 037580 & UP

$12.99

$

In Stock, only 1 left!

0

21

Echo 61092340430

HOLDER
(Superseded to Discontinued)

Note: TYPE 1 S/N 001001 & UP TYPE 1E S/N 001001 - 037579

$

$

Not available

21

Echo 61092255630

HOLDER, MAIN PIPE

Note: TYPE 1E S/N 037580 & UP

$7.49

$

Usually ships in 2-4 days

0

22

Echo 900142-05025

BOLT - 5×25

$0.99

$

In Stock, Qty 9

0

23

Echo 61092243130

CLAMP, MAIN PIPE

$7.99

$

Usually ships in 2-4 days

0
