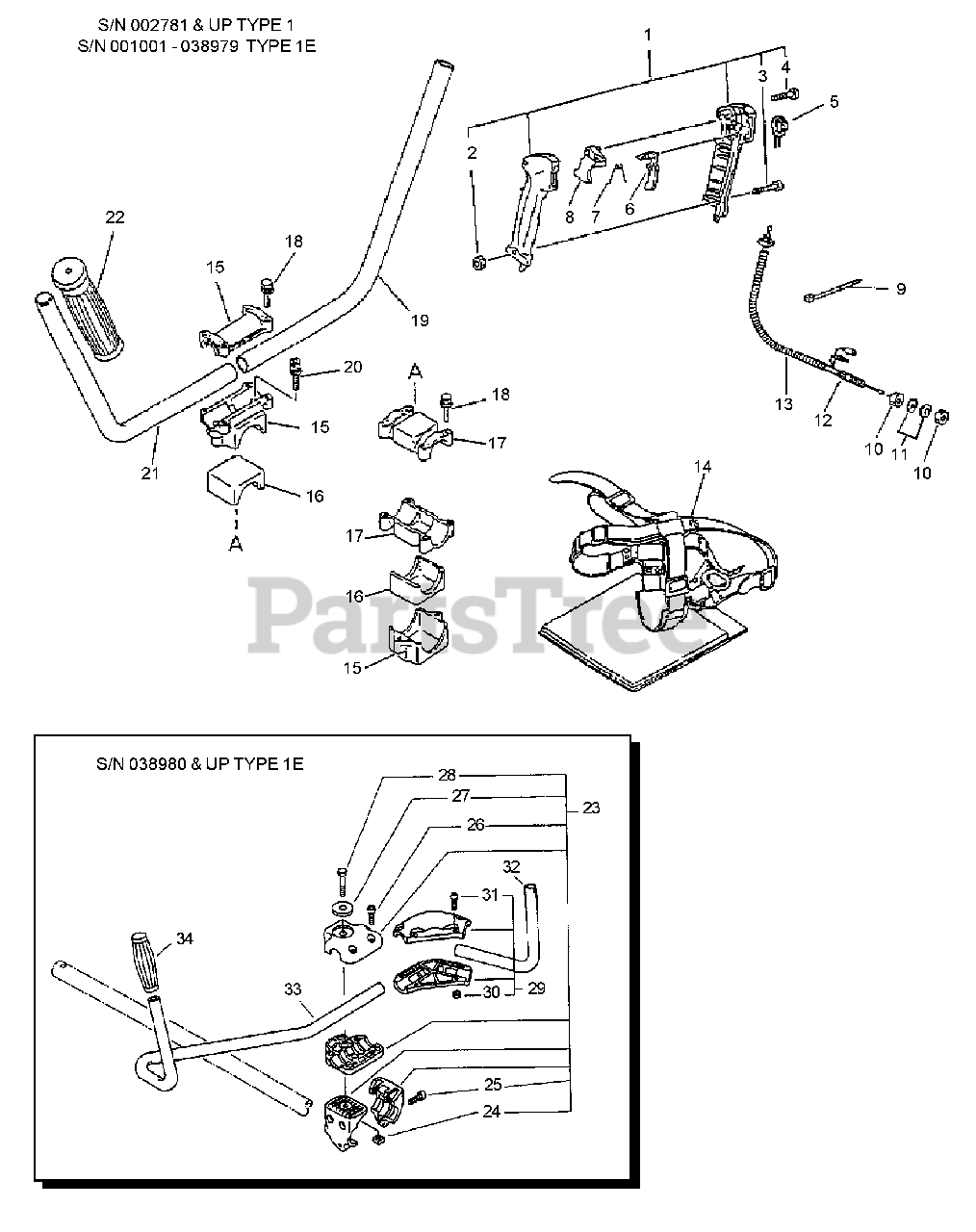

SRM-3800 - Echo String Trimmer (Type 1) Handle, Throttle Control, Switch, Harness Parts Diagram

String Trimmer (Type 1)

Handle, Throttle Control, Switch, Harness Parts Diagram

  • Title

1

Echo 351102-47530

CONTROL HANDLE KIT

Note: INCLUDES ITEMS 2 - 4

$41.99

$

In Stock, only 2 left!

0

2

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

3

Echo 900220-05030

SCREW 5×30

$0.99

$

Usually ships in 2-4 days

0

4

Echo 900246-03025

SCREW 3×25

$0.99

$

Usually ships in 2-4 days

0

5

Echo 16340143130

SWITCH, ON-OFF
(Superseded to A440000300)

$12.99

$

Usually ships in 2-4 days

0

6

Echo 178012-05960

LOCKOUT, THROTTLE

$6.99

$

In Stock, only 2 left!

0

7

Echo 178013-35631

SPRING, TORSION

$2.99

$

In Stock, Qty 5

0

8

Echo 178010-05960

TRIGGER, THROTTLE

$6.49

$

In Stock, only 2 left!

0

9

Echo 178121-43230

STRAP, TIE

$3.99

$

In Stock, only 3 left!

0

10

Echo 900502-00006

NUT M6

$0.99

$

In Stock, Qty 12

0

11

Echo 90060000006

WASHER 6.5×11.5×0.8

$0.99

$

In Stock, Qty 20+

0

12

Echo 17800143230

CABLE, THROTTLE

$18.99

$

Usually ships in 2-4 days

0

13

Echo 17812743230

TUBE, FLEXIBLE 7×820

$6.49

$

Usually ships in 2-4 days

0

14

Echo 30100051831

HARNESS, SHOULDER

$65.99

$

In Stock, Qty 9

0

15

Echo 35130151430

BRACKET ASSY, HANDLE

Note: INCLUDES ITEMS 18 & 20

$73.99

$

In Stock, only 1 left!

0

16

Echo 35133540530

CUSHION
(Superseded to Discontinued)

$

$

Not available

17

Echo 61060151430

BRACKET ASSY

$26.99

$

Usually ships in 2-4 days

0

18

Echo 900142-05025

BOLT - 5×25

$0.99

$

In Stock, Qty 9

0

19

Echo 351010-43130

HANDLE, FRONT
(Superseded to Discontinued)

$

$

Not available

20

Echo 90016205025

BOLT 5×25

$0.99

$

In Stock, Qty 20+

0

21

Echo 35121023430

HANDLE, LEFT
(Superseded to Discontinued)

$

$

Not available

22

Echo 351311-02330

GRIP, HANDLE

$7.49

$

In Stock, only 2 left!

0

23

Echo 35130152930

HANDLE BRACKET KIT
(Superseded to P021012830)

Note: TYPE 1E S/N 038980 & UP INCLUDES 24 - 28

$103.99

$

Usually ships in 2-4 days

0

24

Echo 90056550008

NUT 8×1.25

$1.49

$

Usually ships in 2-4 days

0

25

Echo 90016205030

BOLT 5×30

$1.49

$

In Stock, only 2 left!

0

26

Echo 90016205020

BOLT 5×20

$1.49

$

In Stock, Qty 20+

0

27

Echo 60501454230

WASHER 8

$4.49

$

Usually ships in 2-4 days

0

28

Echo 35142152130

BOLT 8×55

$3.49

$

Usually ships in 2-4 days

0

29

Echo P021012780

BRACKET ASSY, HANDLE
(Superseded to P021012781)

Note: TYPE 1E S/N 038980 & UP INCLUDES 30 - 31

$43.99

$

Usually ships in 2-4 days

0

30

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

31

Echo 90016205020

BOLT 5×20

$1.49

$

In Stock, Qty 20+

0

32

Echo 35121452931

HANDLEBAR, RIGHT

Note: TYPE 1E S/N 038980 & UP

$50.99

$

Usually ships in 2-4 days

0

33

Echo 35101052931

HANDLEBAR, LEFT

Note: TYPE 1E S/N 038980 & UP

$75.99

$

In Stock, only 2 left!

0

34

Echo 35131122430

GRIP, HANDLE
(Superseded to 35131122431)

Note: TYPE 1E S/N 038980 & UP

$6.49

$

In Stock, only 3 left!

0
