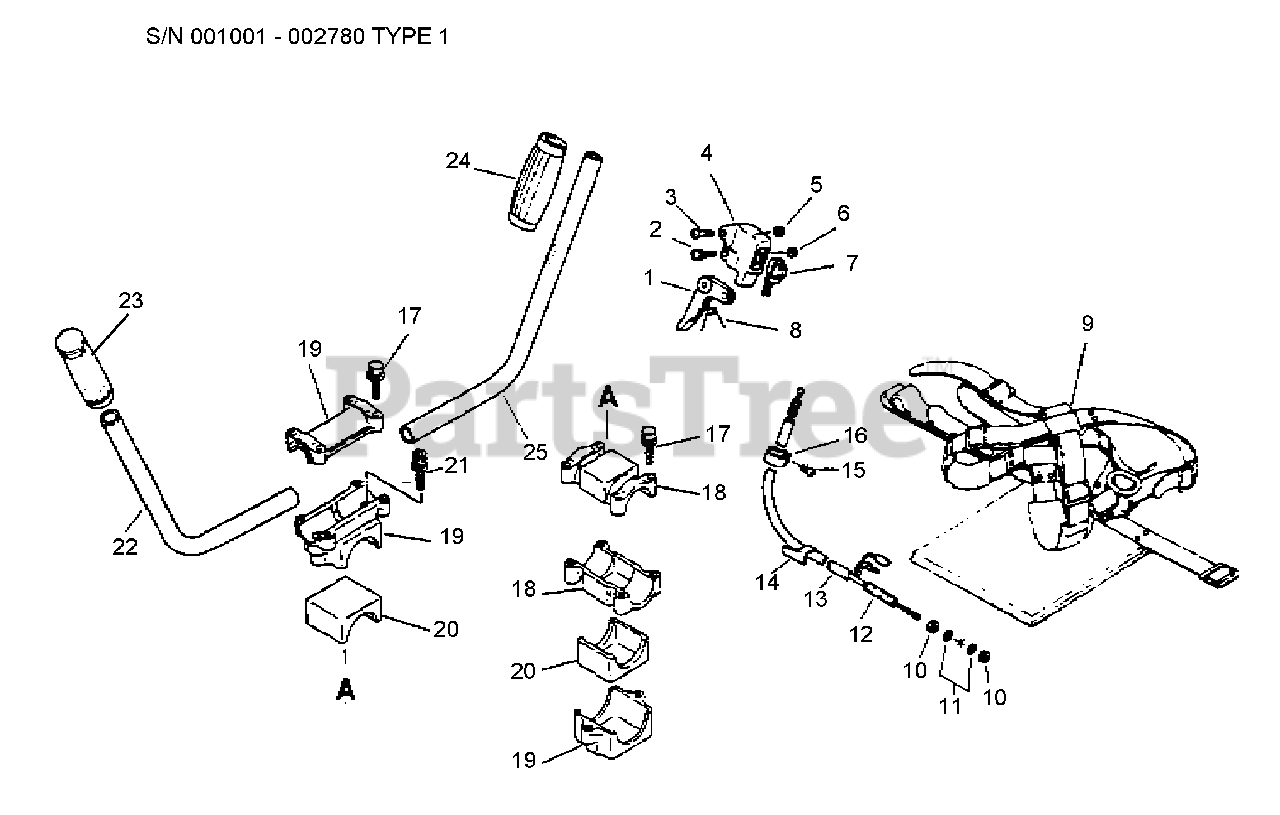

SRM-3800 - Echo String Trimmer (Type 1) Handle, Throttle Control, Switch, Harness S/N: 001001 - 002780 Type 1 Parts Diagram

String Trimmer (Type 1)

Handle, Throttle Control, Switch, Harness S/N: 001001 - 002780 Type 1 Parts Diagram

  • Title

1

Echo 17801005330

TRIGGER, THROTTLE
(Superseded to Discontinued)

$

$

Not available

2

Echo 90024205030

SCREW 5×30

$0.99

$

In Stock, only 2 left!

0

3

Echo 17811005330

SCREW

$0.99

$

In Stock, Qty 11

0

4

Echo 17802422130

BRACKET, THROTTLE
(Superseded to 17802441830)

$8.49

$

Usually ships in 2-4 days

0

5

Echo 433020-00830

LOCKNUT - 5
(Superseded to 90056000005)

$1.49

$

In Stock, Qty 14

0

6

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

7

Echo 16340041030

SWITCH, ON-OFF

$13.99

$

Usually ships in 2-4 days

0

8

Echo 17804305230

SPRING

$0.99

$

In Stock, only 3 left!

0

9

Echo 30100051830

SHOULDER STRAP ASSY
(Superseded to 30100051831)

Note: (USA)

$65.99

$

In Stock, Qty 9

0

9

Echo 30100049731

HARNESS, SHOULDER

Note: CANADA MODEL

$208.99

$

Usually ships in 2-4 days

0

10

Echo 900500-00006

NUT, HEX M6

$0.99

$

In Stock, Qty 20+

0

11

Echo 90060000006

WASHER 6.5×11.5×0.8

$0.99

$

In Stock, Qty 20+

0

12

Echo 17800141030

CABLE, THROTTLE
(Superseded to Discontinued)

$

$

Not available

13

Echo 17812741030

PIPE

$2.99

$

Usually ships in 2-4 days

0

14

Echo 17811106230

CLIP

$2.99

$

Usually ships in 2-4 days

0

15

Echo 90022005010

SCREW 5×10

$0.99

$

In Stock, Qty 7

0

16

Echo 17810605330

CLAMP

$5.99

$

Usually ships in 2-4 days

0

17

Echo 900142-05025

BOLT - 5×25

$0.99

$

In Stock, Qty 9

0

18

Echo 61060140530

BRACKET KIT

$22.99

$

Usually ships in 2-4 days

0

19

Echo 35130140530

BRACKET ASSY

Note: Includes ITEMS 17-18

$

$

Not available

20

Echo 35133540530

CUSHION
(Superseded to Discontinued)

$

$

Not available

21

Echo 90016205025

BOLT 5×25

$0.99

$

In Stock, Qty 20+

0

22

Echo 351210-05530

HANDLE, LEFT

$

$

Not available

23

Echo 351311-02330

GRIP, HANDLE

$7.49

$

In Stock, only 2 left!

0

24

Echo 35131522130

GRIP

$12.99

$

Usually ships in 2-4 days

0

25

Echo 35101005530

HANDLE

$33.99

$

Usually ships in 2-4 days

0
