SRM-3800 - Echo String Trimmer (Type 1) Ignition, Starter, Fuel System Parts Diagram

String Trimmer (Type 1)

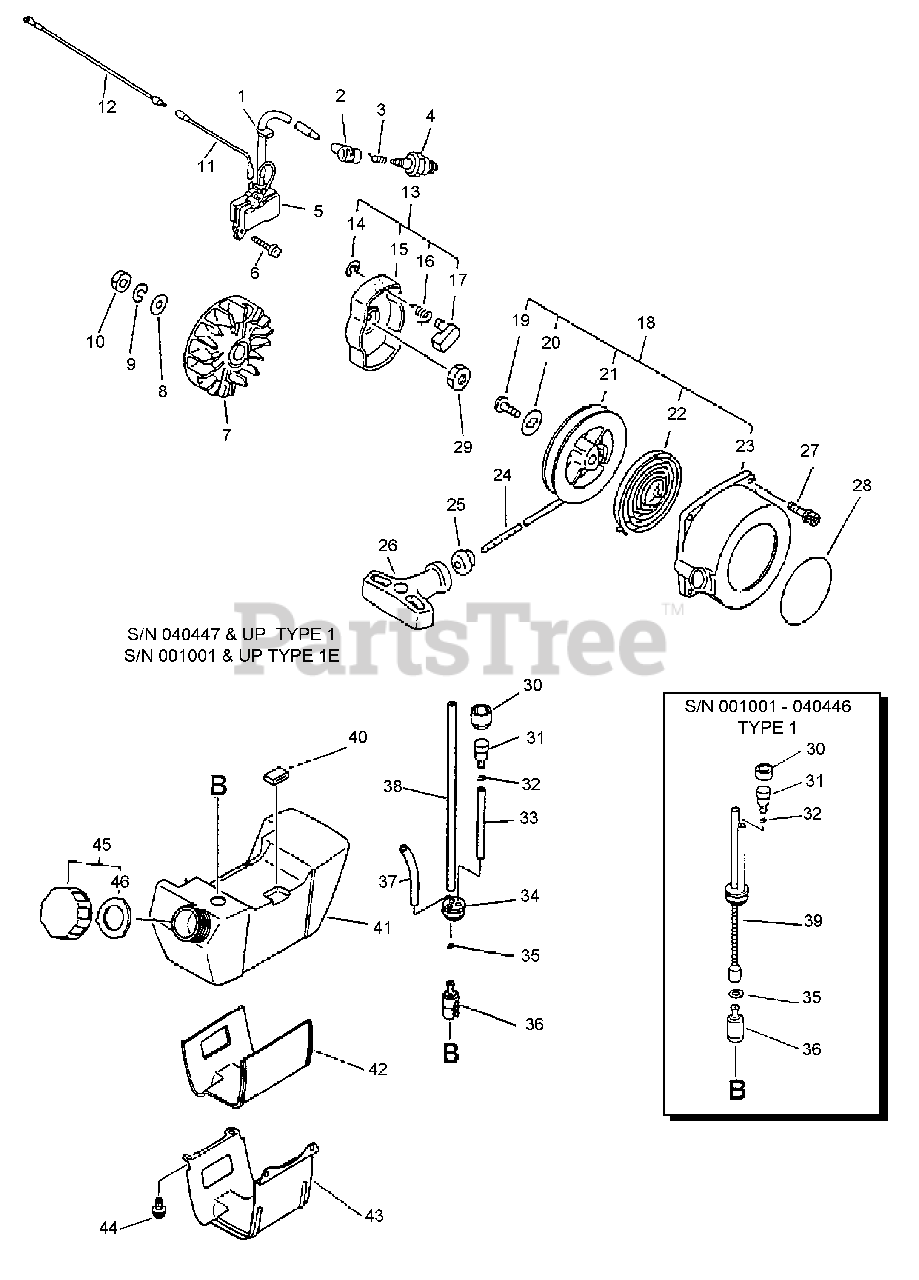

Ignition, Starter, Fuel System Parts Diagram

  • Title

1

Echo 15611240630

GROMMET

$1.99

$

In Stock, Qty 20+

0

2

Echo 15901203433

CAP, SPARK PLUG

$8.49

$

In Stock, Qty 19

0

3

Echo 159011-03432

TERMINAL, SPARK PLUG
(Superseded to 15901103432)

$1.99

$

In Stock, Qty 20+

0

4

Echo 15901010630

SPARK PLUG - BPM7A
(Superseded to 15901010230)

$3.99

$

In Stock, Qty 20+

0

5

Echo 15662642230

COIL, IGNITION

$147.99

$

Usually ships in 2-4 days

0

6

Echo 90016205020

BOLT 5×20

$1.49

$

In Stock, Qty 20+

0

7

Echo 15680142230

FLYWHEEL

$141.99

$

Usually ships in 2-4 days

0

8

Echo 900600-00010

WASHER 10.5×18×1.6

$0.99

$

In Stock, Qty 9

0

9

Echo 900605-00010

WASHER, SPRING 10

$0.99

$

In Stock, Qty 6

0

10

Echo 90050300010

NUT 10×1.25

$1.49

$

Usually ships in 2-4 days

0

11

Echo 16202142230

LEAD

$4.99

$

Usually ships in 2-4 days

0

12

Echo 15663543130

LEAD - GROUND

$1.99

$

In Stock, Qty 11

0

13

Echo 17720241030

PAWL ASSY, STARTER
(Superseded to A052000370)

Note: Includes ITEMS 14-17

$14.99

$

In Stock, Qty 8

0

14

Echo 90070000004

E-RING 4

$0.99

$

In Stock, Qty 20+

0

15

Echo 17721041030

PAWL CATCHER

$7.49

$

Usually ships in 2-4 days

0

16

Echo 17723440630

SPRING, RETURN

$3.99

$

In Stock, only 2 left!

0

17

Echo 17721840630

PAWL, STARTER
(Superseded to A514000120)

$3.49

$

In Stock, Qty 20+

0

18

Echo 17720051430

STARTER ASSY
(Superseded to A051000160)

Note: INCLUDES ITEMS 19 - 26

$79.99

$

Usually ships in 2-4 days

0

19

Echo 17723640630

SCREW

$4.99

$

In Stock, Qty 13

0

20

Echo 17721441030

WASHER

$1.49

$

Usually ships in 2-4 days

0

21

Echo 17721543130

REEL, ROPE

$16.99

$

In Stock, only 2 left!

0

22

Echo 17722040630

SPRING, RECOIL

$15.99

$

In Stock, only 1 left!

0

23

Echo 17723241030

CASE, STARTER - ORANGE
(Superseded to 17723246430)

$

$

Not available

------------------

ROPE, STARTER 4.0×950

Note: RePower BULK OPTION: 99944450000

$

$

Not available

25

Echo 17722705530

GUIDE, ROPE

$4.99

$

In Stock, Qty 10

0

26

Echo 17722811120

GRIP, STARTER

$6.99

$

Usually ships in 2-4 days

0

27

Echo 90016204020

BOLT 4×20

$1.49

$

In Stock, Qty 20+

0

28

Echo 89011849330

LABEL, ECHO

$7.49

$

In Stock, only 2 left!

0

29

Echo 90050200008

NUT 8×1.25

$0.99

$

In Stock, Qty 7

0

30

Echo 13132840630

HOLDER, VENT

$7.49

$

In Stock, Qty 13

0

31

Echo 13130040630

VENT ASSY
(Superseded to 13130056430)

Note: TYPE 1 S/N 001001 - 040446

$8.99

$

In Stock, Qty 7

0

31

Echo A356000031

VENT ASSY

Note: TYPE 1/1E S/N 040447 & UP / 001001 & UP

$9.49

$

In Stock, Qty 20+

0

32

Echo 130111-00530

CLIP 5.5

$0.99

$

In Stock, Qty 20+

0

33

Echo 13201051230

PIPE, FUEL VENT 3×5×60

Note: RePower BULK OPTION: 90015

$5.99

$

In Stock, only 2 left!

0

34

Echo V137000030

GROMMET, FUEL
(Superseded to 13211546730)

$2.49

$

In Stock, Qty 20+

0

35

Echo 900603-00005

WASHER 5.5×12×0.8

Note: TYPE 1 S/N 001001 - 040446

$0.99

$

In Stock, Qty 20+

0

35

Echo 132013-09820

CLIP 6 MM

Note: TYPE 1/1E S/N 040447 & UP / 001001 & UP

$0.99

$

In Stock, Qty 8

0

36

Echo 131205-07320

FILTER, FUEL

$6.49

$

In Stock, Qty 20+

0

37

Echo 13201056330

PIPE, FUEL RETURN 3×6×90 MM CLEAR

Note: RePower BULK OPTION: 90017

$3.49

$

In Stock, Qty 10

0

38

Echo V471001190

PIPE, FUEL 3x-5x-180
(Superseded to V471001191)

Note: RePower BULK OPTION: 90014

$1.99

$

In Stock, Qty 20+

0

39

Echo 13201043130

PIPE, FUEL
(Superseded to P021045540)

Note: S/N 001001 - 040446

$11.99

$

Usually ships in 2-4 days

0

40

Echo 13192311120

CUSHION

$1.99

$

Usually ships in 2-4 days

0

41

Echo 13101046930

TANK, FUEL
(Superseded to 13101046931)

$26.99

$

Usually ships in 2-4 days

0

42

Echo 13192443130

CUSHION

$5.49

$

Usually ships in 2-4 days

0

43

Echo 13191043130

BRACKET, FUEL TANK

$12.99

$

Usually ships in 2-4 days

0

44

Echo 90023805014

SCREW 5×14

$0.99

$

In Stock, Qty 11

0

45

Echo 13100455830

CAP ASSY, FUEL
(Superseded to P200000830)

Note: Includes ITEM 46

$5.49

$

In Stock, only 2 left!

0

46

Echo 131016-55830

GASKET, FUEL CAP

$

$

Not available

Echo 99944400050

BULK ROPE
(Superseded to 99944450000)

$42.99

$

In Stock, Qty 20+

0
