SRM-3800 - Echo String Trimmer (Type 1E) Ignition, Starter, Fuel System Parts Diagram

String Trimmer (Type 1E)

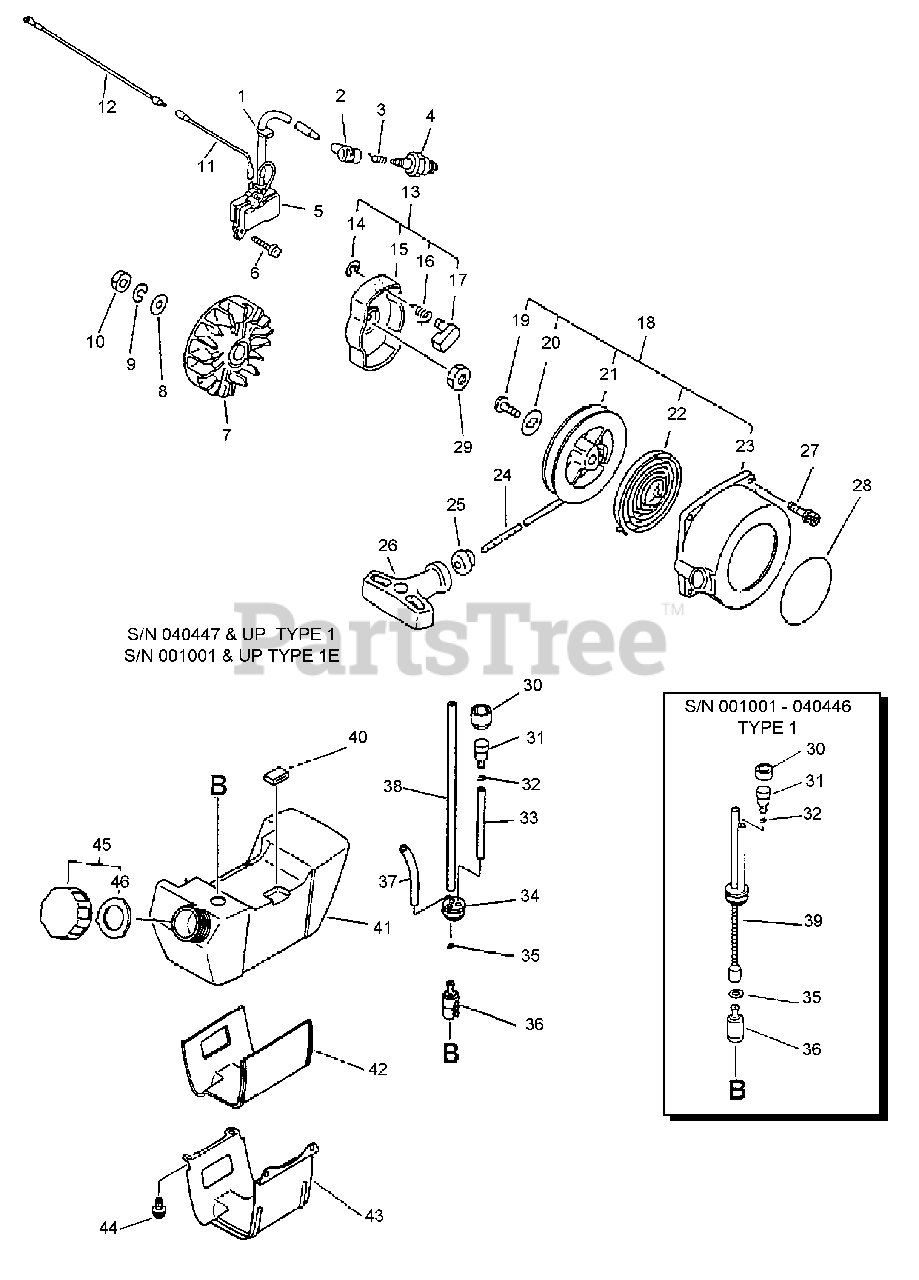

Ignition, Starter, Fuel System Parts Diagram

  • Title

1

Echo 15611240630

GROMMET

$1.49

$

In Stock, only 2 left!

0

2

Echo 15901203433

CAP, SPARK PLUG

$6.99

$

In Stock, Qty 20+

0

3

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.49

$

In Stock, Qty 20+

0

4

Echo 15901010630

SPARK PLUG -- BPM-7A
(Superseded to 15901010230)

$3.49

$

In Stock, Qty 20+

0

5

Echo 15662642230

COIL, IGNITION

$147.99

$

Usually ships in 2-4 days

0

6

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

7

Echo 15680142230

FLYWHEEL

$118.99

$

Usually ships in 2-4 days

0

8

Echo 90060000010

WASHER - 10

$0.99

$

In Stock, Qty 12

0

9

Echo 90060500010

LOCKWASHER - 10

$0.99

$

In Stock, Qty 9

0

10

Echo 90050300010

NUT - 10

$1.49

$

Usually ships in 2-4 days

0

11

Echo 16202142230

LEAD - IGNITION

$3.99

$

Usually ships in 2-4 days

0

12

Echo 15663543130

LEAD - GROUND

$1.99

$

In Stock, Qty 5

0

13

Echo 17720241030

STARTER PAWL ASSY
(Superseded to A052000370)

Note: Includes ITEMS 14-17

$13.99

$

In Stock, Qty 9

0

14

Echo 90070000004

RING, RETAINING - 4

$0.99

$

In Stock, Qty 20+

0

15

Echo 17721041030

CATCHER, PAWL

$7.49

$

Usually ships in 2-4 days

0

16

Echo 17723440630

SPRING, RETURN

$3.49

$

In Stock, Qty 18

0

17

Echo 17721840630

PAWL, STARTER
(Superseded to A514000120)

$3.49

$

In Stock, Qty 20+

0

18

Echo 17720051430

STARTER ASSY
(Superseded to A051000160)

Note: INCLUDES ITEMS 19 - 26

$73.99

$

Usually ships in 2-4 days

0

19

Echo 17723640630

SCREW

$3.99

$

In Stock, Qty 14

0

20

Echo 17721441030

WASHER

$1.49

$

Usually ships in 2-4 days

0

21

Echo 17721543130

REEL, ROPE

$15.99

$

In Stock, only 1 left!

0

22

Echo 17722040630

SPRING, REWIND

$14.99

$

In Stock, Qty 8

0

23

Echo 17723241030

CASE, STARTER - ORANGE
(Superseded to 17723246430)

$43.99

$

Usually ships in 2-4 days

0

24

------------------

ROPE, STARTER - 4X950

Note: RePower BULK OPTION: 99944450000

$

$

Not available

25

Echo 17722705530

GUIDE, ROPE

$3.99

$

In Stock, Qty 10

0

26

Echo 17722811120

GRIP, STARTER

$5.99

$

In Stock, only 1 left!

0

27

Echo 90016204020

SCREW - 4X20

$1.49

$

In Stock, Qty 20+

0

28

Echo 89011849330

LABEL - ECHO

$6.49

$

In Stock, Qty 10

0

29

Echo 90050200008

NUT - 8

$0.99

$

In Stock, Qty 5

0

30

Echo 13132840630

COVER, VENT

$6.49

$

In Stock, Qty 20+

0

31

Echo 13130040630

VENT, FUEL TANK
(Superseded to 13130056430)

Note: TYPE 1 S/N 001001 - 040446

$7.49

$

In Stock, Qty 20+

0

31

Echo A356000031

VENT, FUEL TANK

Note: TYPE 1/1E S/N 040447 & UP / 001001 & UP

$7.99

$

In Stock, Qty 20+

0

32

Echo 13011100530

CLIP - 5.5

$0.99

$

In Stock, Qty 20+

0

33

Echo 13201051230

PIPE - 3X6X70 -- BLACK

Note: RePower BULK OPTION: 90015

$4.99

$

In Stock, Qty 5

0

34

Echo V137000030

GROMMET
(Superseded to 13211546730)

$1.99

$

In Stock, Qty 20+

0

35

Echo 90060300005

WASHER - 5

Note: TYPE 1 S/N 001001 - 040446

$0.99

$

In Stock, Qty 20+

0

35

Echo 13201309820

CLIP - 6

Note: TYPE 1/1E S/N 040447 & UP / 001001 & UP

$0.99

$

In Stock, Qty 20+

0

36

Echo 13120507320

FILTER, FUEL
(Superseded to 13120507321)

$5.49

$

In Stock, Qty 20+

0

37

Echo 13201056330

PIPE - 3X6X90 -- CLEAR

Note: RePower BULK OPTION: 90017

$2.99

$

In Stock, Qty 20+

0

38

Echo V471001190

PIPE - 3X5X180 -- BLACK
(Superseded to V471001191)

Note: RePower BULK OPTION: 90014

$1.49

$

In Stock, Qty 10

0

39

Echo 13201043130

FUEL PIPE ASSY
(Superseded to P021045540)

$10.99

$

Usually ships in 2-4 days

0

40

Echo 13192311120

CUSHION

$1.49

$

Usually ships in 2-4 days

0

41

Echo 13101046930

TANK, FUEL
(Superseded to 13101046931)

$25.99

$

In Stock, only 1 left!

0

42

Echo 13192443130

CUSHION

$4.49

$

Usually ships in 2-4 days

0

43

Echo 13191043130

BRACKET, FUEL TANK

$10.99

$

Usually ships in 2-4 days

0

44

Echo 90023805014

SCREW - 5X14

$0.99

$

In Stock, Qty 15

0

45

Echo 13100455830

CAP ASSY
(Superseded to P200000830)

Note: Includes ITEM 46

$4.49

$

In Stock, Qty 5

0

46

Echo 13101655830

GASKET, CAP
(Superseded to V107000190)

$1.49

$

In Stock, Qty 20+

0

Echo 99944400050

BULK ROPE
(Superseded to 99944450000)

$35.99

$

In Stock, Qty 20+

0
