SRM-400 AE - Echo String Trimmer Clutch, Ignition, Starter Parts Diagram

String Trimmer

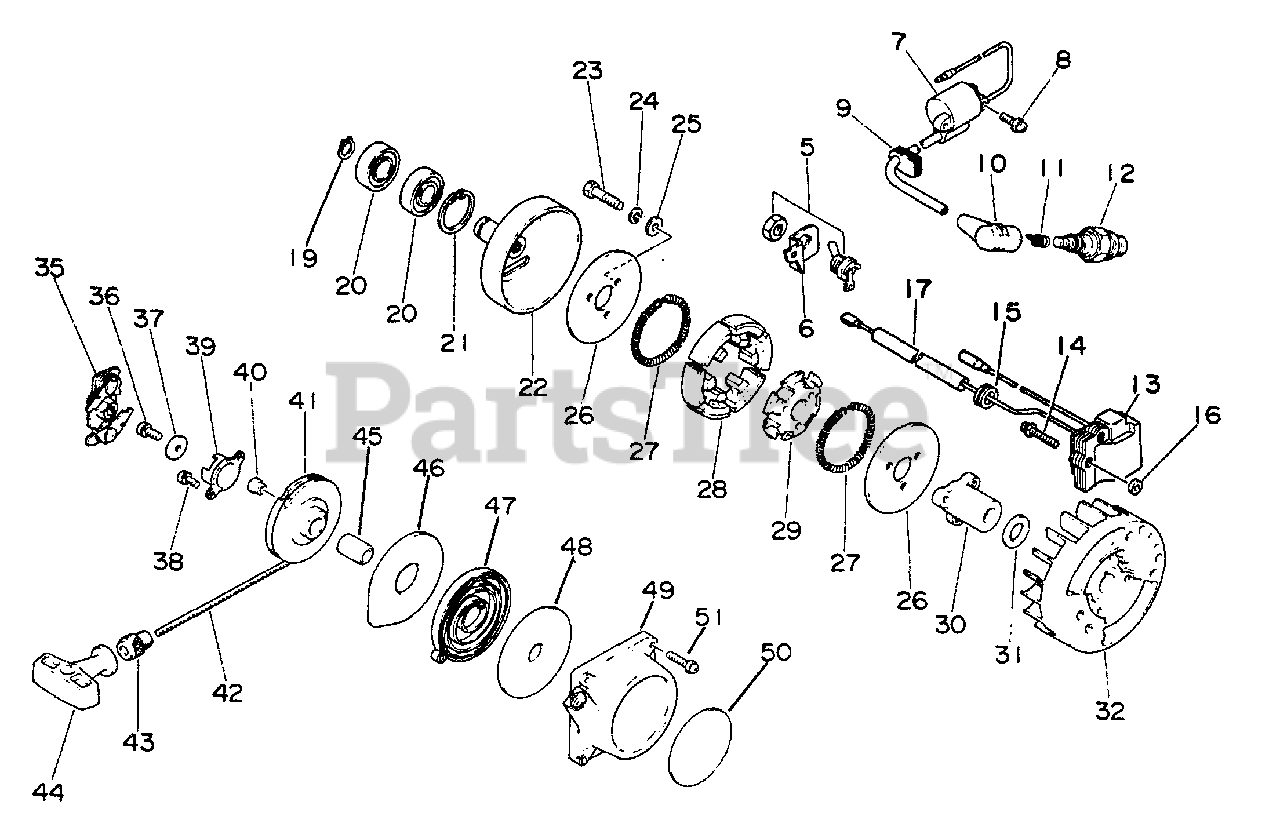

Clutch, Ignition, Starter Parts Diagram

  • Title

5

Echo 16340006520

SWITCH, IGNITION
(Superseded to Discontinued)

$

$

Not available

6

Echo 16381006720

BRACKET, SWITCH

$1.49

$

Usually ships in 2-4 days

0

7

Echo 15662621430

COIL, IGNITION
(Superseded to Discontinued)

$

$

Not available

8

Echo 900242-04014

SCREW 4×14

$0.99

$

In Stock, Qty 5

0

9

Echo 15011009130

GROMMET

$0.99

$

Usually ships in 2-4 days

0

10

Echo 15901203433

CAP, SPARK PLUG

$8.49

$

In Stock, Qty 20+

0

11

Echo 159011-03432

TERMINAL, SPARK PLUG
(Superseded to 15901103432)

$1.99

$

In Stock, Qty 20+

0

12

Echo 15901010630

SPARK PLUG - BPM7A
(Superseded to 15901010230)

$3.99

$

In Stock, Qty 20+

0

13

Echo 15660122730

COIL, IGNITION
(Superseded to Discontinued)

$

$

Not available

14

Echo 90024204022

SCREW 4×22

$0.99

$

In Stock, Qty 8

0

15

Echo 15011409130

GROMMET

$0.99

$

Usually ships in 2-4 days

0

16

Echo 15011709130

WASHER

$1.99

$

Usually ships in 2-4 days

0

17

Echo 15661124830

TUBE
(Superseded to Discontinued)

$

$

Not available

19

Echo 90070100015

RING, RETAINING 15

$1.49

$

In Stock, only 2 left!

0

20

Echo 90081906202

BEARING, BALL 6203

$18.99

$

Usually ships in 2-4 days

0

21

Echo 90070200035

RING, SNAP 35

$2.49

$

In Stock, Qty 9

0

22

Echo 17500521430

DRUM, CLUTCH
(Superseded to 17500521431)

$

$

Not available

23

Echo 90010005025

BOLT - 5×25

$3.49

$

Usually ships in 2-4 days

0

24

Echo 900605-00005

WASHER, SPRING 5

$0.99

$

In Stock, Qty 9

0

25

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

26

Echo 17501921430

PLATE, SIDE

$5.49

$

Usually ships in 2-4 days

0

Echo 17500021430

CLUTCH ASSY
(Superseded to 17500021431)

Note: Includes 27 thru 30

$197.99

$

Usually ships in 2-4 days

0

27

Echo 17501803330

SPRING, CLUTCH

$2.99

$

Usually ships in 2-4 days

0

28

Echo 17500904230

SHOE, CLUTCH
(Superseded to 17500904231)

$28.99

$

In Stock, Qty 5

0

29

Echo 17501621430

BOSS, CLUTCH
(Superseded to Discontinued)

$

$

Not available

30

Echo 17505621430

ADAPTER
(Superseded to Discontinued)

$

$

Not available

31

Echo 10013221430

WASHER
(Superseded to Discontinued)

$

$

Not available

32

Echo 15680021430

FLYWHEEL
(Superseded to Discontinued)

$

$

Not available

35

Echo 177305-06720

STARTER PAWL ASSY
(Superseded to 17730540530)

$

$

Not available

Echo 17720006721

STARTER ASSY
(Superseded to 17720006722)

Note: Includes 36 thru 49

$

$

Not available

36

Echo 90024105010

SCREW 5×10

$0.99

$

In Stock, only 3 left!

0

37

Echo 177214-02830

WASHER 5.2×16×1.0

$0.99

$

In Stock, only 2 left!

0

38

Echo 900241-04008

SCREW 4×8

$0.99

$

In Stock, Qty 10

0

39

Echo 177243-04130

PAWL CATCHER

$12.99

$

Usually ships in 2-4 days

0

40

Echo 177246-03930

CLIP, STARTER ROPE

$0.99

$

In Stock, only 2 left!

0

41

Echo 177215-04130

REEL, ROPE

$25.99

$

Usually ships in 2-4 days

0

42

Echo 177226-03930

ROPE, STARTER 3.5×850
(Superseded to 17722603930)

Note: RePower BULK OPTION: 99944445000

$6.99

$

In Stock, only 2 left!

0

43

Echo 17722705330

GUIDE, ROPE
(Superseded to Discontinued)

$

$

Not available

44

Echo 177228-11130

HANDLE

$6.99

$

Usually ships in 2-4 days

0

45

Echo 177216-12330

BUSHING

$1.99

$

In Stock, Qty 20+

0

46

Echo 17724206721

PLATE, SIDE
(Superseded to Discontinued)

$

$

Not available

47

Echo 177220-03930

SPRING, RECOIL

$21.99

$

In Stock, only 2 left!

0

48

Echo 177221-06720

PLATE, SIDE

$3.49

$

Usually ships in 2-4 days

0

49

Echo 17720906721

CASE, STARTER
(Superseded to Discontinued)

$

$

Not available

50

Echo 89001211132

LABEL - ECHO
(Superseded to 89001211133)

$7.49

$

In Stock, only 2 left!

0

51

Echo 900242-04020

SCREW 4×20

$0.99

$

In Stock, Qty 16

0
