SRM-400 AE - Echo String Trimmer Driveshaft, Handles, Throttle Parts Diagram

String Trimmer

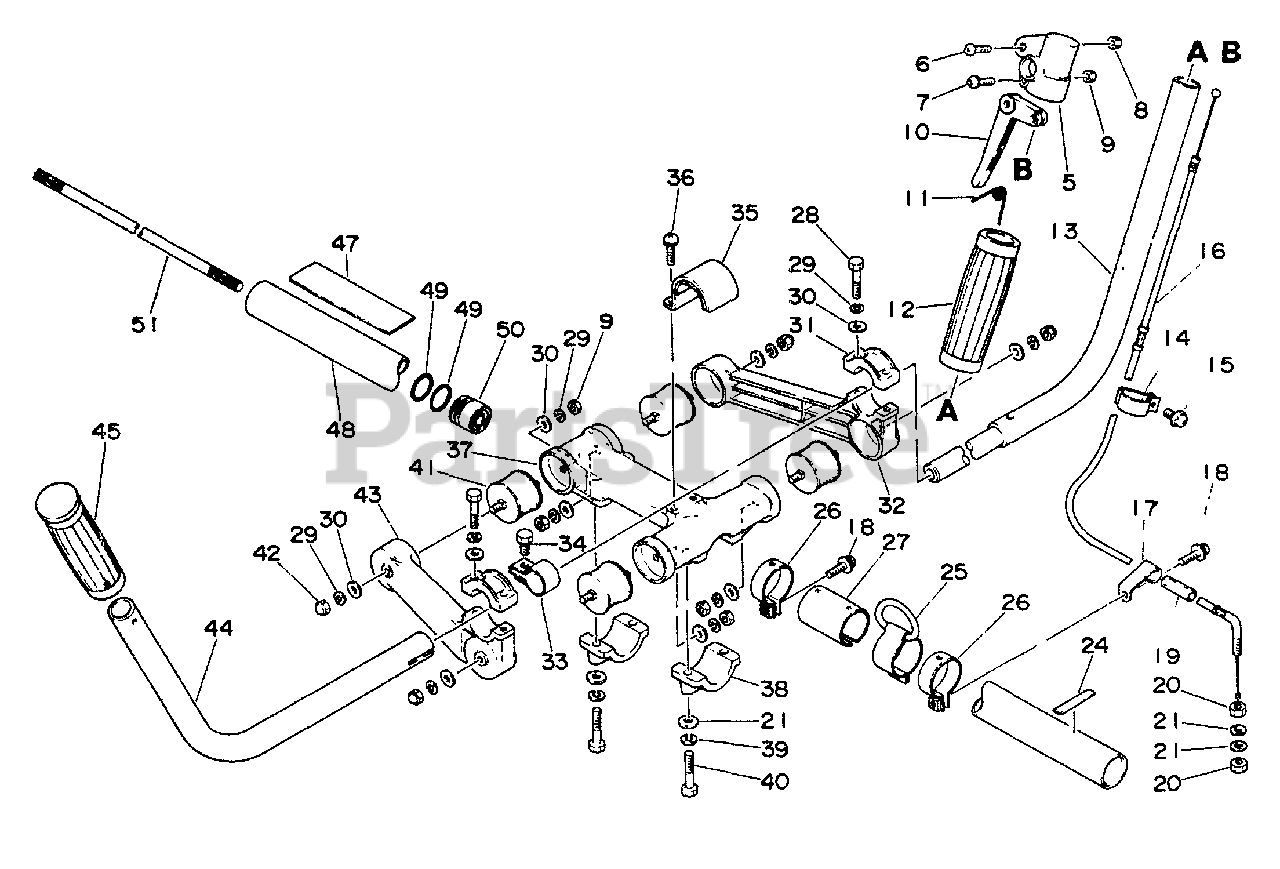

Driveshaft, Handles, Throttle Parts Diagram

  • Title

5

Echo 17802406130

BRACKET, TRIGGER

$6.49

$

Usually ships in 2-4 days

0

6

Echo 17811005330

SCREW

$0.99

$

In Stock, Qty 11

0

7

Echo 90022005025

SCREW 5×25

$0.99

$

In Stock, Qty 19

0

8

Echo 433020-00830

LOCKNUT - 5
(Superseded to 90056000005)

$1.49

$

In Stock, Qty 14

0

9

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

10

Echo 17801005330

TRIGGER, THROTTLE
(Superseded to Discontinued)

$

$

Not available

11

Echo 17804305230

SPRING

$0.99

$

In Stock, only 3 left!

0

12

Echo 35131504230

GRIP, HANDLE
(Superseded to 35131527930)

$6.49

$

In Stock, only 2 left!

0

13

Echo 35111008130

HANDLE

$33.99

$

Usually ships in 2-4 days

0

14

Echo 17810606230

CLAMP
(Superseded to Discontinued)

$

$

Not available

15

Echo 900242-05012

SCREW 5×12

$0.99

$

In Stock, Qty 20+

0

16

Echo 17800209131

CABLE, THROTTLE
(Superseded to Discontinued)

$

$

Not available

17

Echo 17811106230

CLIP

$2.99

$

Usually ships in 2-4 days

0

19

Echo 17801605330

TUBE, VINYL

$1.49

$

Usually ships in 2-4 days

0

20

Echo 900502-00006

NUT M6

$0.99

$

In Stock, Qty 12

0

21

Echo 90060000006

WASHER 6.5×11.5×0.8

$0.99

$

In Stock, Qty 20+

0

24

Echo 890152-04930

LABEL - ALIGNMENT

$0.99

$

In Stock, Qty 11

0

Echo 30120006230

HANGER ASSY

Note: Includes items 18, 25 thru 17

$28.99

$

Usually ships in 2-4 days

0

18

Echo 900242-05014

SCREW 5×14

$0.99

$

In Stock, Qty 20+

0

25

Echo 30121006230

HOOK
(Superseded to 30120006230)

$28.99

$

Usually ships in 2-4 days

0

26

Echo 30120705630

CLAMP
(Superseded to Discontinued)

$

$

Not available

27

Echo 30122406230

COLLAR
(Superseded to Discontinued)

$

$

Not available

Echo 35200004230

V.L. UNIT
(Superseded to Discontinued)

Note: Includes items 9, 21 and 28 thru 43 except 33 and 34

$

$

Not available

28

Echo 90010005025

BOLT - 5×25

$3.49

$

Usually ships in 2-4 days

0

29

Echo 900605-00005

WASHER, SPRING 5

$0.99

$

In Stock, Qty 9

0

30

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

31

Echo 35201505330

RETAINER

$7.99

$

In Stock, only 2 left!

0

32

Echo 35201405330

ARM, RETAINER - RIGHT
(Superseded to Discontinued)

$

$

Not available

33

Echo 35164208130

BAND
(Superseded to Discontinued)

$

$

Not available

34

Echo 90010006012

BOLT - 6×12

$0.99

$

Usually ships in 2-4 days

0

35

Echo 35209005330

PLATE
(Superseded to Discontinued)

$

$

Not available

36

Echo 90024105014

SCREW 5×14

$0.99

$

Usually ships in 2-4 days

0

37

Echo 35201005330

HOLDER, D.S. HOUSING
(Superseded to Discontinued)

$

$

Not available

38

Echo 35201805330

HOLDER
(Superseded to Discontinued)

$

$

Not available

39

Echo 90060500006

WASHER, SPRING 6

$0.99

$

In Stock, Qty 15

0

40

Echo 90010006030

BOLT - 6×30
(Superseded to Discontinued)

$

$

Not available

41

Echo 35201905330

CUSHION
(Superseded to Discontinued)

$

$

Not available

42

Echo 30032303130

NUT - 5 -- CAP
(Superseded to 21041901110)

$0.99

$

In Stock, Qty 9

0

43

Echo 35201305330

ARM, HANDLE - LEFT
(Superseded to Discontinued)

$

$

Not available

44

Echo 35161008130

HANDLE, FRONT
(Superseded to Discontinued)

$

$

Not available

45

Echo 351311-02330

GRIP, HANDLE

$7.49

$

In Stock, only 1 left!

0

47

Echo 89016020330

LABEL - CAUTION
(Superseded to 89016024230)

$4.49

$

Usually ships in 2-4 days

0

48

Echo 61020604231

MAIN PIPE ASSY
(Superseded to Discontinued)

Note: Includes items 49 and 50

$

$

Not available

49

Echo 61011204230

O-RING

$3.99

$

Usually ships in 2-4 days

0

50

Echo 61010504230

BUSHING
(Superseded to Discontinued)

$

$

Not available

51

Echo 61001106230

DRIVESHAFT

$55.99

$

Usually ships in 2-4 days

0
