SRM-400 AE - Echo String Trimmer Fuel System Parts Diagram

String Trimmer

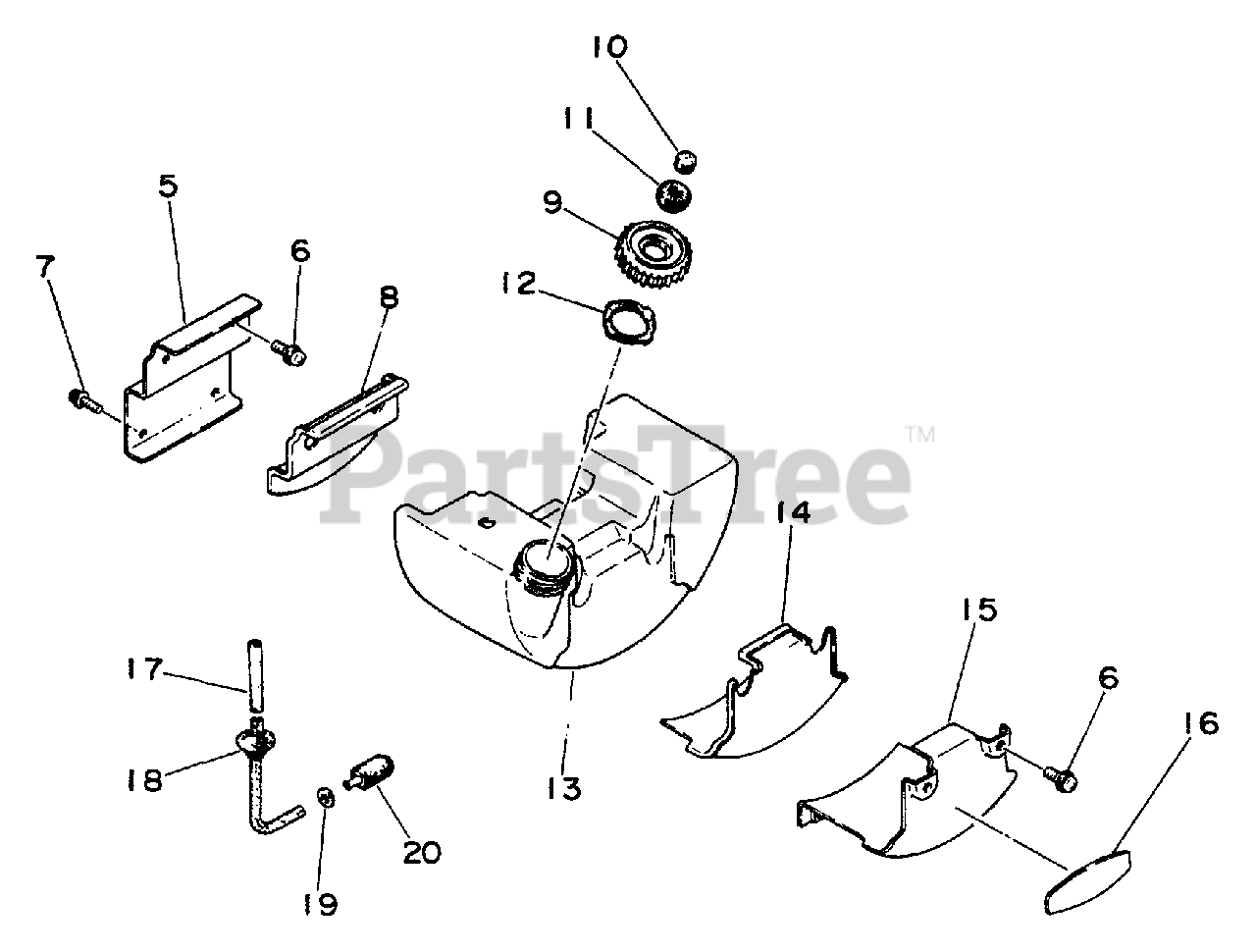

Fuel System Parts Diagram

  • Title

5

Echo 13191024830

BRACKET, FUEL TANK

$8.99

$

Usually ships in 2-4 days

0

6

Echo 900242-05014

SCREW 5×14

$0.99

$

In Stock, Qty 20+

0

7

Echo 900242-04014

SCREW 4×14

$0.99

$

In Stock, Qty 5

0

8

Echo 13192024830

CUSHION
(Superseded to Discontinued)

$

$

Not available

9

Echo 13100406320

CAP ASSY
(Superseded to Discontinued)

Note: Includes ITEMS 10-12

$

$

Not available

10

Echo 13131505020

FILTER, CHECK VALVE

$0.99

$

In Stock, Qty 8

0

11

Echo 13131406320

VENT ASSY

$6.49

$

In Stock, Qty 9

0

12

Echo 13101604920

PACKING

$2.99

$

Usually ships in 2-4 days

0

13

Echo 13101024831

TANK, FUEL
(Superseded to Discontinued)

$

$

Not available

14

Echo 13192424830

CUSHION

$4.99

$

Usually ships in 2-4 days

0

15

Echo 13191824830

BRACKET, FUEL TANK

$14.99

$

Usually ships in 2-4 days

0

16

Echo 89011824030

LABEL - ECHO
(Superseded to Discontinued)

$

$

Not available

17

Echo 13200724830

FUEL PIPE KIT
(Superseded to Discontinued)

Note: Includes items 18

$

$

Not available

18

Echo 13211504920

GROMMET

$1.99

$

In Stock, Qty 20+

0

19

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

20

Echo 13120021330

FILTER, FUEL
(Superseded to 13120002830)

$9.99

$

In Stock, Qty 20+

0
