SRM-400 AE - Echo String Trimmer Fuel System Parts Diagram

String Trimmer

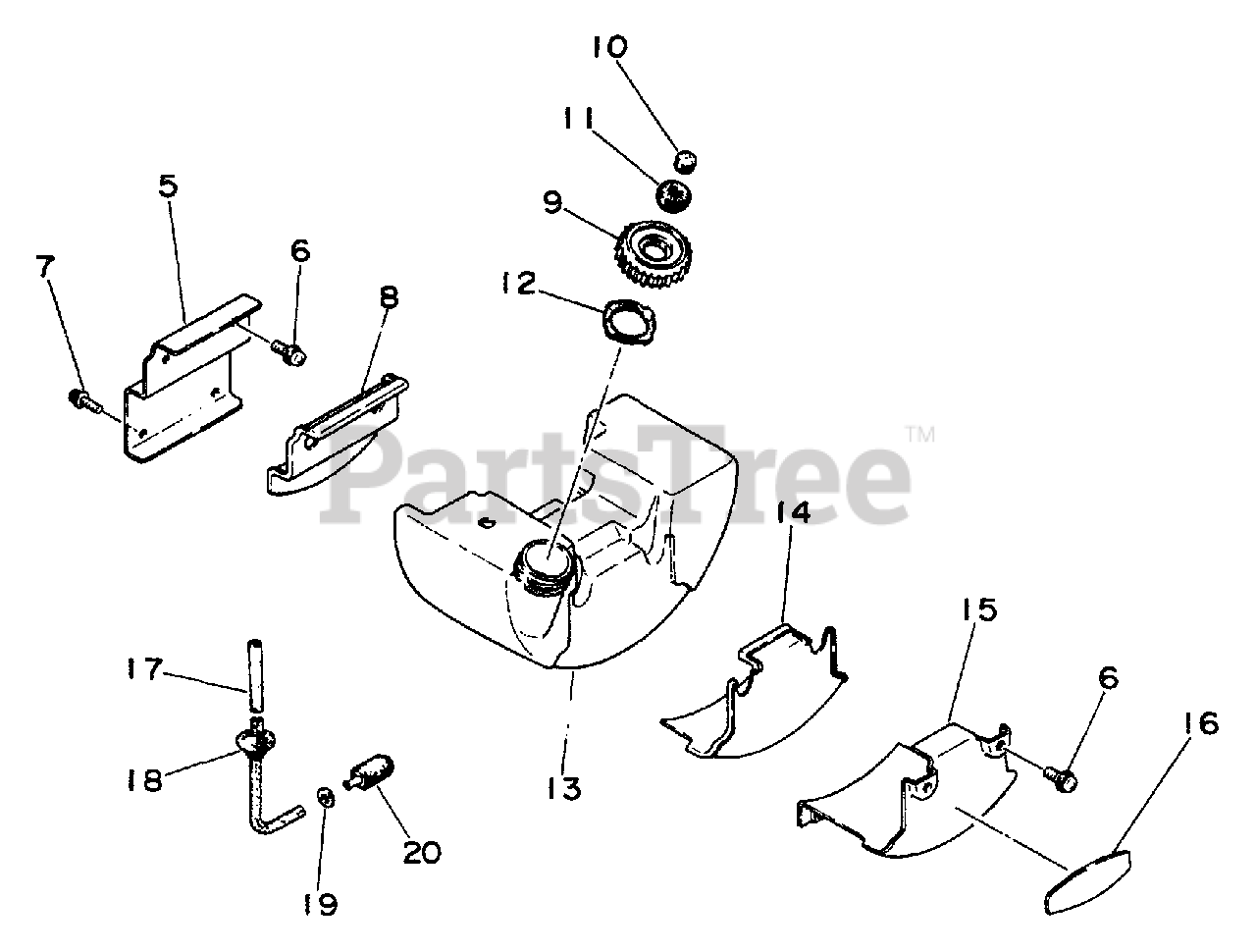

Fuel System Parts Diagram

  • Title

5

Echo 13191024830

BRACKET, FUEL TANK

$7.49

$

Usually ships in 2-4 days

0

6

Echo 90024205014

SCREW - 5X14

$0.99

$

In Stock, Qty 20+

0

7

Echo 90024204014

SCREW - 4X14

$0.99

$

In Stock, Qty 15

0

8

Echo 13192024830

CUSHION
(Superseded to Discontinued)

$

$

Not available

9

Echo 13100406320

CAP ASSY
(Superseded to Discontinued)

Note: Includes ITEMS 10-12

$

$

Not available

10

Echo 13131505020

FILTER

$0.99

$

In Stock, Qty 9

0

11

Echo 13131406320

VENT

$5.49

$

In Stock, Qty 7

0

12

Echo 13101604920

GASKET, CAP

$

$

Not available

13

Echo 13101024831

TANK, FUEL
(Superseded to Discontinued)

$

$

Not available

14

Echo 13192424830

CUSHION

$3.99

$

Usually ships in 2-4 days

0

15

Echo 13191824830

BRACKET, FUEL TANK

$12.99

$

Usually ships in 2-4 days

0

16

Echo 89011824030

LABEL - ECHO
(Superseded to Discontinued)

$

$

Not available

17

Echo 13200724830

FUEL PIPE KIT
(Superseded to Discontinued)

Note: Includes items 18

$

$

Not available

18

Echo 13211504920

GROMMET

$1.49

$

In Stock, Qty 20+

0

19

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

20

Echo 13120021330

FILTER, FUEL
(Superseded to 13120002830)

$8.99

$

In Stock, Qty 20+

0
