SRM-400 AE - Echo String Trimmer Gear Case, Harness, Tools Parts Diagram

String Trimmer

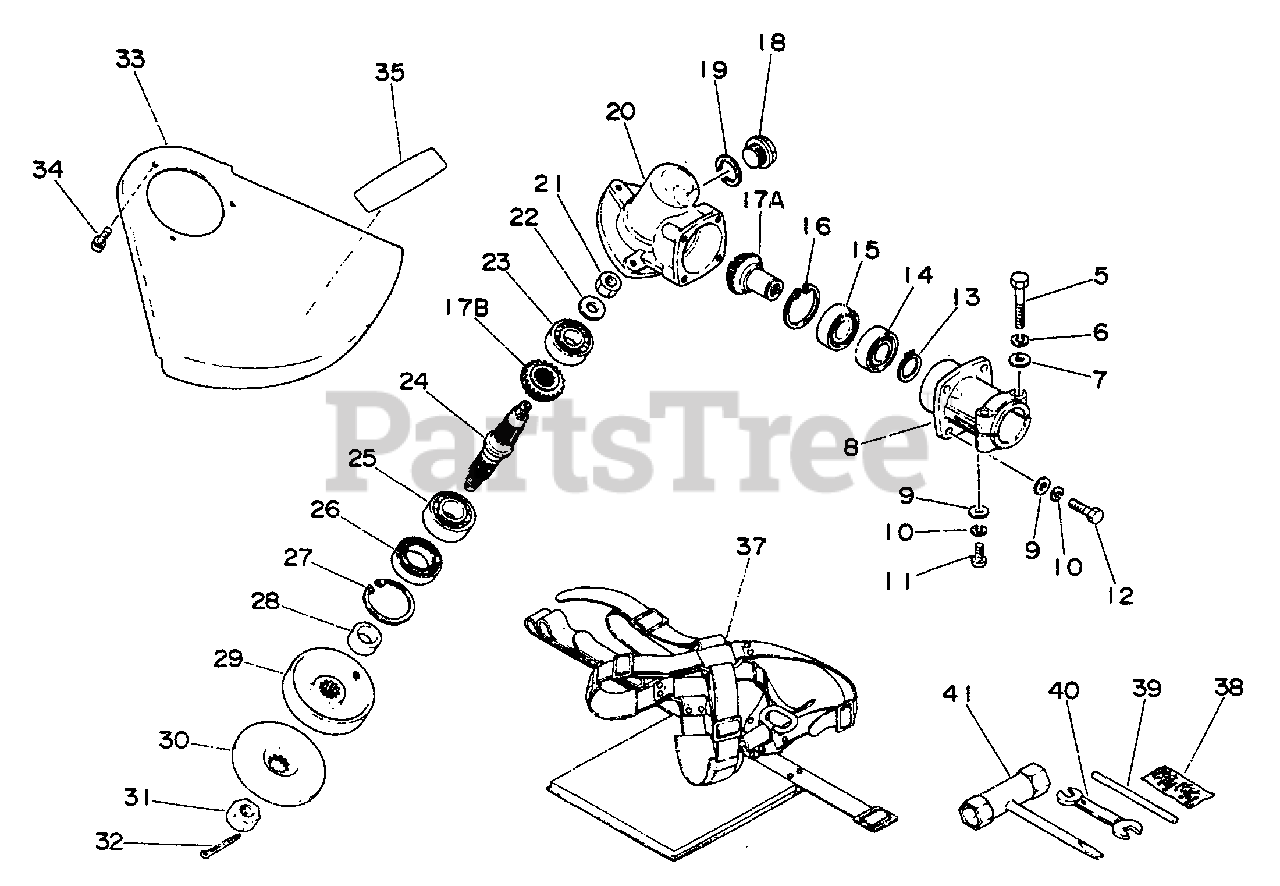

Gear Case, Harness, Tools Parts Diagram

  • Title

Echo 61040022730

GEAR CASE ASSY
(Superseded to Discontinued)

Note: Includes items 5 thru 32

$

$

Not available

5

Echo 90010006035

BOLT - 6×32

$0.99

$

Usually ships in 2-4 days

0

6

Echo 90060500006

WASHER, SPRING 6

$0.99

$

In Stock, Qty 14

0

7

Echo 90060000006

WASHER 6.5×11.5×0.8

$0.99

$

In Stock, Qty 20+

0

8

Echo 61041206230

HOUSING, BEARING

$51.99

$

Usually ships in 2-4 days

0

9

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

10

Echo 900605-00005

WASHER, SPRING 5

$0.99

$

In Stock, Qty 9

0

11

Echo 90022005012

SCREW 5×12

$0.99

$

Usually ships in 2-4 days

0

12

Echo 90010005020

BOLT - 5×20

$0.99

$

In Stock, Qty 8

0

13

Echo 90070100015

RING, RETAINING 15

$1.49

$

In Stock, only 2 left!

0

14

Echo 90080106002

BEARING, BALL 6002D

$18.99

$

Usually ships in 2-4 days

0

15

Echo 90080006002

BEARING, BALL 6002
(Superseded to Discontinued)

$

$

Not available

16

Echo 90070200032

RING, SNAP Ø32

$2.49

$

In Stock, only 2 left!

0

18

Echo 61051001930

FITTING, GREASE

$5.99

$

In Stock, only 1 left!

0

19

Echo 61051101230

GASING, GEAR

$0.99

$

Usually ships in 2-4 days

0

20

Echo 61041006231

HOUSING, GEAR CASE
(Superseded to Discontinued)

$

$

Not available

21

Echo 90050200008

NUT 8×1.25

$0.99

$

In Stock, Qty 7

0

22

Echo 90060000008

WASHER 8.5×16×1.2

$0.99

$

Usually ships in 2-4 days

0

23

Echo 9403536201

BEARING, BALL - 6201 C3

$9.99

$

In Stock, only 3 left!

0

24

Echo 61031022730

GEAR, SHAFT
(Superseded to Discontinued)

$

$

Not available

25

Echo 90081006202

BEARING, BALL 6202

$11.99

$

In Stock, only 2 left!

0

26

Echo 61041306230

SEAL
(Superseded to Discontinued)

$

$

Not available

27

Echo 90070200035

RING, SNAP 35

$2.49

$

In Stock, Qty 9

0

28

Echo 61033406230

SPACER

$11.99

$

Usually ships in 2-4 days

0

29

Echo 61031306230

PLATE
(Superseded to Discontinued)

$

$

Not available

30

Echo 61031406231

PLATE, ADAPTER - LOWER
(Superseded to Discontinued)

$

$

Not available

31

Echo 900511-00010

NUT 10

$1.99

$

In Stock, Qty 20+

0

32

Echo 900300-20022

PIN, COTTER 2×22

Note: BULK OPTION: 89850201130 - 10 PACK

$0.99

$

In Stock, Qty 14

0

33

Echo 69901006230

SHIELD
(Superseded to Discontinued)

$

$

Not available

34

Echo 90024105014

SCREW 5×14

$0.99

$

Usually ships in 2-4 days

0

35

Echo 89013824030

LABEL - ECHO
(Superseded to 89013844330)

$0.99

$

In Stock, Qty 5

0

37

Echo 30100024530

SHOULDER STRAP ASSY
(Superseded to 30100043130)

$65.99

$

In Stock, Qty 9

0

38

Echo 898502-01130

PIN, COTTER 2×22 (PKG. OF 10)

$1.99

$

In Stock, only 3 left!

0

39

Echo 897518-01131

TOOL, LOCKING 5×120 MM

$

$

Not available

40

Echo 895112-00330

SPANNER 8×10

$0.99

$

In Stock, Qty 6

0

41

Echo 89541007930

T-WRENCH

$12.99

$

Usually ships in 2-4 days

0
