SRM-400 BE - Echo String Trimmer Carburetor Parts Diagram

String Trimmer

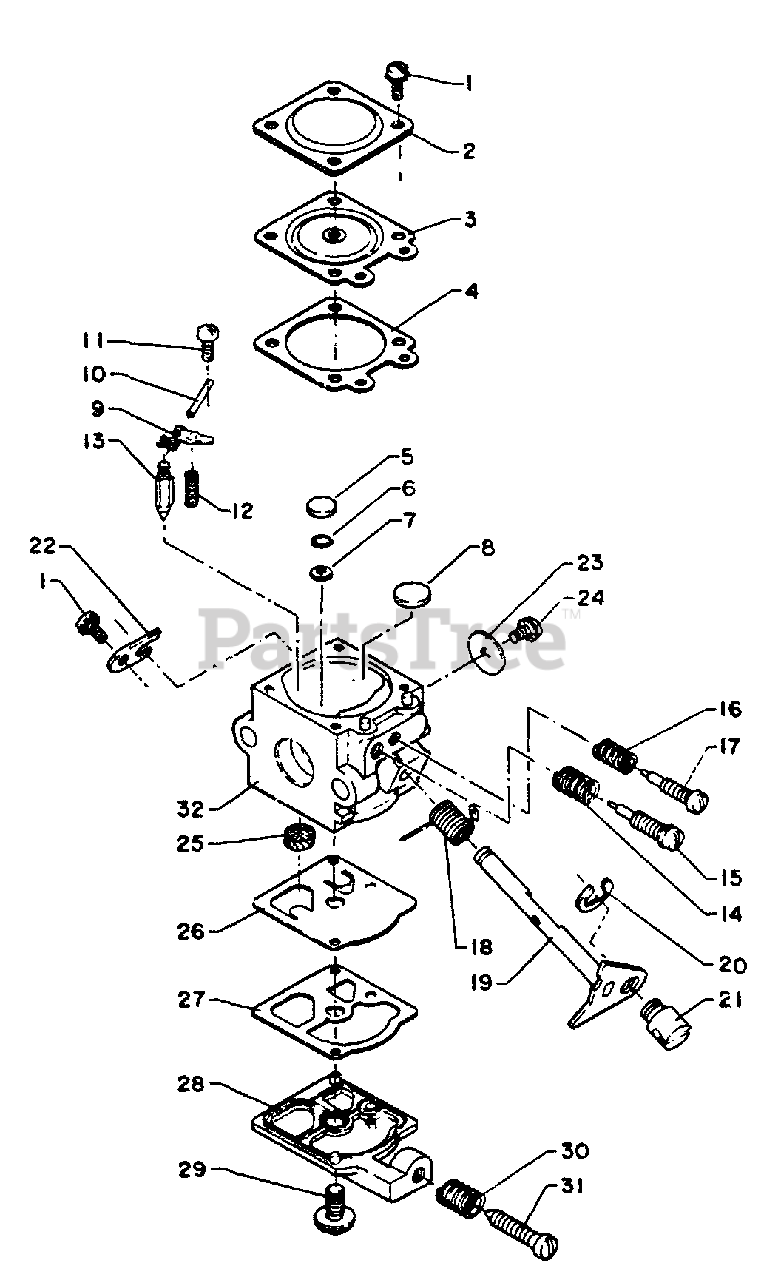

Carburetor Parts Diagram

  • Title

Echo 12300024830

CARBURETOR - WA-142
(Superseded to Discontinued)

$

$

Not available

1

Echo 12310016330

REPAIR KIT, CARBURETOR

Note: Included in Carburetor Repair Kit P/N 12310016330

$32.99

$

In Stock, only 2 left!

0

2

Echo 12314203930

COVER, METERING DIAPHRAGM

$4.99

$

In Stock, only 1 left!

0

3

DIAPHRAGM, METERING

Note: Included in Carburetor Repair Kit P/N 12310016330 And Carburetor Diaphragm/Gasket Kit P/N 12310110530

$

$

Not available

4

GASKET, METERING

Note: Included in Carburetor Repair Kit P/N 12310016330 And Carburetor Diaphragm/Gasket Kit P/N 12310110530

$

$

Not available

5

PLUG, WELCH

Note: Included in Carburetor Repair Kit P/N 12310016330

$

$

Not available

6

RING, RETAINING

Note: Included in Carburetor Repair Kit P/N 12310016330

$

$

Not available

7

STRAINER

Note: Included in Carburetor Repair Kit P/N 12310016330

$

$

Not available

8

PLUG, WELCH

Note: Included in Carburetor Repair Kit P/N 12310016330

$

$

Not available

9

LEVER, METERING

Note: Included in Carburetor Repair Kit P/N 12310016330

$

$

Not available

10

PIN, METERING LEVER

Note: Included in Carburetor Repair Kit P/N 12310016330

$

$

Not available

11

SCREW

Note: Included in Carburetor Repair Kit P/N 12310016330

$

$

Not available

12

SPRING, METERING LEVER

Note: Included in Carburetor Repair Kit P/N 12310016330

$

$

Not available

13

VALVE, INLET NEEDLE

Note: Included in Carburetor Repair Kit P/N 12310016330

$

$

Not available

------------------

SPRING, NEEDLE

Note: Included in Carburetor Repair Kit P/N 12310016330

$

$

Not available

15

Echo 12312000760

NEEDLE, HIGH SPEED

$5.49

$

Usually ships in 2-4 days

0

------------------

SPRING, NEEDLE

Note: Included in Carburetor Repair Kit P/N 12310016330

$

$

Not available

17

Echo 12311824430

NEEDLE, LOW SPEED

$4.99

$

Usually ships in 2-4 days

0

18

Echo 12311315030

SPRING, THROTTLE RETURN

$1.99

$

Usually ships in 2-4 days

0

19

Echo 12311705020

SHAFT, THROTTLE

$6.99

$

Usually ships in 2-4 days

0

20

Echo 12312710630

RING, RETAINING
(Superseded to Discontinued)

$

$

Not available

21

Echo 12317204320

SWIVEL

$2.49

$

Usually ships in 2-4 days

0

22

Echo 12312703930

CLIP, THROTTLE SHAFT

$1.49

$

Usually ships in 2-4 days

0

23

Echo 12311610530

VALVE, THROTTLE

$2.49

$

Usually ships in 2-4 days

0

24

Echo 12311403930

SCREW

$1.49

$

In Stock, Qty 8

0

25

STRAINER

Note: Included in Carburetor Repair Kit P/N 12310016330

$

$

Not available

------------------

DIAPHRAGM, PUMP

Note: Included in Carburetor Repair Kit P/N 12310016330 And Carburetor Diaphragm/gasket kit P/N 12310110530

$

$

Not available

------------------

GASKET, PUMP

Note: Included in Carburetor Repair Kit P/N 12310016330 And Carburetor Diaphragm/gasket kit P/N 12310110530

$

$

Not available

28

Echo 12312424430

COVER, FUEL PUMP

$6.49

$

Usually ships in 2-4 days

0

29

Echo 12311003930

SCREW

$0.99

$

Usually ships in 2-4 days

0

30

Echo 12313306320

SPRING

$1.99

$

Usually ships in 2-4 days

0

31

Echo 12313406320

SCREW, IDLE ADJUST

$2.49

$

In Stock, only 4 left!

0

32

BODY, CARBURETOR

Note: NOT AVAILABLE SEPARATELY

$

$

Not available

Echo 12310016330

REPAIR KIT, CARBURETOR

$32.99

$

In Stock, only 2 left!

0

Echo 12310110530

GASKET / DIAPHRAGM KIT

$16.99

$

In Stock, only 2 left!

0
