SRM-400 E - Echo String Trimmer Driveshaft, Handles, Gear Case, Throttle, Harness, Tools Parts Diagram

String Trimmer

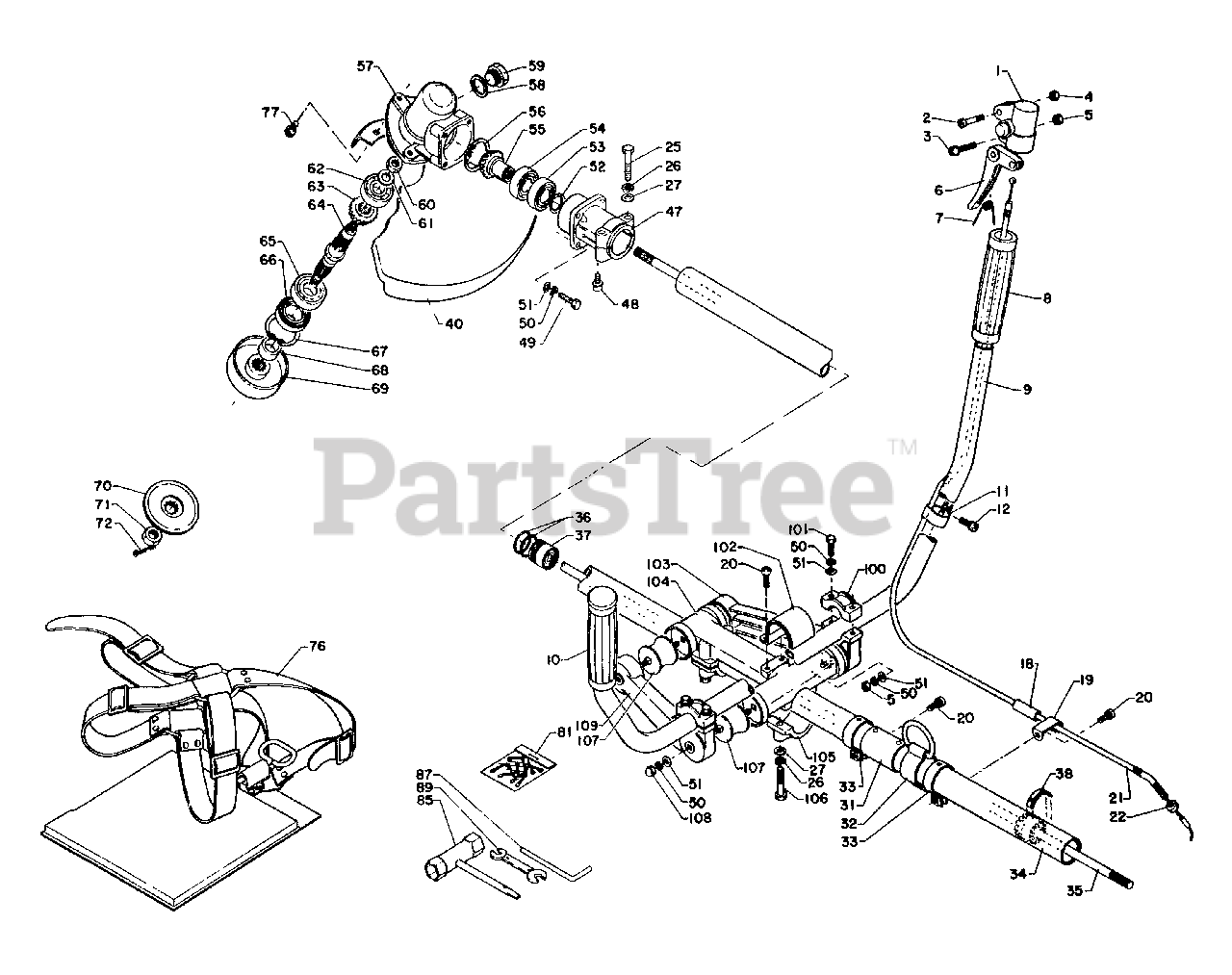

Driveshaft, Handles, Gear Case, Throttle, Harness, Tools Parts Diagram

  • Title

1

Echo 17802406130

BRACKET, TRIGGER

$6.49

$

Usually ships in 2-4 days

0

2

Echo 17811005330

SCREW

$0.99

$

In Stock, Qty 11

0

3

Echo 90022005025

SCREW 5×25

$0.99

$

In Stock, Qty 19

0

4

Echo 433020-00830

LOCKNUT - 5
(Superseded to 90056000005)

$1.49

$

In Stock, Qty 14

0

5

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

6

Echo 17801005330

TRIGGER, THROTTLE
(Superseded to Discontinued)

$

$

Not available

7

Echo 17804305230

SPRING

$0.99

$

In Stock, only 3 left!

0

8

Echo 35131504230

GRIP, HANDLE
(Superseded to 35131527930)

$6.49

$

In Stock, only 2 left!

0

9

Echo 35130006230

HANDLE
(Superseded to Discontinued)

Note: Include 8 and 10

$

$

Not available

10

Echo 351311-02330

GRIP, HANDLE

$7.49

$

In Stock, only 2 left!

0

11

Echo 17810606230

CLAMP
(Superseded to Discontinued)

$

$

Not available

12

Echo 90024105010

SCREW 5×10

$0.99

$

In Stock, only 3 left!

0

18

Echo 17801605330

TUBE, VINYL

$1.49

$

Usually ships in 2-4 days

0

19

Echo 17811106230

CLIP

$2.99

$

Usually ships in 2-4 days

0

20

Echo 90024105014

SCREW 5×14

$0.99

$

Usually ships in 2-4 days

0

21

Echo 17800209130

CABLE, THROTTLE
(Superseded to 17800209131)

$

$

Not available

22

Echo 900502-00006

NUT M6

$0.99

$

In Stock, Qty 11

0

31

Echo 30122406230

COLLAR
(Superseded to Discontinued)

$

$

Not available

32

Echo 30121006230

HOOK
(Superseded to 30120006230)

$28.99

$

Usually ships in 2-4 days

0

33

Echo 30120705630

CLAMP
(Superseded to Discontinued)

$

$

Not available

34

Echo 61020604231

MAIN PIPE ASSY
(Superseded to Discontinued)

Note: Include 36 and 37

$

$

Not available

36

Echo 61011204230

O-RING

$3.99

$

Usually ships in 2-4 days

0

37

Echo 61010504230

BUSHING
(Superseded to Discontinued)

$

$

Not available

35

Echo 61001106230

DRIVESHAFT

$55.99

$

Usually ships in 2-4 days

0

38

Echo 890152-04930

LABEL - ALIGNMENT

$0.99

$

In Stock, Qty 11

0

40

Echo 69901006230

SHIELD
(Superseded to Discontinued)

$

$

Not available

Echo 61040022730

GEAR CASE ASSY
(Superseded to Discontinued)

Note: Consists of 25 thru 27 and 47 thru 72

$

$

Not available

25

Echo 90010006035

BOLT - 6×32

$0.99

$

Usually ships in 2-4 days

0

26

Echo 90060500006

WASHER, SPRING 6

$0.99

$

In Stock, Qty 14

0

27

Echo 90060000006

WASHER 6.5×11.5×0.8

$0.99

$

In Stock, Qty 20+

0

47

Echo 61041206230

HOUSING, BEARING

$51.99

$

Usually ships in 2-4 days

0

48

Echo 900242-05012

SCREW 5×12

$0.99

$

In Stock, Qty 20+

0

49

Echo 90010005020

BOLT - 5×20

$0.99

$

In Stock, Qty 8

0

50

Echo 900605-00005

WASHER, SPRING 5

$0.99

$

In Stock, Qty 9

0

51

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

52

Echo 90070100015

RING, RETAINING 15

$1.49

$

In Stock, only 2 left!

0

53

Echo 90080106002

BEARING, BALL 6002D

$18.99

$

Usually ships in 2-4 days

0

54

Echo 90080006002

BEARING, BALL 6002
(Superseded to Discontinued)

$

$

Not available

55

Echo 61030022730

GEAR SET
(Superseded to Discontinued)

$

$

Not available

56

Echo 90070200032

RING, SNAP Ø32

$2.49

$

In Stock, only 1 left!

0

57

Echo 61041006231

HOUSING, GEAR CASE
(Superseded to Discontinued)

$

$

Not available

58

Echo 61051101230

GASING, GEAR

$0.99

$

Usually ships in 2-4 days

0

59

Echo 61051001930

FITTING, GREASE

$5.99

$

In Stock, only 1 left!

0

60

Echo 90050200008

NUT 8×1.25

$0.99

$

In Stock, Qty 7

0

61

Echo 90060000008

WASHER 8.5×16×1.2

$0.99

$

Usually ships in 2-4 days

0

62

Echo 9403536201

BEARING, BALL - 6201 C3

$9.99

$

In Stock, only 3 left!

0

63

UNKNOWN

$

$

Not available

64

Echo 61031022730

GEAR, SHAFT
(Superseded to Discontinued)

$

$

Not available

65

Echo 90081006202

BEARING, BALL 6202

$11.99

$

In Stock, only 2 left!

0

66

Echo 61041306230

SEAL
(Superseded to Discontinued)

$

$

Not available

67

Echo 90070200035

RING, SNAP 35

$2.49

$

In Stock, Qty 9

0

68

Echo 61033406230

SPACER

$11.99

$

Usually ships in 2-4 days

0

69

Echo 61031306230

PLATE
(Superseded to Discontinued)

$

$

Not available

70

Echo 61031406231

PLATE, ADAPTER - LOWER
(Superseded to Discontinued)

$

$

Not available

71

Echo 900511-00010

NUT 10

$1.99

$

In Stock, Qty 20+

0

72

Echo 900300-20022

PIN, COTTER 2×22

Note: BULK OPTION: 89850201130 - 10 PACK

$0.99

$

In Stock, Qty 14

0

76

Echo 30100006231

SHOULDER STRAP ASSY
(Superseded to 30100024531)

$65.99

$

In Stock, Qty 9

0

77

Echo 900242-05014

SCREW 5×14

$0.99

$

In Stock, Qty 20+

0

78

Echo 61044306230

ADAPTER
(Superseded to Discontinued)

$

$

Not available

81

Echo 898502-01130

PIN, COTTER 2×22 (PKG. OF 10)

$1.99

$

In Stock, only 3 left!

0

85

Echo 89541007930

T-WRENCH

$12.99

$

Usually ships in 2-4 days

0

87

Echo 897518-01131

TOOL, LOCKING 5×120 MM

$

$

Not available

89

Echo 895112-00330

SPANNER 8×10

$0.99

$

In Stock, Qty 6

0

100

Echo 35201505330

RETAINER

$7.99

$

In Stock, only 2 left!

0

101

Echo 90010005025

BOLT - 5×25

$3.49

$

Usually ships in 2-4 days

0

102

Echo 35209005330

PLATE
(Superseded to Discontinued)

$

$

Not available

103

Echo 35201405330

ARM, RETAINER - RIGHT
(Superseded to Discontinued)

$

$

Not available

104

Echo 35201005330

HOLDER, D.S. HOUSING
(Superseded to Discontinued)

$

$

Not available

105

Echo 35201805330

HOLDER
(Superseded to Discontinued)

$

$

Not available

106

Echo 90010006030

BOLT - 6×30
(Superseded to Discontinued)

$

$

Not available

107

Echo 35201905330

CUSHION
(Superseded to Discontinued)

$

$

Not available

108

Echo 30032303130

NUT - 5 -- CAP
(Superseded to 21041901110)

$0.99

$

In Stock, Qty 9

0

109

Echo 35201305330

ARM, HANDLE - LEFT
(Superseded to Discontinued)

$

$

Not available
