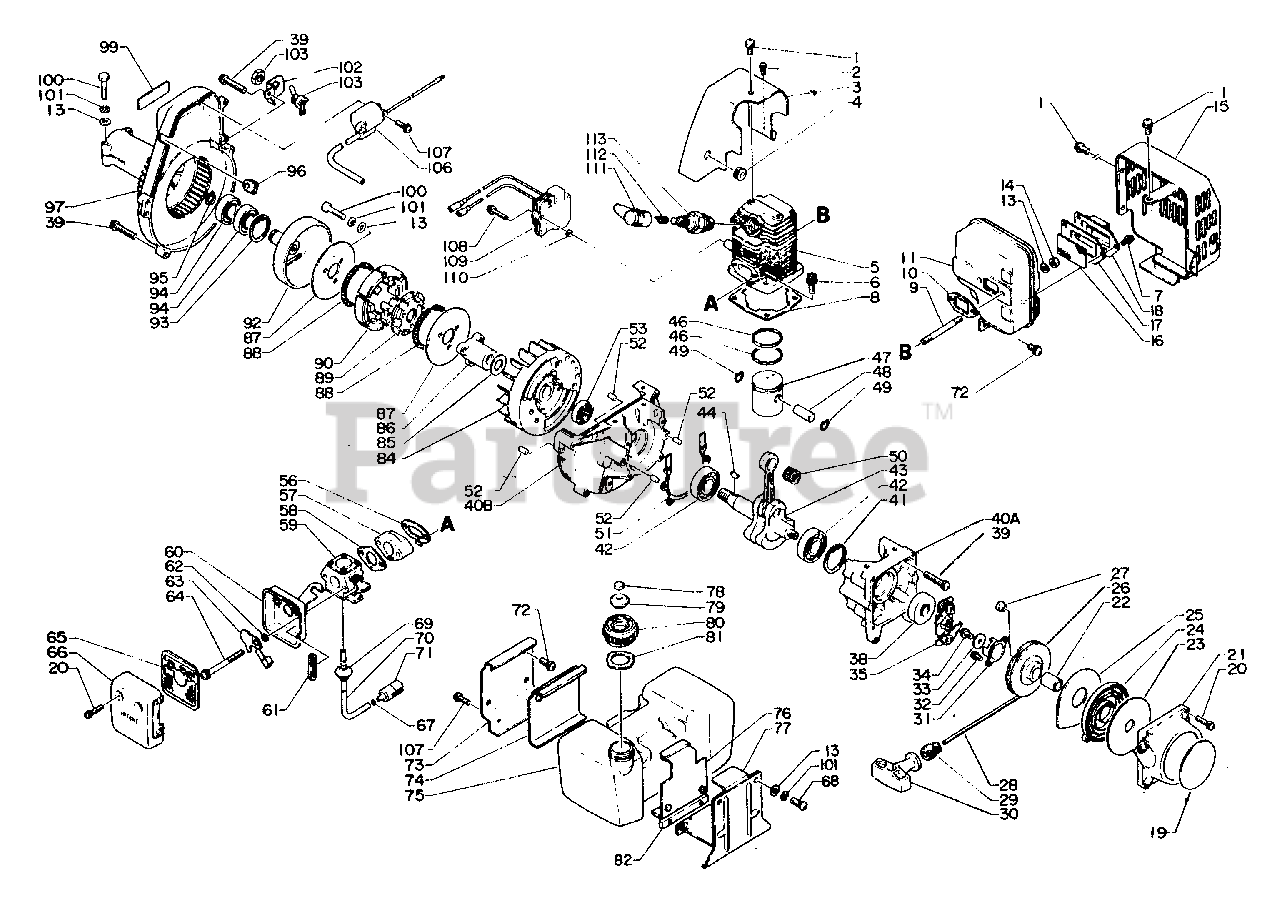

SRM-400 E - Echo String Trimmer Engine, Crankcase, Ignition, Stop Switch Parts Diagram

String Trimmer

Engine, Crankcase, Ignition, Stop Switch Parts Diagram

  • Title

1

Echo 900242-05010

SCREW 5×10

$0.99

$

In Stock, Qty 20+

0

2

Echo 900242-04010

SCREW 4×10

$0.99

$

In Stock, Qty 20+

0

3

Echo 10151406720

COVER, CYLINDER
(Superseded to Discontinued)

$

$

Not available

4

Echo 15011409130

GROMMET

$0.99

$

Usually ships in 2-4 days

0

5

Echo 10101121430

CYLINDER
(Superseded to Discontinued)

$

$

Not available

6

Echo 90016205020

BOLT 5×20

$1.49

$

In Stock, Qty 20+

0

7

Echo 90024204008

SCREW 4×8

$0.99

$

In Stock, Qty 8

0

8

Echo 10101021430

GASKET, CYLINDER
(Superseded to 10101021431)

$1.99

$

Usually ships in 2-4 days

0

9

Echo 10101405731

BOLT, STUD

$1.99

$

Usually ships in 2-4 days

0

10

Echo 14551021430

GASKET, EXHAUST
(Superseded to 14551021431)

$

$

Not available

11

Echo 14580622730

MUFFLER

$47.99

$

Usually ships in 2-4 days

0

13

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

14

Echo 433020-00830

LOCKNUT - 5
(Superseded to 90056000005)

$1.49

$

In Stock, Qty 14

0

15

Echo 14590621430

COVER, EXHAUST
(Superseded to Discontinued)

$

$

Not available

16

Echo 14586206720

SCREEN, SPARK ARRESTER

$5.49

$

In Stock, Qty 7

0

17

Echo 14586606720

GASKET, EXHAUST
(Superseded to 14586606721)

$2.49

$

Usually ships in 2-4 days

0

18

Echo 14580922730

LID, MUFFLER

$7.99

$

Usually ships in 2-4 days

0

19

Echo 89001211132

LABEL - ECHO
(Superseded to 89001211133)

$7.49

$

In Stock, only 2 left!

0

20

Echo 900242-04020

SCREW 4×20

$0.99

$

In Stock, Qty 16

0

Echo 17720006721

STARTER ASSY
(Superseded to 17720006722)

Note: Consists of 21 thru 34

$

$

Not available

21

Echo 17720906721

CASE, STARTER
(Superseded to Discontinued)

$

$

Not available

22

Echo 177216-12330

BUSHING

$1.99

$

In Stock, Qty 20+

0

23

Echo 177221-06720

PLATE, SIDE

$3.49

$

Usually ships in 2-4 days

0

24

Echo 177220-03930

SPRING, RECOIL

$21.99

$

In Stock, only 2 left!

0

25

Echo 17724206721

PLATE, SIDE
(Superseded to Discontinued)

$

$

Not available

26

Echo 177215-04130

REEL, ROPE

$25.99

$

Usually ships in 2-4 days

0

27

Echo 177246-03930

CLIP, STARTER ROPE

$0.99

$

In Stock, only 2 left!

0

28

Echo 177226-03930

ROPE, STARTER 3.5×850
(Superseded to 17722603930)

Note: RePower BULK OPTION: 99944445000

$6.99

$

In Stock, only 2 left!

0

29

Echo 17722705330

GUIDE, ROPE
(Superseded to Discontinued)

$

$

Not available

30

Echo 177228-11130

HANDLE

$6.99

$

Usually ships in 2-4 days

0

31

Echo 177243-04130

PAWL CATCHER

$12.99

$

Usually ships in 2-4 days

0

32

Echo 900241-04008

SCREW 4×8

$0.99

$

In Stock, Qty 10

0

33

Echo 177214-02830

WASHER 5.2×16×1.0

$0.99

$

In Stock, only 2 left!

0

34

Echo 90024105010

SCREW 5×10

$0.99

$

In Stock, only 3 left!

0

35

Echo 177305-06720

STARTER PAWL ASSY
(Superseded to 17730540530)

$

$

Not available

38

Echo 100213-02830

SEAL, OIL 18

$7.99

$

In Stock, only 1 left!

0

39

Echo 90024205030

SCREW 5×30

$0.99

$

In Stock, only 2 left!

0

40

Echo 10020021430

CRANKCASE KIT
(Superseded to Discontinued)

Note: Includes 52

$

$

Not available

40A

Echo 10020021430

CRANKCASE KIT
(Superseded to Discontinued)

Note: See Ref No. 40, Crankcase set, P\N 10020021430

$

$

Not available

40B

Echo 10020021430

CRANKCASE KIT
(Superseded to Discontinued)

Note: See Ref No. 40, Crankcase set, P\N 10020021430

$

$

Not available

52

Echo 10021502830

PIN, LOCATING 5×10

$0.99

$

Usually ships in 2-4 days

0

41

Echo 90070200035

RING, SNAP 35

$2.49

$

In Stock, Qty 9

0

42

Echo 90081036202

BEARING, BALL 6202

$11.99

$

In Stock, only 2 left!

0

43

Echo 10010021430

CRANKSHAFT ASSY
(Superseded to Discontinued)

$

$

Not available

44

Echo 10014212330

KEY, WOODRUFF

$1.99

$

In Stock, only 3 left!

0

46

Echo 100011-10530

RING, PISTON

$8.49

$

In Stock, only 3 left!

0

47

Echo 10001021430

PISTON
(Superseded to 10000021430)

$

$

Not available

48

Echo 100013-00410

PIN, PISTON

$8.49

$

Usually ships in 2-4 days

0

49

Echo 100015-00120

RING, SNAP 8

$0.99

$

In Stock, Qty 10

0

50

Echo 100012-12330

BEARING, NEEDLE
(Superseded to 10001212331)

$13.99

$

In Stock, only 2 left!

0

51

Echo 10024206720

GASKET, CRANKCASE
(Superseded to Discontinued)

$

$

Not available

53

Echo 100213-00310

SEAL, OIL

$6.49

$

In Stock, Qty 9

0

56

Echo 13001006720

GASKET, INTAKE
(Superseded to 13001006721)

$0.99

$

Usually ships in 2-4 days

0

57

Echo 13001706720

INSULATOR, INTAKE
(Superseded to 13001706721)

$

$

Not available

58

Echo 13001604630

GASKET, INTAKE
(Superseded to 13001604631)

$0.99

$

In Stock, Qty 8

0

59

Echo 12300021430

CARBURETOR - WA-106
(Superseded to Discontinued)

$

$

Not available

60

Echo 13030105021

CASE, AIR FILTER

Note: Includes 61

$9.49

$

Usually ships in 2-4 days

0

61

Echo 17881005020

GROMMET

$2.49

$

Usually ships in 2-4 days

0

62

Echo 178516-00830

WASHER 5.2×8×0.8T

$0.99

$

In Stock, Qty 20+

0

63

Echo 17851506720

SHUTTER, CHOKE

$3.99

$

Usually ships in 2-4 days

0

64

Echo 90024205060

SCREW 5×60

$0.99

$

In Stock, Qty 20+

0

65

Echo 13031006530

FILTER, AIR
(Superseded to Discontinued)

$

$

Not available

66

Echo 13031305020

COVER, AIR FILTER
(Superseded to Discontinued)

$

$

Not available

67

Echo 13201321430

CLIP
(Superseded to Discontinued)

$

$

Not available

68

Echo 90022005014

SCREW 5×14

$0.99

$

In Stock, Qty 7

0

69

Echo 13211504920

GROMMET

$1.99

$

In Stock, Qty 20+

0

70

Echo 13201007530

PIPE, FUEL
(Superseded to 13201007531)

Note: RePower BULK OPTION: 90014

$11.99

$

In Stock, only 2 left!

0

71

Echo 13120021330

FILTER, FUEL
(Superseded to 13120002830)

$9.99

$

In Stock, Qty 20+

0

72

Echo 900242-05014

SCREW 5×14

$0.99

$

In Stock, Qty 20+

0

73

Echo 13191021430

BRACKET, FUEL TANK
(Superseded to Discontinued)

$

$

Not available

74

Echo 13192021430

CUSHION
(Superseded to Discontinued)

$

$

Not available

75

Echo 13101021430

TANK, FUEL
(Superseded to Discontinued)

$

$

Not available

76

Echo 13192421430

CUSHION

$3.49

$

Usually ships in 2-4 days

0

77

Echo 13190722730

BRACKET
(Superseded to Discontinued)

$

$

Not available

Echo 13100406320

CAP ASSY
(Superseded to Discontinued)

Note: Consists of 78 thru 81

$

$

Not available

78

Echo 13131505020

FILTER, CHECK VALVE

$0.99

$

In Stock, Qty 8

0

79

Echo 13131406320

VENT ASSY

$6.49

$

In Stock, Qty 9

0

80

Echo 13101707430

CAP
(Superseded to 13100406320)

$

$

Not available

81

Echo 13101604920

PACKING

$2.99

$

Usually ships in 2-4 days

0

82

Echo 13191121430

SPACER
(Superseded to Discontinued)

$

$

Not available

84

Echo 15680021430

FLYWHEEL
(Superseded to Discontinued)

$

$

Not available

85

Echo 10013221430

WASHER
(Superseded to Discontinued)

$

$

Not available

86

Echo 17505621430

ADAPTER
(Superseded to Discontinued)

$

$

Not available

87

Echo 17501921430

PLATE, SIDE

$5.49

$

Usually ships in 2-4 days

0

Echo 17500021430

CLUTCH ASSY
(Superseded to 17500021431)

Note: Consists of 88 thru 90

$197.99

$

Usually ships in 2-4 days

0

88

Echo 17501803330

SPRING, CLUTCH

$2.99

$

Usually ships in 2-4 days

0

89

Echo 17501621430

BOSS, CLUTCH
(Superseded to Discontinued)

$

$

Not available

90

Echo 17500904230

SHOE, CLUTCH
(Superseded to 17500904231)

$28.99

$

In Stock, Qty 5

0

92

Echo 17500521430

DRUM, CLUTCH
(Superseded to 17500521431)

$

$

Not available

93

Echo 90070200035

RING, SNAP 35

$2.49

$

In Stock, Qty 9

0

94

Echo 90081906202

BEARING, BALL 6203

$18.99

$

Usually ships in 2-4 days

0

95

Echo 90070100015

RING, RETAINING 15

$1.49

$

In Stock, only 2 left!

0

96

Echo 15011009130

GROMMET

$0.99

$

Usually ships in 2-4 days

0

97

Echo 10151121430

CASE, FAN
(Superseded to Discontinued)

$

$

Not available

98

Echo 900242-05025

SCREW 5×25

$0.99

$

In Stock, Qty 20+

0

99

Echo 89011222730

LABEL
(Superseded to Discontinued)

$

$

Not available

100

Echo 90010005025

BOLT - 5×25

$3.49

$

Usually ships in 2-4 days

0

101

Echo 900605-00005

WASHER, SPRING 5

$0.99

$

In Stock, Qty 9

0

102

Echo 16381006720

BRACKET, SWITCH

$1.49

$

Usually ships in 2-4 days

0

103

Echo 16340006520

SWITCH, IGNITION
(Superseded to Discontinued)

$

$

Not available

106

Echo 15662621430

COIL, IGNITION
(Superseded to Discontinued)

$

$

Not available

107

Echo 900242-04014

SCREW 4×14

$0.99

$

In Stock, Qty 5

0

108

Echo 90024204022

SCREW 4×22

$0.99

$

In Stock, Qty 8

0

109

Echo 15660122730

COIL, IGNITION
(Superseded to Discontinued)

$

$

Not available

110

Echo 15011709130

WASHER

$1.99

$

Usually ships in 2-4 days

0

111

Echo 15901203433

CAP, SPARK PLUG

$8.49

$

In Stock, Qty 20+

0

112

Echo 159011-03432

TERMINAL, SPARK PLUG
(Superseded to 15901103432)

$1.99

$

In Stock, Qty 20+

0

113

Echo 15901010630

SPARK PLUG - BPM7A
(Superseded to 15901010230)

$3.99

$

In Stock, Qty 20+

0
