SRM-400 - Echo String Trimmer (SN: 04001001 - 04999999) Gear Case Parts Diagram

String Trimmer

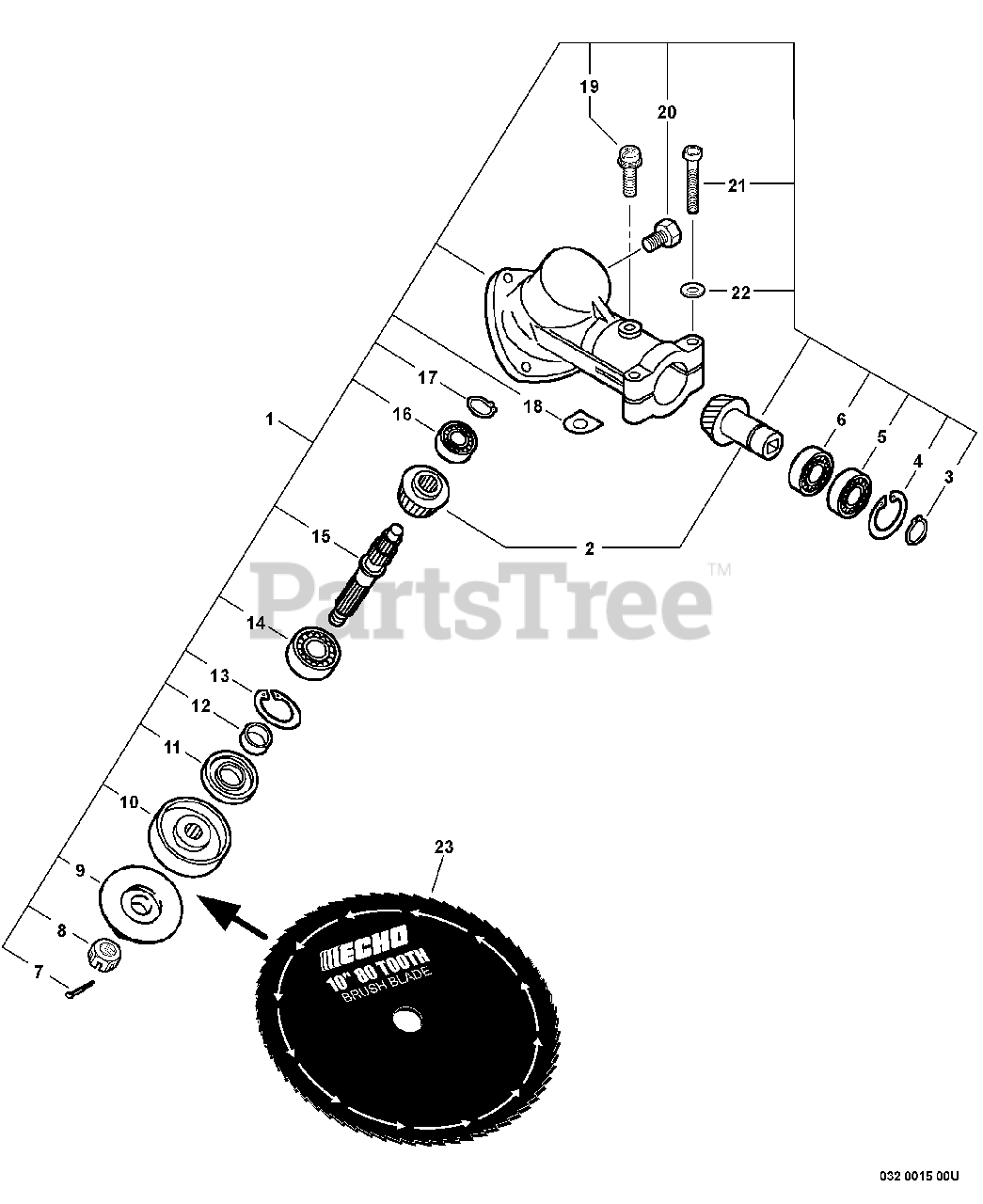

Gear Case Parts Diagram

  • Title

1

Echo 61040024533

GEAR CASE ASSY
(Superseded to 61040024534)

Note: INCLUDES ITEMS 2-22

$370.99

$

In Stock, only 1 left!

0

2

Echo 61030040430

GEAR SET

$141.99

$

Usually ships in 2-4 days

0

3

Echo 90070600012

RING, SNAP Ø12

$1.49

$

In Stock, Qty 20+

0

4

Echo 90070200028

RING, SNAP 28

$1.99

$

In Stock, Qty 20+

0

5

Echo 90080796001

BEARING, BALL 6001
(Superseded to 9405106001)

$7.49

$

In Stock, Qty 20+

0

6

Echo 90080006001

BEARING, BALL 6001
(Superseded to 90080036001)

$11.99

$

In Stock, Qty 7

0

7

Echo 900300-20022

PIN, COTTER 2×22

Note: BULK OPTION: 89850201130 - 10 PACK

$0.99

$

In Stock, Qty 14

0

8

Echo 900511-00010

NUT 10

$1.99

$

In Stock, Qty 20+

0

9

Echo C535000150

PLATE, ADAPTOR - LOWER

$10.99

$

In Stock, Qty 8

0

10

Echo 61031307132

PLATE, ADAPTOR - UPPER

$20.99

$

In Stock, only 3 left!

0

11

Echo 61041307130

SEAL, OIL 22

$6.99

$

In Stock, only 1 left!

0

12

Echo 61031507130

SPACER 11.8×15×9

$4.49

$

In Stock, only 1 left!

0

13

Echo 90070200032

RING, SNAP Ø32

$2.49

$

In Stock, only 1 left!

0

14

Echo 9403536201

BEARING, BALL - 6201 C3

$9.99

$

In Stock, only 3 left!

0

15

Echo 61031041030

SHAFT, GEAR

$109.99

$

In Stock, only 1 left!

0

16

Echo 90080036000

BEARING, BALL 6000

$14.99

$

Usually ships in 2-4 days

0

17

Echo 90070600012

RING, SNAP Ø12

$1.49

$

In Stock, Qty 20+

0

18

Echo 610239-04130

D-WASHER

$0.99

$

In Stock, Qty 20+

0

19

Echo 900242-05010

SCREW 5×10

$0.99

$

In Stock, Qty 20+

0

20

Echo 610434-50031

BOLT M8×8

$2.49

$

In Stock, Qty 7

0

21

Echo 90010005040

BOLT 5×40

$0.99

$

Usually ships in 2-4 days

0

22

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

23

Echo 69500121431

BLADE, 10" 80 TOOTH

$29.99

$

In Stock, Qty 20+

0
