SRM-400 - Echo String Trimmer (SN: 04001001 - 04999999) Gear Case Parts Diagram

String Trimmer

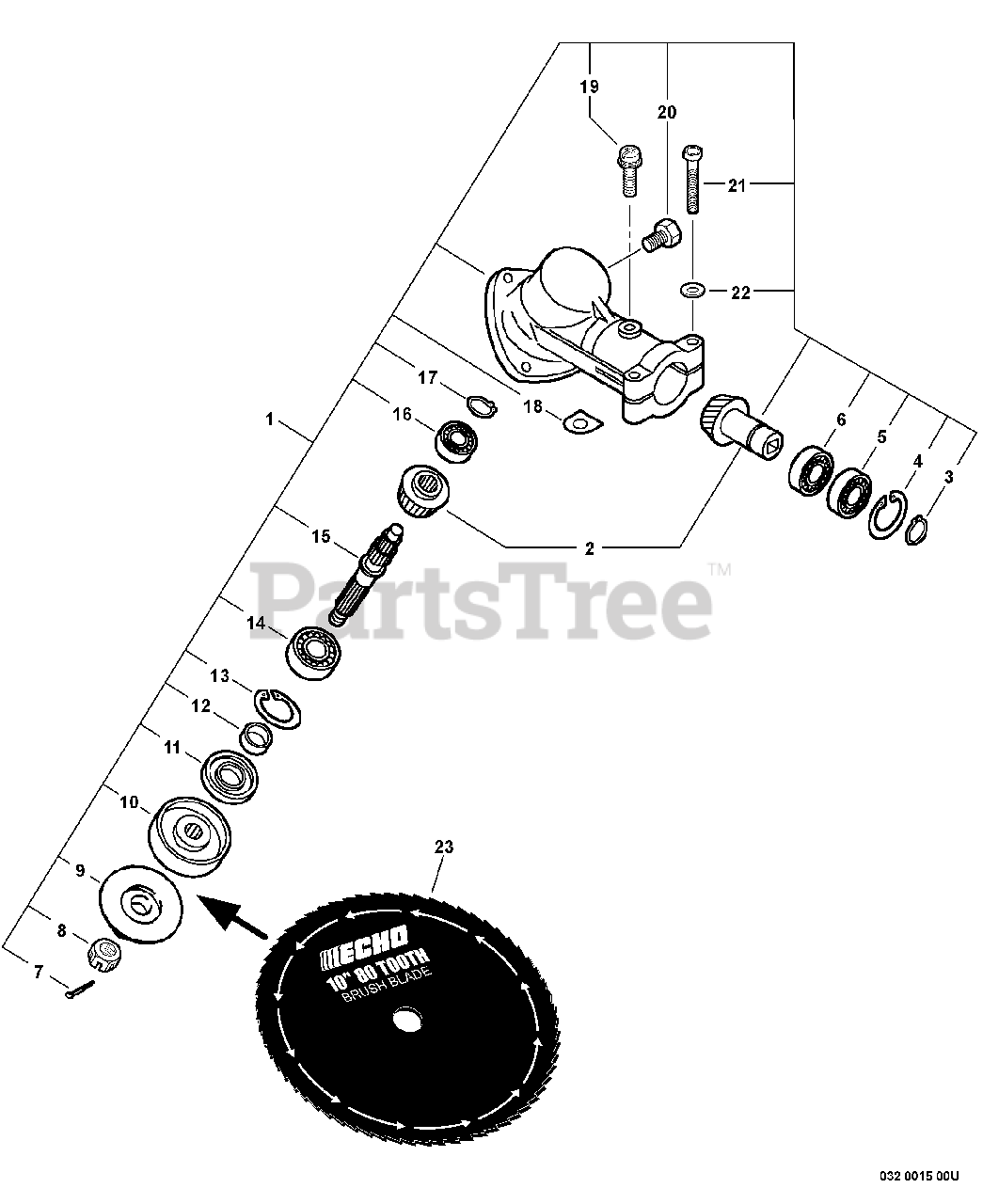

Gear Case Parts Diagram

  • Title

1

Echo 61040024533

GEAR CASE ASSY
(Superseded to 61040024534)

Note: INCLUDES ITEMS 2-22

$343.99

$

In Stock, only 1 left!

0

2

Echo 61030040430

GEAR SET - BEVEL

$131.99

$

Usually ships in 2-4 days

0

3

Echo 90070600012

RING, RETAINING - 12

$1.49

$

In Stock, Qty 9

0

4

Echo 90070200028

RING, RETAINING - 28

$1.99

$

In Stock, Qty 20+

0

5

Echo 90080796001

BEARING, BALL - 6001
(Superseded to 9405106001)

$6.99

$

In Stock, Qty 20+

0

6

Echo 90080006001

BEARING, BALL - 6001
(Superseded to 90080036001)

$10.99

$

In Stock, only 4 left!

0

7

Echo 90030020022

PIN, SPLIT - 2X22

Note: BULK OPTION: 89850201130 - 10 PACK

$0.99

$

In Stock, Qty 20+

0

8

Echo 90051100010

NUT - 10 -- LEFT HAND

$1.49

$

In Stock, Qty 20+

0

9

Echo C535000150

ADAPTOR, BLADE - LOWER

$10.99

$

In Stock, Qty 20+

0

10

Echo 61031307132

ADAPTOR, BLADE - UPPER

$19.99

$

In Stock, only 4 left!

0

11

Echo 61041307130

SEAL, OIL

$6.49

$

In Stock, only 2 left!

0

12

Echo 61031507130

SPACER

$4.49

$

In Stock, Qty 11

0

13

Echo 90070200032

RING, RETAINING - 32

$1.99

$

In Stock, Qty 11

0

14

Echo 9403536201

BEARING, BALL - 6201

$8.99

$

In Stock, Qty 19

0

15

Echo 61031041030

GEAR - SHAFT

$101.99

$

In Stock, only 1 left!

0

16

Echo 90080036000

BEARING, BALL - 6000

$12.99

$

Usually ships in 2-4 days

0

17

Echo 90070600012

RING, RETAINING - 12

$1.49

$

In Stock, Qty 9

0

18

Echo 61023904130

SHIM

$0.99

$

In Stock, Qty 20+

0

19

Echo 90024205010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

20

Echo 61043450031

BOLT - 8X8

$1.99

$

In Stock, Qty 20+

0

21

Echo 90010005040

BOLT - 5X40

$0.99

$

In Stock, only 4 left!

0

22

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

23

Echo 69500121431

BLADE, 25mm ID - 80 TOOTH -- 10" (25cm)

$25.99

$

In Stock, only 1 left!

0
