SRM-400 - Echo String Trimmer (SN: 04001001 - 04999999) Handles, Throttle Control Parts Diagram

String Trimmer

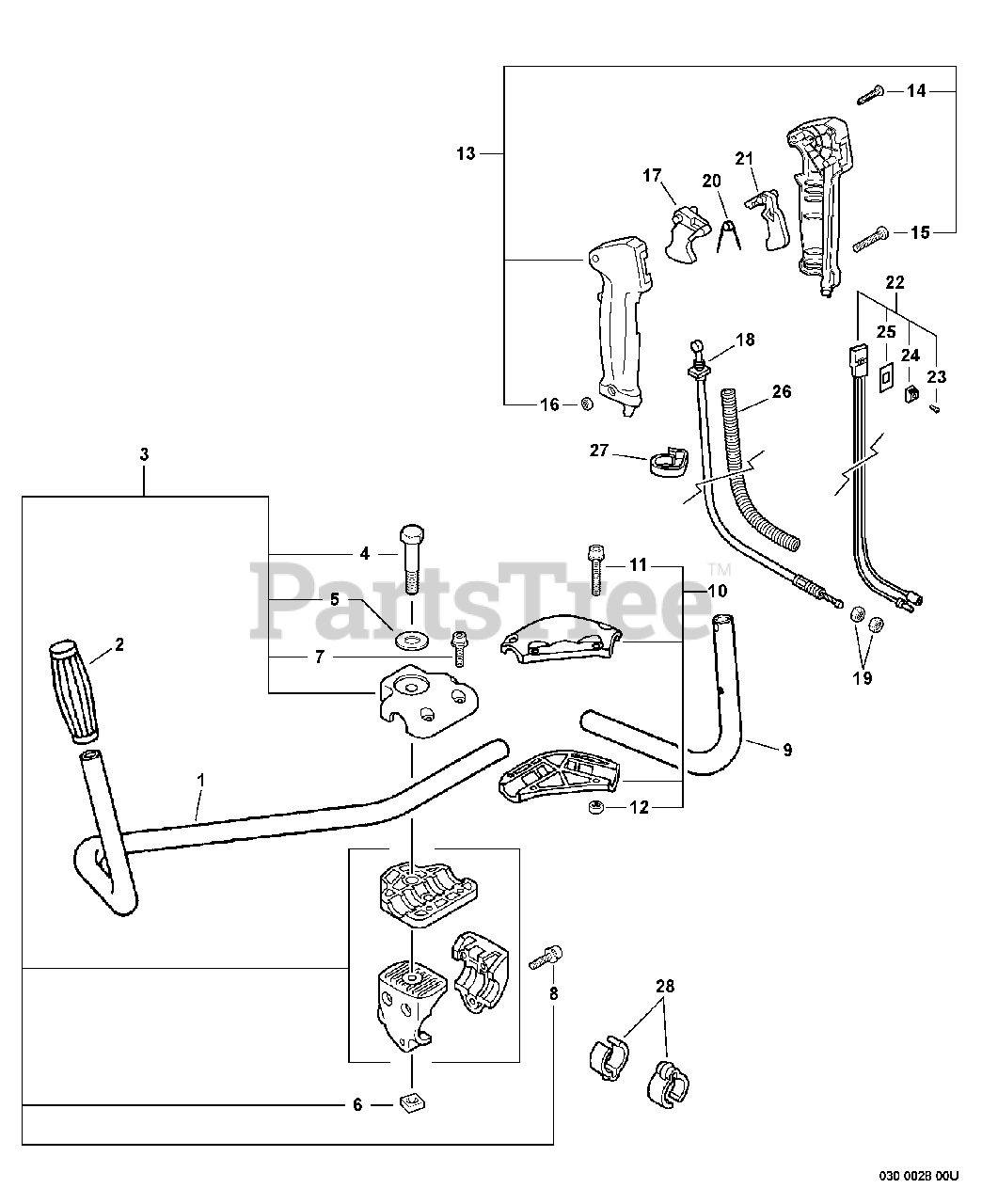

Handles, Throttle Control Parts Diagram

  • Title

1

Echo 35101052931

HANDLEBAR, LEFT

$75.99

$

In Stock, only 2 left!

0

2

Echo 35131122430

GRIP, HANDLE
(Superseded to 35131122431)

$6.49

$

In Stock, only 3 left!

0

3

Echo 35130152930

HANDLE BRACKET KIT
(Superseded to P021012830)

Note: INCLUDES ITEMS 4-8

$103.99

$

Usually ships in 2-4 days

0

4

Echo 35142152130

BOLT 8×55

$3.49

$

Usually ships in 2-4 days

0

5

Echo 60501454230

WASHER 8

$4.49

$

Usually ships in 2-4 days

0

6

Echo 90056550008

NUT 8×1.25

$1.49

$

Usually ships in 2-4 days

0

7

Echo 90016205020

BOLT 5×20

$1.49

$

In Stock, Qty 20+

0

8

Echo 90016205030

BOLT 5×30

$1.49

$

In Stock, only 2 left!

0

9

Echo 35121452931

HANDLEBAR, RIGHT

$50.99

$

Usually ships in 2-4 days

0

10

Echo P021012780

BRACKET ASSY, HANDLE
(Superseded to P021012781)

Note: Includes ITEMS 11-12

$43.99

$

Usually ships in 2-4 days

0

11

Echo 90016205020

BOLT 5×20

$1.49

$

In Stock, Qty 20+

0

12

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

13

Echo 351102-47530

CONTROL HANDLE KIT

Note: Includes ITEMS 14-16

$41.99

$

In Stock, only 2 left!

0

14

Echo 900246-03025

SCREW 3×25

$0.99

$

Usually ships in 2-4 days

0

15

Echo 900220-05030

SCREW 5×30

$0.99

$

Usually ships in 2-4 days

0

16

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

17

Echo 178010-05960

TRIGGER, THROTTLE

$6.49

$

In Stock, only 2 left!

0

18

Echo V430000340

CABLE, THROTTLE

$28.99

$

In Stock, only 2 left!

0

19

Echo 900502-00006

NUT M6

$0.99

$

In Stock, Qty 11

0

20

Echo 178013-35631

SPRING, TORSION

$2.99

$

In Stock, Qty 5

0

21

Echo 178012-05960

LOCKOUT, THROTTLE

$6.99

$

In Stock, only 2 left!

0

22

Echo A440000240

SWITCH, ON-OFF

Note: INCLUDES ITEMS 23-25

$17.99

$

In Stock, only 2 left!

0

23

Echo 9154503010

SCREW 3×10

$0.99

$

In Stock, Qty 20+

0

24

Echo 16341049231

KNOB, SWITCH - ORANGE

$4.99

$

In Stock, Qty 19

0

25

Echo 89015712330

LABEL, SWITCH

$3.99

$

In Stock, only 1 left!

0

26

Echo 17812743230

TUBE, FLEXIBLE 7×820

$6.49

$

Usually ships in 2-4 days

0

27

Echo 15911209961

CLIP

$4.99

$

Usually ships in 2-4 days

0

28

Echo 22492452930

CLIP 28 MM

$10.99

$

Usually ships in 2-4 days

0
