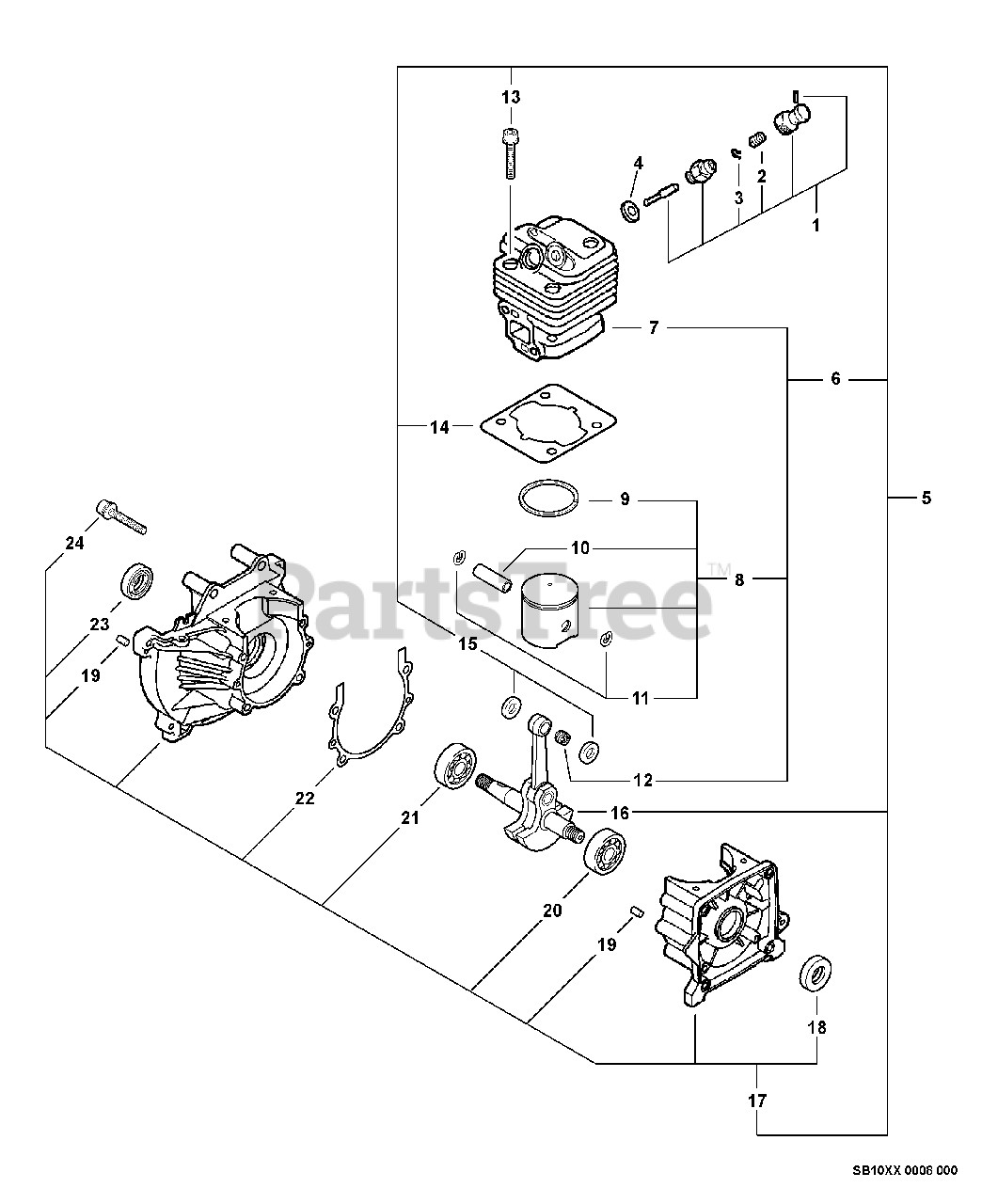

SRM-400 U - Echo Brush Cutter (SN: S04703004774 - S04703999999) Engine, Short Block -- SB10XX, Decompression Assembly Parts Diagram

Brush Cutter

Engine, Short Block -- SB10XX, Decompression Assembly Parts Diagram

  • Title

1

Echo A014000000

DECOMPRESSION ASSY

Note: INCLUDES ITEMS 2-3

$72.99

$

In Stock, only 1 left!

0

2

Echo 10111337530

SPRING

$1.49

$

Usually ships in 2-4 days

0

3

Echo P022002110

CLIP

$1.49

$

Usually ships in 2-4 days

0

4

Echo 15902537530

WASHER
(Superseded to V109000150)

$1.99

$

Usually ships in 2-4 days

0

5

Echo SB10??

SHORT BLOCK

Note: INCLUDES ITEMS 6-24

$

$

Currently unavailable

6

Echo P021014490

CYLINDER/PISTON KIT

Note: INCLUDES ITEMS 7-12

$261.99

$

Usually ships in 2-4 days

0

7

Echo A130000230

CYLINDER

$186.99

$

Usually ships in 2-4 days

0

8

Echo P021014260

PISTON KIT
(Superseded to P021014261)

Note: INCLUDES ITEMS 9-11

$84.99

$

In Stock, only 1 left!

0

9

Echo 10001110530

RING, PISTON

$8.49

$

In Stock, only 3 left!

0

10

Echo V608000000

PIN, PISTON

$6.99

$

Usually ships in 2-4 days

0

11

Echo V580000010

RING, RETAINING - 8

$0.99

$

Usually ships in 2-4 days

0

12

Echo 10001212331

BEARING, NEEDLE

$13.99

$

In Stock, only 2 left!

0

13

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

14

Echo V100000040

GASKET, CYLINDER

$3.99

$

In Stock, only 1 left!

0

15

Echo V307000060

WASHER - 10

$7.99

$

Usually ships in 2-4 days

0

16

Echo A011000120

CRANKSHAFT ASSY

$260.99

$

In Stock, only 1 left!

0

17

Echo P021002471

CRANKCASE KIT

Note: Includes ITEMS 17-24

$235.99

$

Usually ships in 2-4 days

0

18

Echo 10021305530

SEAL, OIL

$7.99

$

In Stock, Qty 15

0

19

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 5

0

20

Echo 9403536201

BEARING, BALL - 6201

$9.99

$

In Stock, only 3 left!

0

21

Echo 90081036202

BEARING, BALL - 6202

$11.99

$

In Stock, only 2 left!

0

22

Echo V102000001

GASKET, CRANKCASE

$1.99

$

Usually ships in 2-4 days

0

23

Echo 10021300310

SEAL, OIL

$6.49

$

In Stock, Qty 9

0

24

Echo 90016205035

SCREW - 5X35

$1.99

$

In Stock, Qty 17

0
