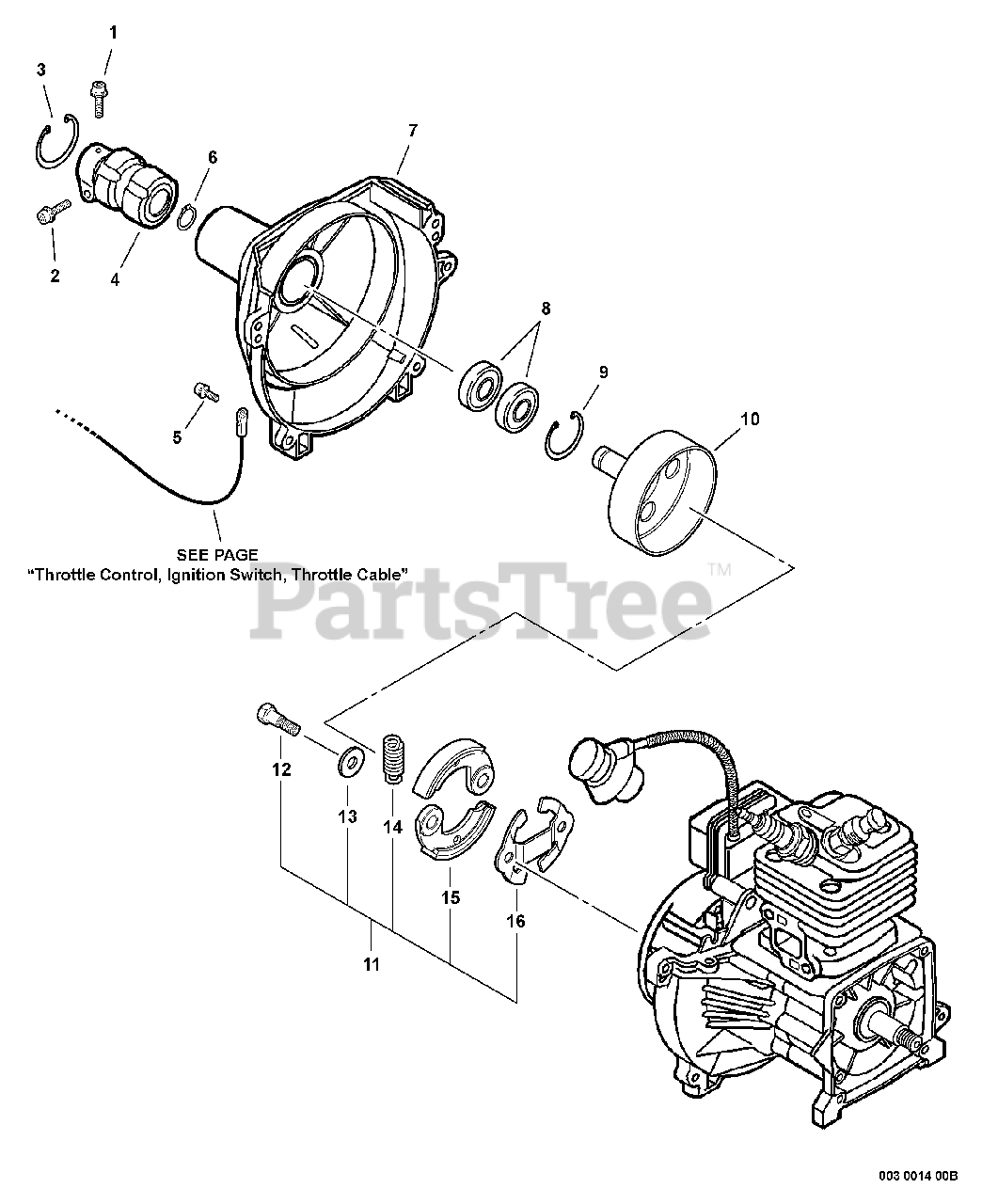

SRM-400 U - Echo Brush Cutter (SN: S04703004774 - S04703999999) Fan Cover, Clutch Parts Diagram

Brush Cutter

Fan Cover, Clutch Parts Diagram

  • Title

1

Echo 90016205012

SCREW - 5X12

$0.99

$

In Stock, Qty 20+

0

2

Echo 90016205028

SCREW - 5X28

$1.99

$

In Stock, Qty 20+

0

3

Echo 90070200045

RING, RETAINING - 45

$1.99

$

In Stock, only 2 left!

0

4

Echo V420000980

CUSHION

$26.99

$

Usually ships in 2-4 days

0

5

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

6

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 15

0

7

Echo A172000150

CASE, FAN - ORANGE

$62.99

$

Usually ships in 2-4 days

0

8

Echo 9405106001

BEARING, BALL - 6001
(Superseded to 9406106001)

$6.49

$

In Stock, Qty 20+

0

9

Echo 90070200028

RING, RETAINING - 28

$1.49

$

In Stock, Qty 18

0

10

Echo A556000181

DRUM, CLUTCH

$75.99

$

Usually ships in 2-4 days

0

11

Echo P02116610

CLUTCH ASSY

Note: Includes ITEMS 12-16

$

$

Currently unavailable

12

Echo A557000000

BOLT, CLUTCH

$7.49

$

In Stock, only 2 left!

0

13

Echo 17504803920

WASHER

$1.49

$

In Stock, Qty 5

0

14

Echo V451000480

SPRING

$3.49

$

Usually ships in 2-4 days

0

15

Echo A553000040

SHOE, CLUTCH

$12.99

$

Usually ships in 2-4 days

0

16

Echo V453000070

PLATE, SPRING
(Superseded to Discontinued)

$

$

Not available
