SRM-410 U - Echo Brush Cutter (SN: S05403001001 - S05403999999) Carburetor -- WYK-226A Parts Diagram

Brush Cutter

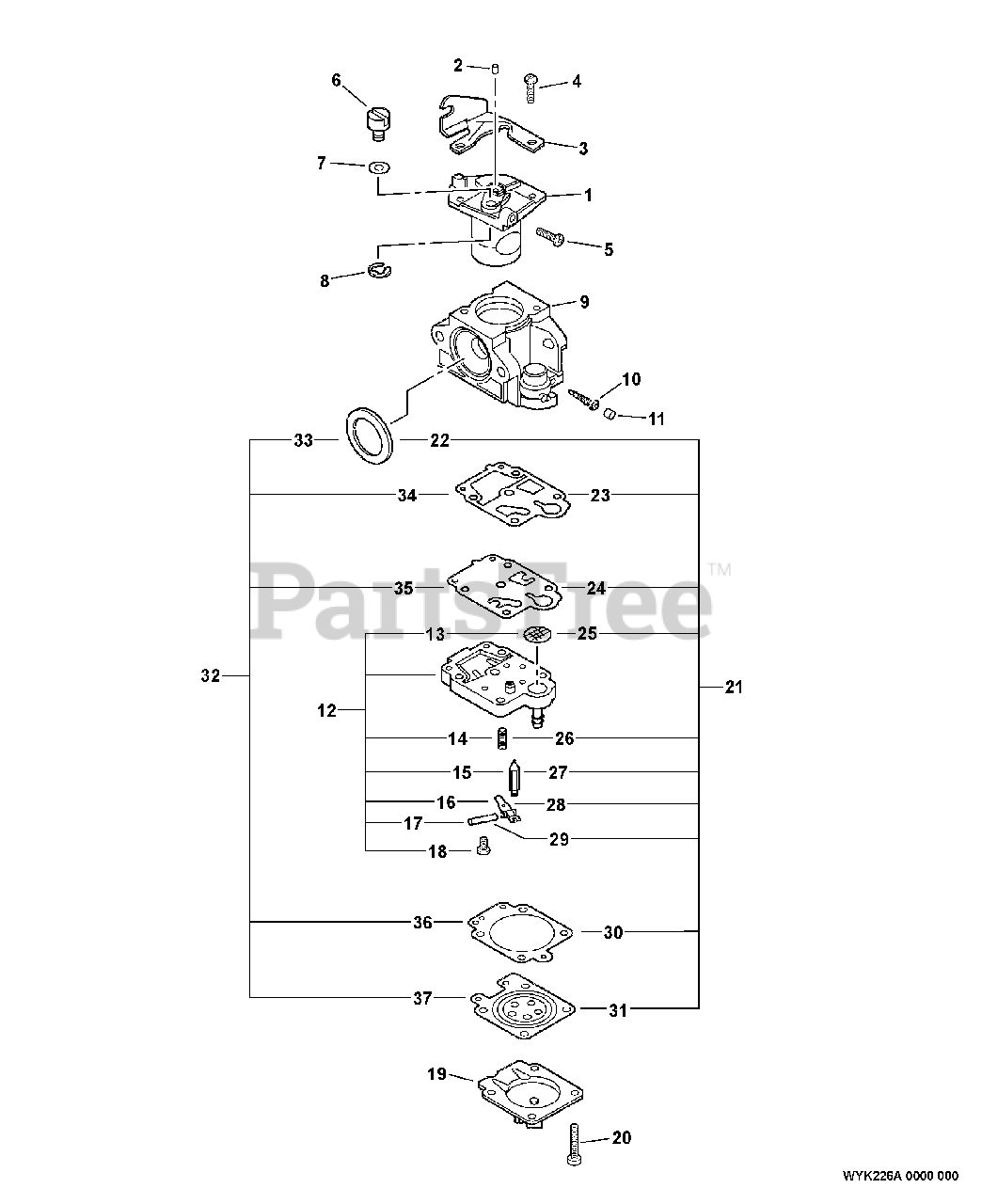

Carburetor -- WYK-226A Parts Diagram

  • Title

Echo A021001171

CARBURETOR - WYK-226A
(Superseded to A021001172)

$132.99

$

In Stock, only 2 left!

0

1

THROTTLE VALVE ASSY

Note: NOT AVAILABLE SEPARATELY

$

$

Not available

2

Echo A259000000

PLUG

$0.99

$

Usually ships in 2-4 days

0

3

Echo P003000180

BRACKET, THROTTLE CABLE

$6.99

$

In Stock, only 2 left!

0

4

Echo 12311440630

SCREW

$6.99

$

In Stock, only 2 left!

0

5

Echo 12313440030

SCREW

$1.49

$

Usually ships in 2-4 days

0

6

Echo 12317245130

SWIVEL

$2.49

$

Usually ships in 2-4 days

0

7

Echo 12314954230

WASHER

$0.99

$

Usually ships in 2-4 days

0

8

Echo 12317307930

E-RING

$1.49

$

In Stock, only 1 left!

0

9

BODY, CARBURETOR

Note: NOT AVAILABLE SEPARATELY

$

$

Not available

10

Echo P003001130

NEEDLE, HIGH SPEED

$12.99

$

Usually ships in 2-4 days

0

11

Echo A259000000

PLUG

$0.99

$

Usually ships in 2-4 days

0

12

Echo P003001490

BODY ASSY, PUMP

Note: Includes ITEMS 12-18

$33.99

$

Usually ships in 2-4 days

0

13

STRAINER

$

$

Not available

14

SPRING, METERING LEVER

$

$

Not available

15

VALVE, INLET NEEDLE

$

$

Not available

16

LEVER, METERING

$

$

Not available

17

PIN, METERING LEVER

$

$

Not available

18

Echo 12313905560

SCREW

$0.99

$

Usually ships in 2-4 days

0

19

Echo P003001500

COVER, PUMP

$8.49

$

Usually ships in 2-4 days

0

20

Echo 12314444330

SCREW

$1.99

$

Usually ships in 2-4 days

0

21

Echo P003000660

REPAIR KIT
(Superseded to P003001120)

Note: INCLUDES ITEMS 22-31

$26.99

$

In Stock, Qty 20+

0

22

SEAL

$

$

Not available

23

GASKET, PUMP

$

$

Not available

24

DIAPHRAGM, PUMP

$

$

Not available

25

STRAINER

$

$

Not available

26

SPRING, METERING LEVER

$

$

Not available

27

VALVE, INLET NEEDLE

$

$

Not available

28

LEVER, METERING

$

$

Not available

29

PIN, METERING LEVER

$

$

Not available

30

GASKET, DIAPHRAGM

$

$

Not available

31

DIAPHRAGM, METERING

$

$

Not available

32

Echo P003000650

GASKET / DIAPHRAGM KIT
(Superseded to P003001120)

Note: INCLUDES ITEMS 33-37

$26.99

$

In Stock, Qty 20+

0

33

SEAL

$

$

Not available

34

GASKET, PUMP

$

$

Not available

35

DIAPHRAGM, PUMP

$

$

Not available

36

GASKET, DIAPHRAGM

$

$

Not available

37

DIAPHRAGM, METERING

$

$

Not available
