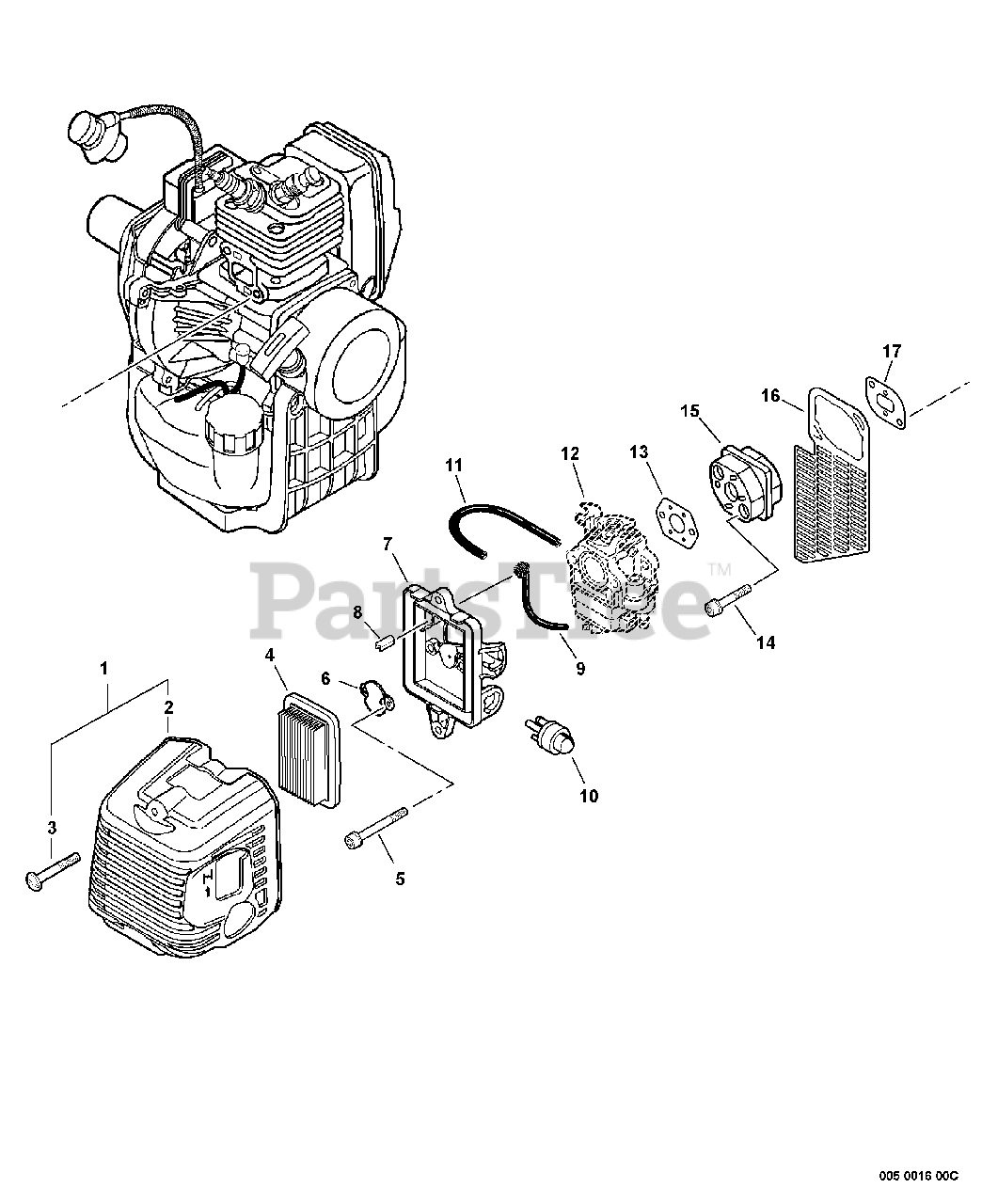

SRM-410 U - Echo Brush Cutter (SN: S05403001001 - S05403999999) Intake Parts Diagram

Brush Cutter

Intake Parts Diagram

  • Title

1

Echo P021012110

AIR FILTER COVER ASSY

Note: INCLUDES ITEMS 2-3

$22.99

$

In Stock, only 3 left!

0

2

Echo A232000390

COVER, AIR FILTER

$17.99

$

Usually ships in 2-4 days

0

3

Echo V253000100

SCREW - 5X20

$2.49

$

Usually ships in 2-4 days

0

4

Echo A226000360

FILTER, AIR
(Superseded to A226000361)

$27.99

$

In Stock, Qty 12

0

5

Echo 90010505055

SCREW - 5X55

$1.99

$

In Stock, Qty 20+

0

6

Echo A244000010

PLATE, PREVENT

$3.49

$

Usually ships in 2-4 days

0

7

Echo P021009590

CASE, AIR FILTER

$15.99

$

In Stock, only 3 left!

0

8

Echo A239000050

PIPE - INTAKE

$3.49

$

Usually ships in 2-4 days

0

9

Echo 13201239331

PIPE - VENT
(Superseded to 13201239332)

$15.99

$

In Stock, only 4 left!

0

10

Echo 12318139130

PUMP, PURGE

$8.49

$

In Stock, Qty 20+

0

11

Echo V471001560

PIPE - 3X5X80 -- BLACK
(Superseded to V471001561)

Note: RePower BULK OPTION: 90014

$1.99

$

In Stock, Qty 13

0

12

------------------

CARBURETOR

Note: See Carburetor Diagram For Details

$

$

Not available

13

Echo V103000080

GASKET, INTAKE

$1.99

$

In Stock, Qty 20+

0

14

Echo 90010605025

SCREW - 5X25

$1.49

$

In Stock, Qty 20+

0

15

Echo A200000060

INSULATOR, INTAKE

$17.99

$

In Stock, only 3 left!

0

16

Echo A128000060

GUARD, DEBRIS

$7.49

$

Usually ships in 2-4 days

0

17

Echo V103000070

GASKET, INTAKE

$1.99

$

In Stock, Qty 5

0
